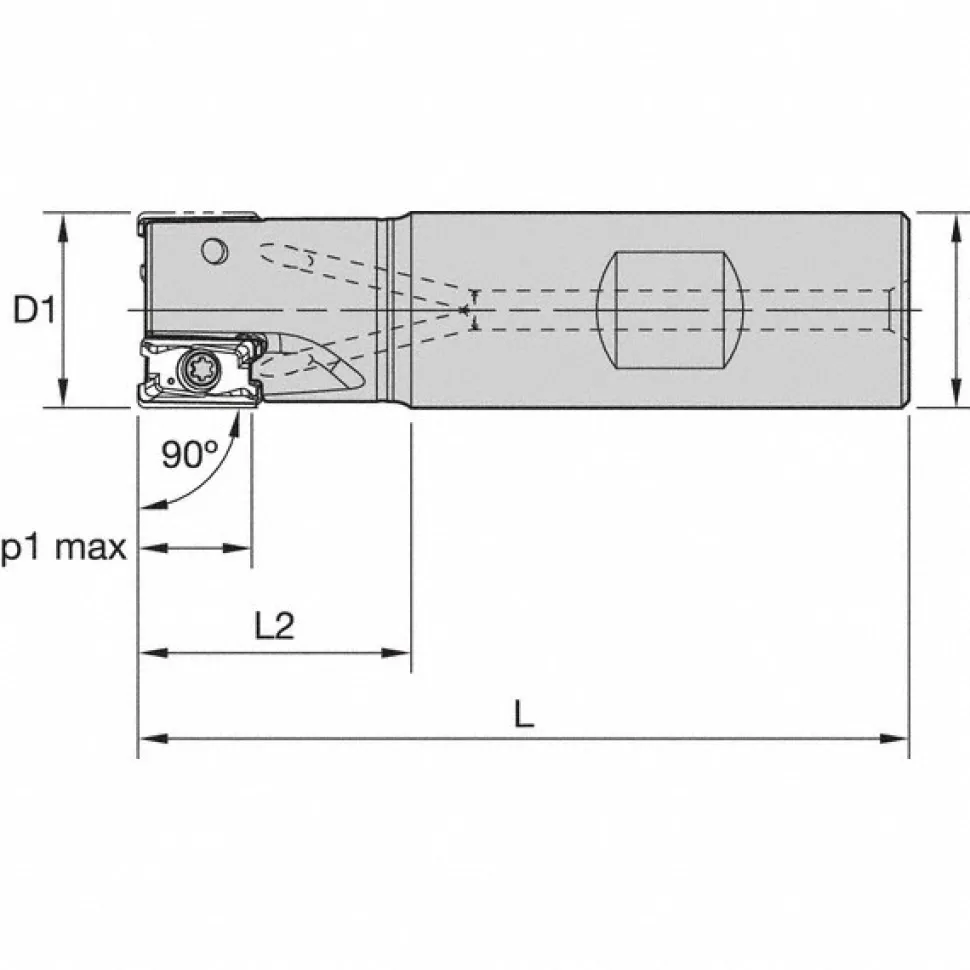

Indexable Square-Shoulder End Mill: M4D100L1103W100L175, 1″ Cut Dia, 11 mm Max Depth of Cut, 1″ Dia Weldon Flat Shank
Original price was: 569,00 $.124,89 $Current price is: 124,89 $.
Specifications
| Cutting Diameter (Decimal Inch): 1.0000 in | Cutting Diameter: 1 |
| Overall Length (Decimal Inch): 4.0300 | Maximum Depth of Cut (mm): 11.00 |
| Shank Type: Weldon Flat | Shank Diameter (Decimal Inch): 1.0000 |
| Shank Diameter (Inch): 1 | Insert Holding Method: Screw |
| Tool Material: Steel | Series: Mill 4-11 |
| Lead Angle: 0 | Shank Length (Decimal Inch): 2.2800 |
| Shank Length (mm): 57.91 | Head Length (Inch): 1-3/4 |
| Head Length (Decimal Inch): 1.7500 | Maximum RPM: 33900 |
| Coolant Hole Diameter (mm): 4.00 | Insert Compatibility: LNGU110408SRGE |
| ISO Number: M4D100L1103W100L175 | UNSPSC Code: 27112803 |
| Number Of Flutes: 3 | Number Of Cutter Inserts: 3 |
| Coolant Through: Yes | Country of Origin: UNITED STATES |
| Cutting Diameter (Decimal Inch): 1.0000 in | |
| Cutting Diameter: 1 | |
| Overall Length (Decimal Inch): 4.0300 | |
| Maximum Depth of Cut (mm): 11.00 | |
| Shank Type: Weldon Flat | |
| Shank Diameter (Decimal Inch): 1.0000 | |
| Shank Diameter (Inch): 1 | |
| Insert Holding Method: Screw | |
| Tool Material: Steel | |
| Series: Mill 4-11 | |
| Lead Angle: 0 | |
| Shank Length (Decimal Inch): 2.2800 | |
| Shank Length (mm): 57.91 | |
| Head Length (Inch): 1-3/4 | |
| Head Length (Decimal Inch): 1.7500 | |
| Maximum RPM: 33900 | |
| Coolant Hole Diameter (mm): 4.00 | |
| Insert Compatibility: LNGU110408SRGE | |
| ISO Number: M4D100L1103W100L175 | |
| UNSPSC Code: 27112803 | |
| Number Of Flutes: 3 | |
| Number Of Cutter Inserts: 3 | |
| Coolant Through: Yes | |
| Country of Origin: UNITED STATES |
| MSC# | 38159356 |
| Mfr# | 6140051 |
