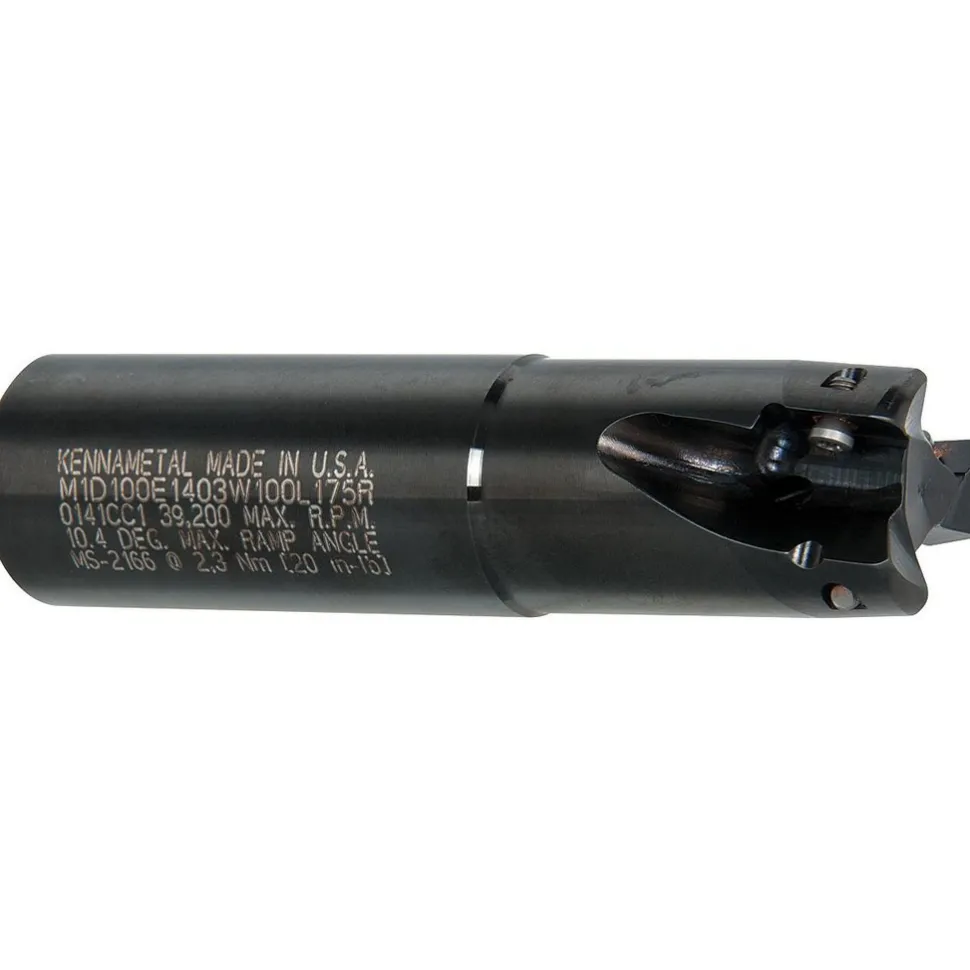

Indexable Square-Shoulder End Mill: M1D100E1403W100L175R, 1″ Cut Dia, 14.73 mm Max Depth of Cut, 1″ Dia Weldon Flat Shank
130,89 $
Specifications
| Cutting Diameter (Decimal Inch): 1.0000 in | Cutting Diameter: 1 |
| Overall Length (Decimal Inch): 4.0100 | Overall Length (mm): 101.86 |
| Maximum Depth of Cut (mm): 14.73 | Maximum Depth of Cut (Decimal Inch): 0.5800 |
| Cutter Style: Mill 1 | Shank Type: Weldon Flat |
| Shank Diameter (Decimal Inch): 1.0000 | Shank Diameter (Inch): 1 |
| Shank Diameter (mm): 25.40 | Insert Holding Method: Screw |
| Lead Angle: 0 | Shank Length (Decimal Inch): 2.2799 |
| Shank Length (mm): 57.91 | Head Length (Decimal Inch): 1.7300 |
| Head Length (mm): 43.95 | Maximum RPM: 39200 |
| Coolant Hole Diameter (mm): 6.35 | Coolant Hole Diameter (Inch): 1/4 |
| Coolant Hole Diameter (Decimal Inch): 0.2500 | Insert Compatibility: EP14..; EC14.. |
| ISO Number: M1D100E1403W100L175R | UNSPSC Code: 27112803 |
| Number Of Flutes: 3 | Number Of Cutter Inserts: 3 |
| Coolant Through: Yes | Country of Origin: Brazil |
| Cutting Diameter (Decimal Inch): 1.0000 in | |
| Cutting Diameter: 1 | |
| Overall Length (Decimal Inch): 4.0100 | |
| Overall Length (mm): 101.86 | |
| Maximum Depth of Cut (mm): 14.73 | |
| Maximum Depth of Cut (Decimal Inch): 0.5800 | |
| Cutter Style: Mill 1 | |
| Shank Type: Weldon Flat | |
| Shank Diameter (Decimal Inch): 1.0000 | |
| Shank Diameter (Inch): 1 | |
| Shank Diameter (mm): 25.40 | |
| Insert Holding Method: Screw | |
| Lead Angle: 0 | |
| Shank Length (Decimal Inch): 2.2799 | |
| Shank Length (mm): 57.91 | |
| Head Length (Decimal Inch): 1.7300 | |
| Head Length (mm): 43.95 | |
| Maximum RPM: 39200 | |
| Coolant Hole Diameter (mm): 6.35 | |
| Coolant Hole Diameter (Inch): 1/4 | |
| Coolant Hole Diameter (Decimal Inch): 0.2500 | |
| Insert Compatibility: EP14..; EC14.. | |
| ISO Number: M1D100E1403W100L175R | |
| UNSPSC Code: 27112803 | |
| Number Of Flutes: 3 | |
| Number Of Cutter Inserts: 3 | |
| Coolant Through: Yes | |
| Country of Origin: Brazil |
| MSC# | 01032242 |
| Mfr# | 2624199 |
| Big Book# | 710 |
