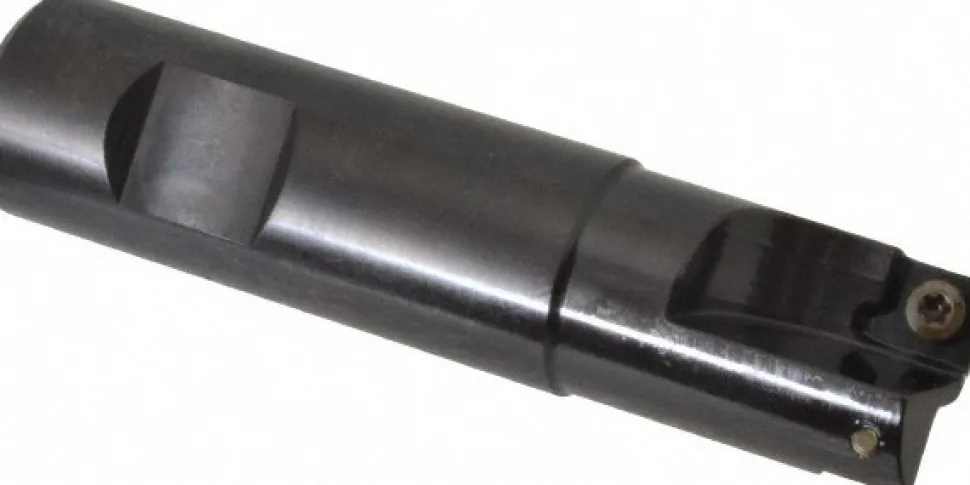

Indexable Square-Shoulder End Mill: KIPR075SD260, 3/4″ Cut Dia, 7.11 mm Max Depth of Cut, 3/4″ Dia Weldon Flat Shank
Original price was: 491,00 $.132,99 $Current price is: 132,99 $.
Specifications
| Cutting Diameter (Decimal Inch): 0.7500 in | Cutting Diameter: 3/4 |
| Overall Length (Decimal Inch): 3.2500 | Overall Length (Inch): 3-1/4 |
| Maximum Depth of Cut (mm): 7.11 | Maximum Depth of Cut (Decimal Inch): 0.2800 |
| Cutter Style: KIPR | Shank Type: Weldon Flat |
| Shank Diameter (Decimal Inch): 0.7500 | Shank Diameter (Inch): 3/4 |
| Shank Diameter (mm): 19.05 | Insert Holding Method: Screw |
| Lead Angle: 0 | Shank Length (Decimal Inch): 2.0299 |
| Shank Length (mm): 51.56 | Head Length (Decimal Inch): 1.2200 |
| Maximum RPM: 10500 | Insert Compatibility: SDEB 2615. |
| ISO Number: KIPR075SD260 | UNSPSC Code: 27112803 |
| Number Of Flutes: 2 | Number Of Cutter Inserts: 2 |
| Coolant Through: No | |
| Cutting Diameter (Decimal Inch): 0.7500 in | |
| Cutting Diameter: 3/4 | |
| Overall Length (Decimal Inch): 3.2500 | |
| Overall Length (Inch): 3-1/4 | |
| Maximum Depth of Cut (mm): 7.11 | |
| Maximum Depth of Cut (Decimal Inch): 0.2800 | |
| Cutter Style: KIPR | |
| Shank Type: Weldon Flat | |
| Shank Diameter (Decimal Inch): 0.7500 | |
| Shank Diameter (Inch): 3/4 | |
| Shank Diameter (mm): 19.05 | |
| Insert Holding Method: Screw | |
| Lead Angle: 0 | |
| Shank Length (Decimal Inch): 2.0299 | |
| Shank Length (mm): 51.56 | |
| Head Length (Decimal Inch): 1.2200 | |
| Maximum RPM: 10500 | |
| Insert Compatibility: SDEB 2615. | |
| ISO Number: KIPR075SD260 | |
| UNSPSC Code: 27112803 | |
| Number Of Flutes: 2 | |
| Number Of Cutter Inserts: 2 | |
| Coolant Through: No |
| MSC# | 00691543 |
| Mfr# | 1023642 |
| Big Book# | 716 |
