Sale!

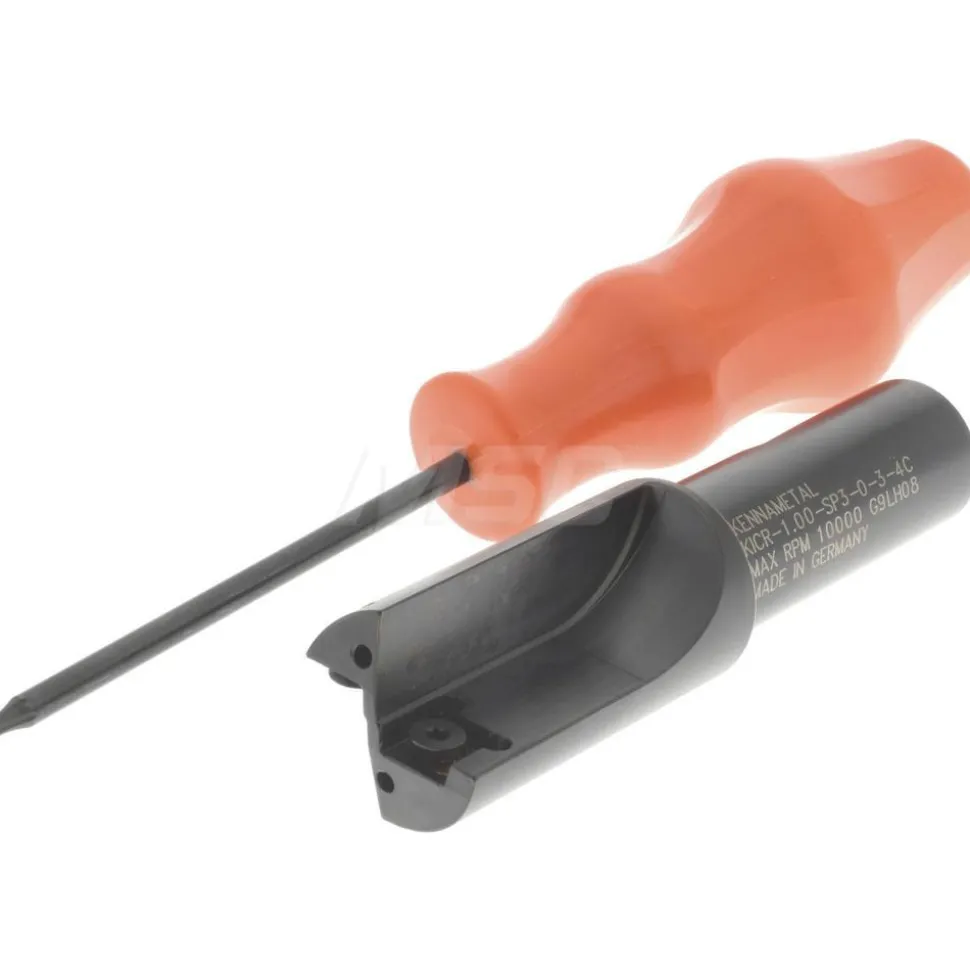

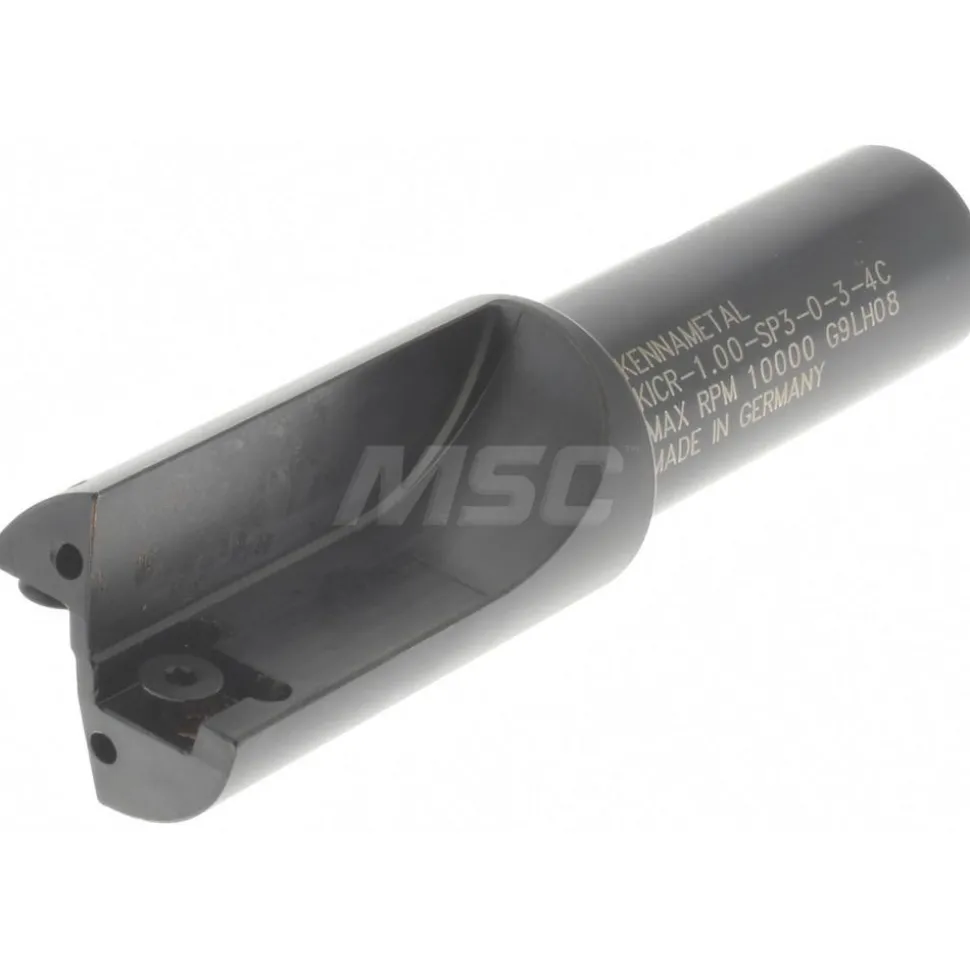

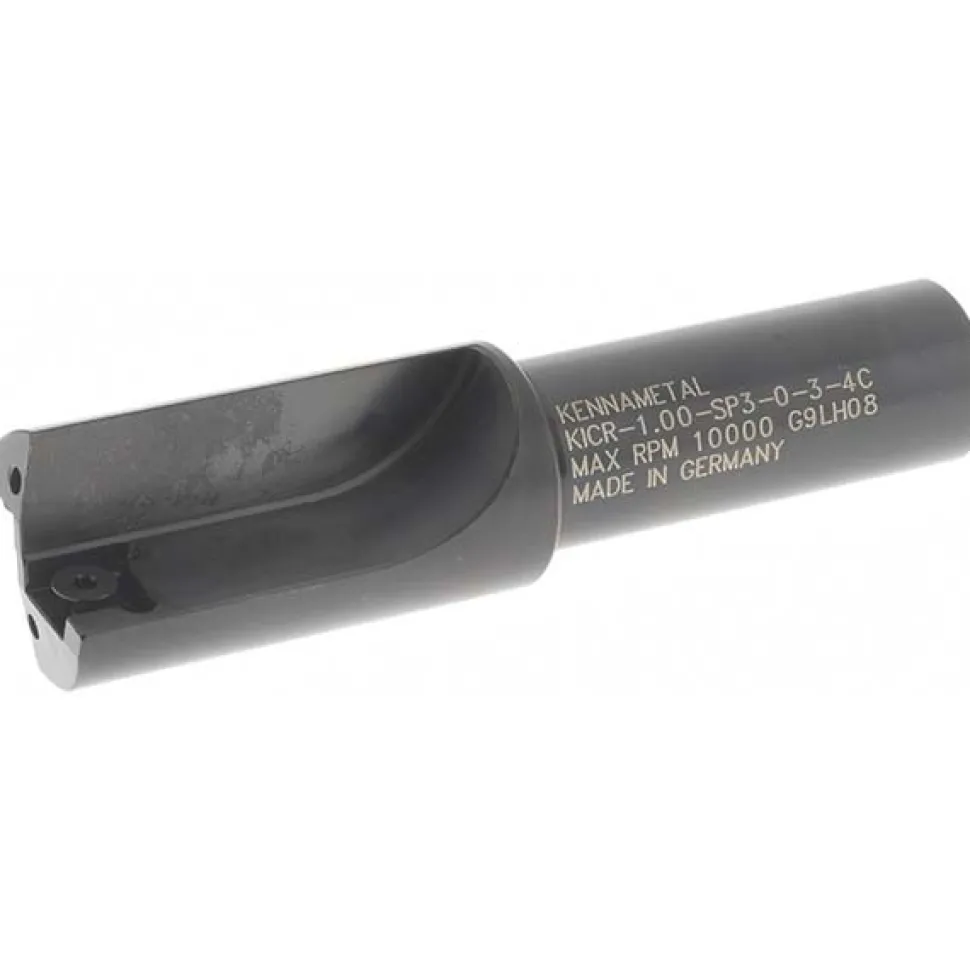

Indexable Square-Shoulder End Mill: KICR100SP3034C, 1″ Cut Dia, 8.64 mm Max Depth of Cut, 3/4″ Dia Weldon Flat Shank
Original price was: 513,00 $.124,89 $Current price is: 124,89 $.
Specifications
| Cutting Diameter (Decimal Inch): 1.0000 in | Cutting Diameter: 1 |
| Overall Length (Decimal Inch): 4.0000 | Overall Length (Inch): 4 |
| Maximum Depth of Cut (mm): 8.64 | Maximum Depth of Cut (Decimal Inch): 0.3400 |
| Cutter Style: KICR | Shank Type: Weldon Flat |
| Shank Diameter (Decimal Inch): 0.7500 | Shank Diameter (Inch): 3/4 |
| Shank Diameter (mm): 19.05 | Insert Holding Method: Screw |
| Lead Angle: 0 | Shank Length (Decimal Inch): 2.0299 |
| Shank Length (mm): 51.56 | Head Length (Decimal Inch): 1.9700 |
| Maximum RPM: 10000 | Tool Application: Center-Cutting |
| Insert Compatibility: SPEB 322 | ISO Number: KICR100SP3034C |
| UNSPSC Code: 27112803 | Number Of Flutes: 2 |
| Number Of Cutter Inserts: 2 | Coolant Through: Yes |
| Country of Origin: Germany | |
| Cutting Diameter (Decimal Inch): 1.0000 in | |
| Cutting Diameter: 1 | |
| Overall Length (Decimal Inch): 4.0000 | |
| Overall Length (Inch): 4 | |
| Maximum Depth of Cut (mm): 8.64 | |
| Maximum Depth of Cut (Decimal Inch): 0.3400 | |
| Cutter Style: KICR | |
| Shank Type: Weldon Flat | |
| Shank Diameter (Decimal Inch): 0.7500 | |
| Shank Diameter (Inch): 3/4 | |
| Shank Diameter (mm): 19.05 | |
| Insert Holding Method: Screw | |
| Lead Angle: 0 | |
| Shank Length (Decimal Inch): 2.0299 | |
| Shank Length (mm): 51.56 | |
| Head Length (Decimal Inch): 1.9700 | |
| Maximum RPM: 10000 | |
| Tool Application: Center-Cutting | |
| Insert Compatibility: SPEB 322 | |
| ISO Number: KICR100SP3034C | |
| UNSPSC Code: 27112803 | |
| Number Of Flutes: 2 | |
| Number Of Cutter Inserts: 2 | |
| Coolant Through: Yes | |
| Country of Origin: Germany |
| MSC# | 00691139 |
| Mfr# | 1023604 |
| Big Book# | 709 |
