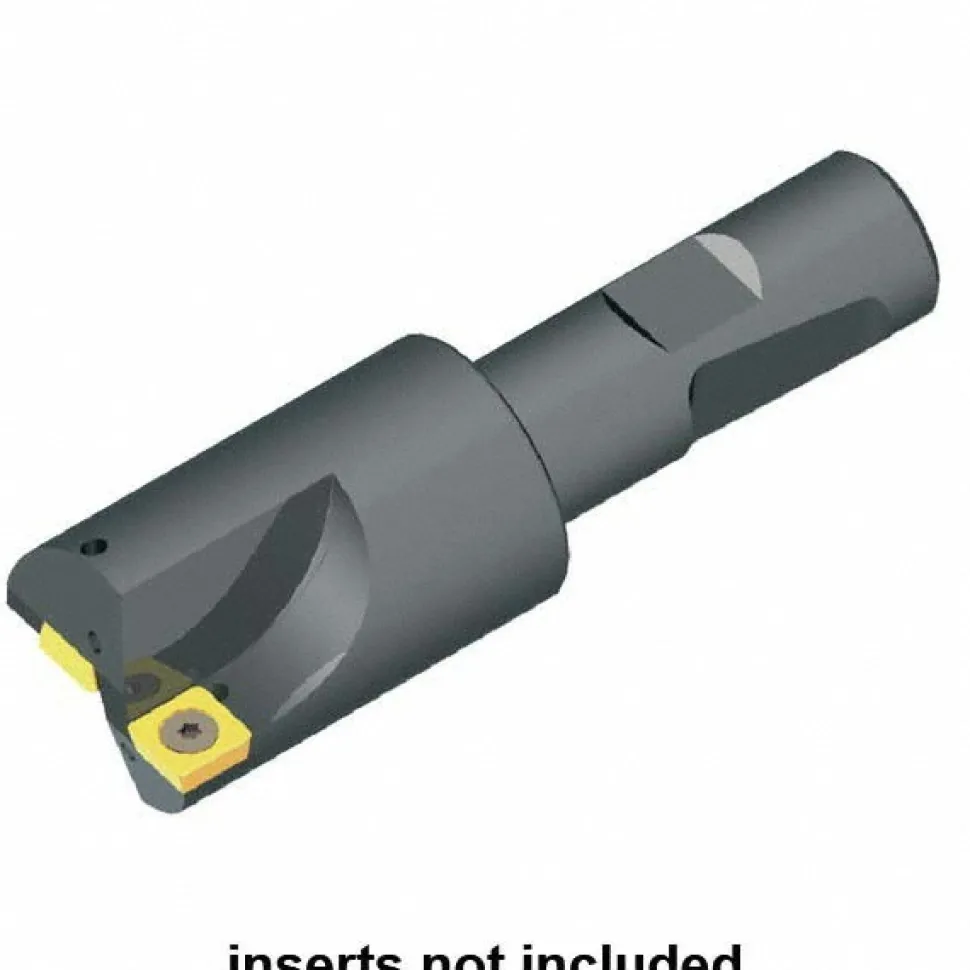

Indexable Square-Shoulder End Mill: KICR062SD260253C, 5/8" Cut Dia, 7.11 mm Max Depth of Cut, 5/8" Dia Weldon Flat Shank

Indexable Square-Shoulder End Mill: KICR062SD260253C, 5/8″ Cut Dia, 7.11 mm Max Depth of Cut, 5/8″ Dia Weldon Flat Shank

126,99 $

SKU: SKU4ALi1PCTTJ Categories: Indexable Cutting Tools, Indexable Milling, Shop All Products Tag: Kennametal Brand: Kennametal

Description
Reviews (0)

Specifications

Cutting Diameter (Decimal Inch): 0.6250 in	Cutting Diameter: 5/8
Overall Length (Decimal Inch): 3.3800	Maximum Depth of Cut (mm): 7.11
Maximum Depth of Cut (Decimal Inch): 0.2800	Cutter Style: KICR
Shank Type: Weldon Flat	Shank Diameter (Decimal Inch): 0.6250
Shank Diameter (Inch): 5/8	Shank Diameter (mm): 15.88
Insert Holding Method: Screw	Lead Angle: 0
Shank Length (Decimal Inch): 1.9098	Shank Length (mm): 48.51
Head Length (Decimal Inch): 1.4700	Maximum RPM: 10750
Tool Application: Center-Cutting	Insert Compatibility: SDEB 2615.
ISO Number: KICR062SD260253C	UNSPSC Code: 27112803
Number Of Flutes: 1	Number Of Cutter Inserts: 1
Coolant Through: Yes	Country of Origin: Germany
Cutting Diameter (Decimal Inch): 0.6250 in
Cutting Diameter: 5/8
Overall Length (Decimal Inch): 3.3800
Maximum Depth of Cut (mm): 7.11
Maximum Depth of Cut (Decimal Inch): 0.2800
Cutter Style: KICR
Shank Type: Weldon Flat
Shank Diameter (Decimal Inch): 0.6250
Shank Diameter (Inch): 5/8
Shank Diameter (mm): 15.88
Insert Holding Method: Screw
Lead Angle: 0
Shank Length (Decimal Inch): 1.9098
Shank Length (mm): 48.51
Head Length (Decimal Inch): 1.4700
Maximum RPM: 10750
Tool Application: Center-Cutting
Insert Compatibility: SDEB 2615.
ISO Number: KICR062SD260253C
UNSPSC Code: 27112803
Number Of Flutes: 1
Number Of Cutter Inserts: 1
Coolant Through: Yes
Country of Origin: Germany
