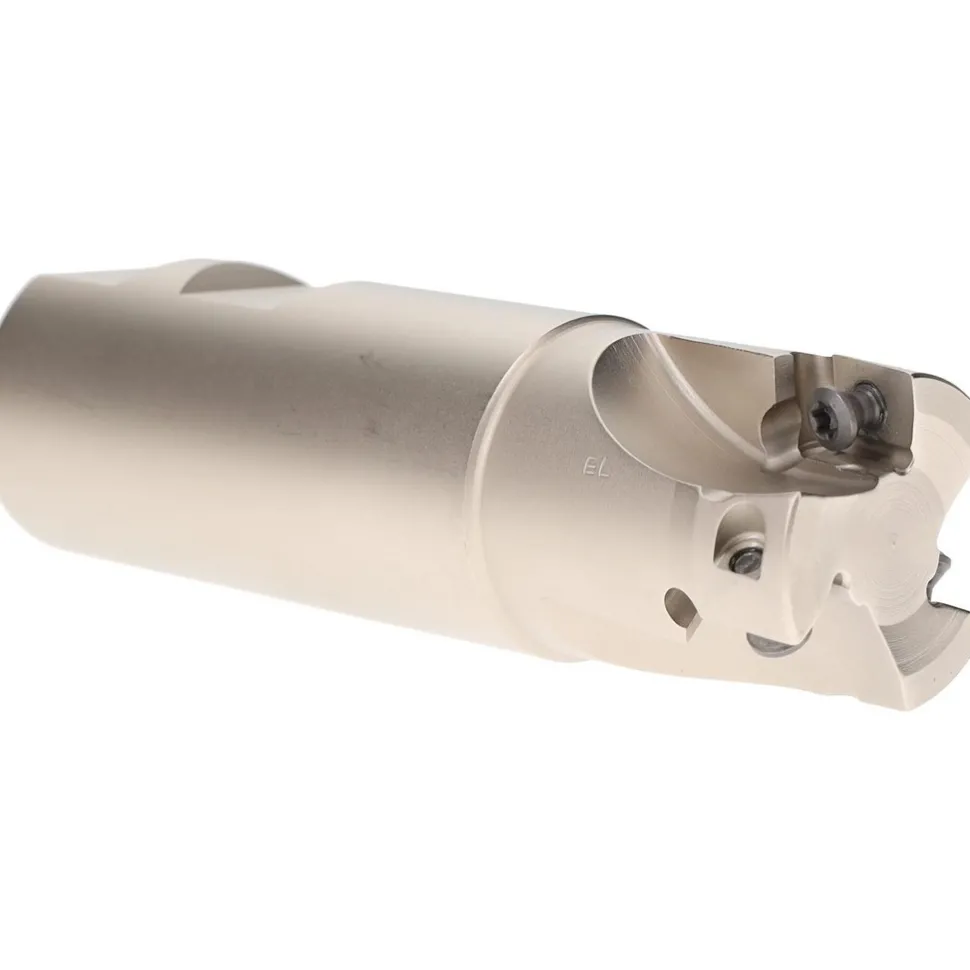

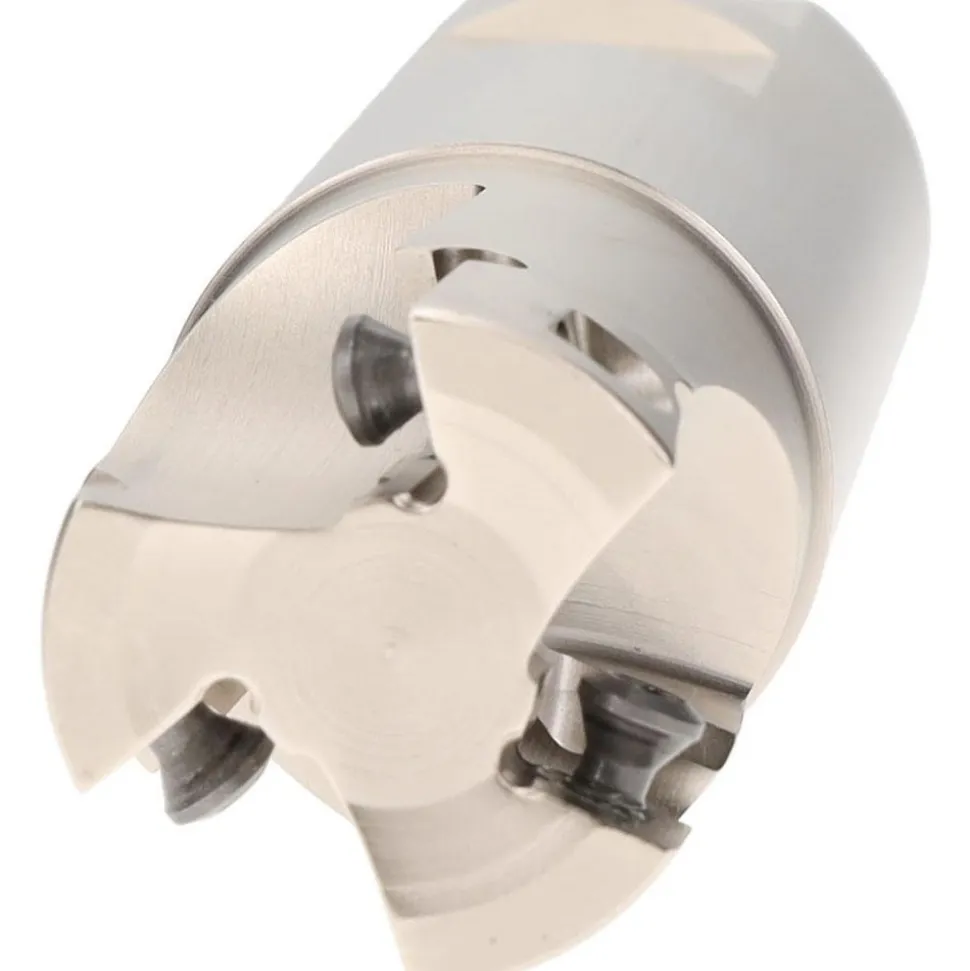

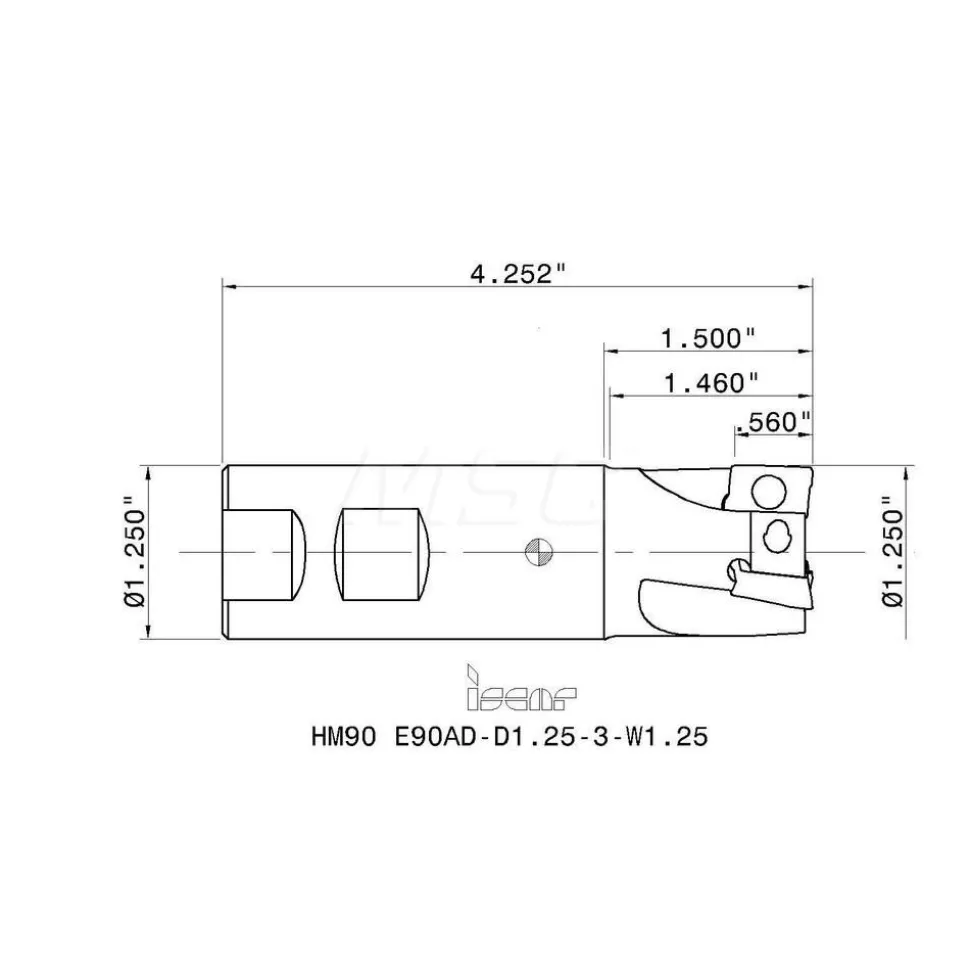

Indexable Square-Shoulder End Mill: HM90E90ADD1.25-3-W1.25, 1-1/4″ Cut Dia, 0.56″ Max Depth of Cut, 1-1/4″ Dia Weldon Flat Shank
140,99 $
Specifications
| Cutting Diameter (Decimal Inch): 1.2500 in | Cutting Diameter: 1-1/4 |
| Overall Length (Decimal Inch): 4.2500 | Maximum Depth of Cut (Decimal Inch): 0.5600 |
| Cutter Style: HM90 E90AD-15 | Shank Type: Weldon Flat |
| Shank Diameter (Decimal Inch): 1.2500 | Shank Diameter (Inch): 1-1/4 |
| Insert Holding Method: Screw | Maximum Ramping Angle: 5.3 |
| Series: Heli2000 | Lead Angle: 90 |
| Shank Length (Decimal Inch): 2.7500 | Head Length (Decimal Inch): 1.5000 |
| Tool Application: Milling | Standards: ISO 9001:2008; AS 9100; OSHAS18001:2007; ISO 50001; ISO 14001:2004 |
| Insert Compatibility: HM90 AD..1505; AD..1505.. | UNSPSC Code: 27112803 |
| Manufacturers Catalog Number: HM90 E90AD-D1.25-3-W1.25 | Number Of Flutes: 3 |
| Usable Length (Decimal Inch): 1.4600 | Number Of Cutter Inserts: 3 |
| Coolant Through: No | Country of Origin: Israel |
| Cutting Diameter (Decimal Inch): 1.2500 in | |
| Cutting Diameter: 1-1/4 | |
| Overall Length (Decimal Inch): 4.2500 | |
| Maximum Depth of Cut (Decimal Inch): 0.5600 | |
| Cutter Style: HM90 E90AD-15 | |
| Shank Type: Weldon Flat | |
| Shank Diameter (Decimal Inch): 1.2500 | |
| Shank Diameter (Inch): 1-1/4 | |
| Insert Holding Method: Screw | |
| Maximum Ramping Angle: 5.3 | |
| Series: Heli2000 | |
| Lead Angle: 90 | |
| Shank Length (Decimal Inch): 2.7500 | |
| Head Length (Decimal Inch): 1.5000 | |
| Tool Application: Milling | |
| Standards: ISO 9001:2008; AS 9100; OSHAS18001:2007; ISO 50001; ISO 14001:2004 | |
| Insert Compatibility: HM90 AD..1505; AD..1505.. | |
| UNSPSC Code: 27112803 | |
| Manufacturers Catalog Number: HM90 E90AD-D1.25-3-W1.25 | |
| Number Of Flutes: 3 | |
| Usable Length (Decimal Inch): 1.4600 | |
| Number Of Cutter Inserts: 3 | |
| Coolant Through: No | |
| Country of Origin: Israel |
| MSC# | 60841749 |
| Mfr# | 3101878 |
| Big Book# | 691 |
