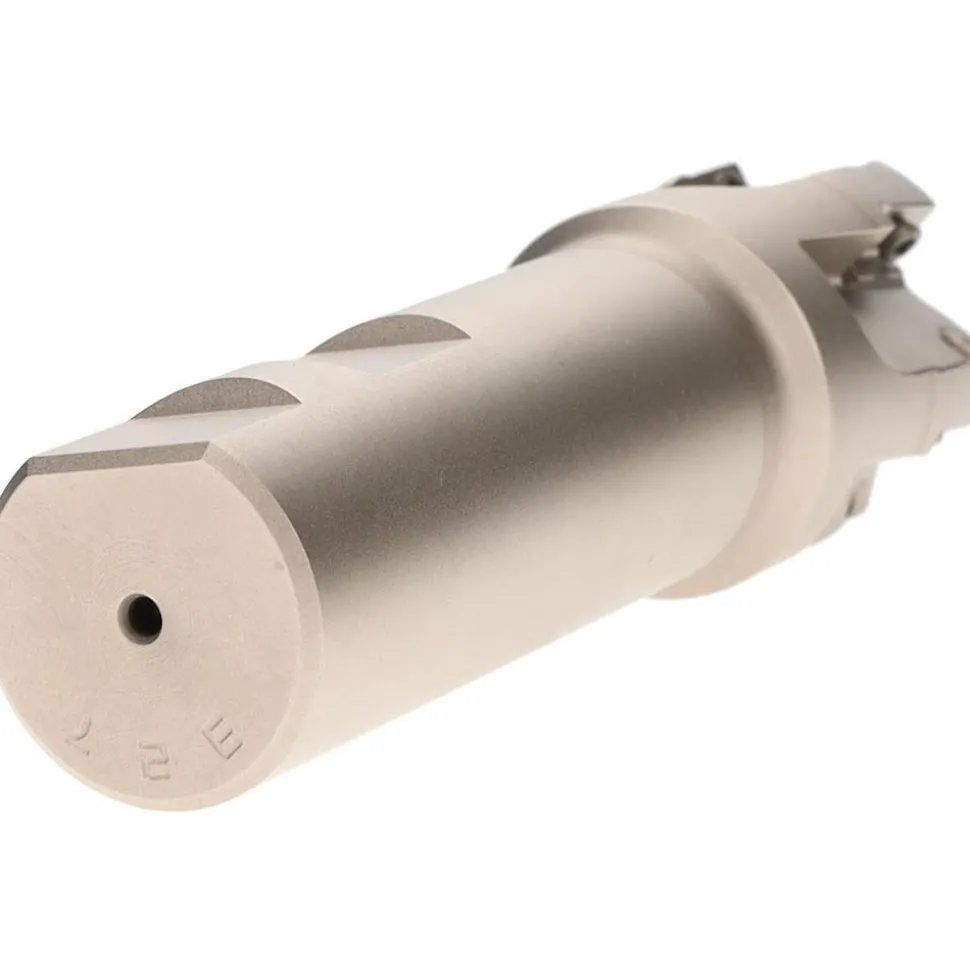

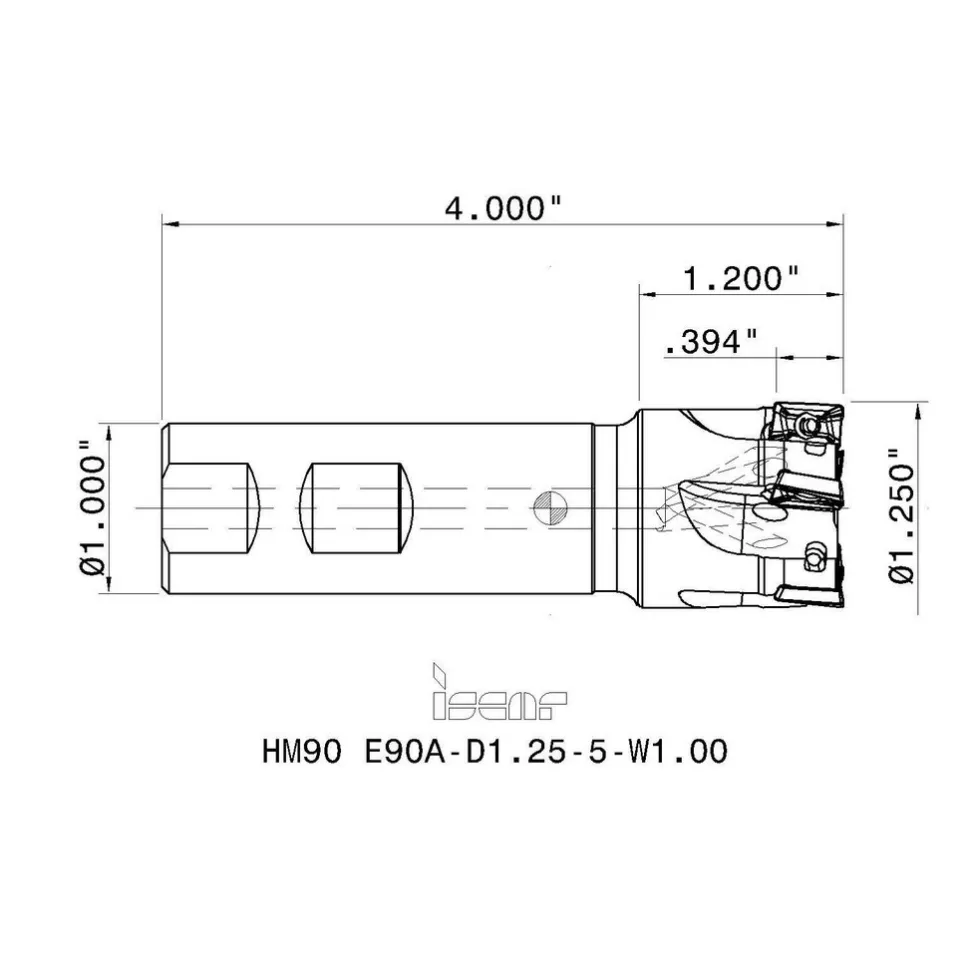

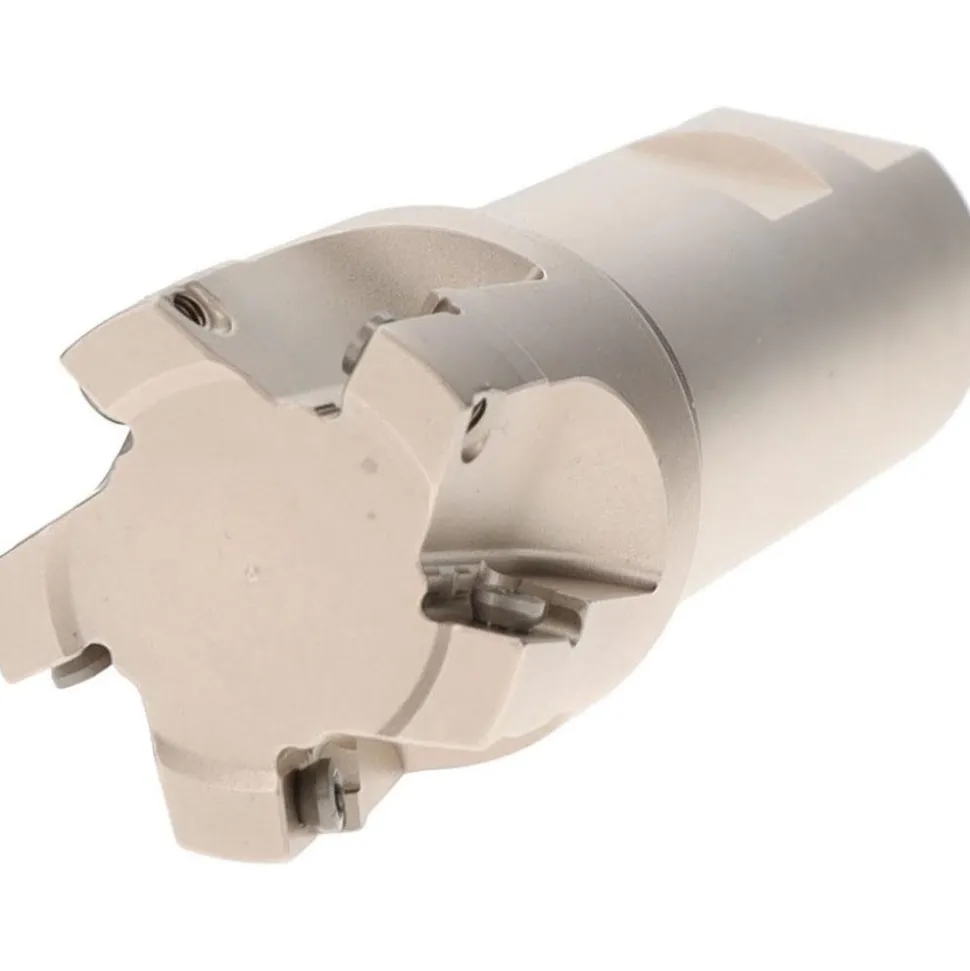

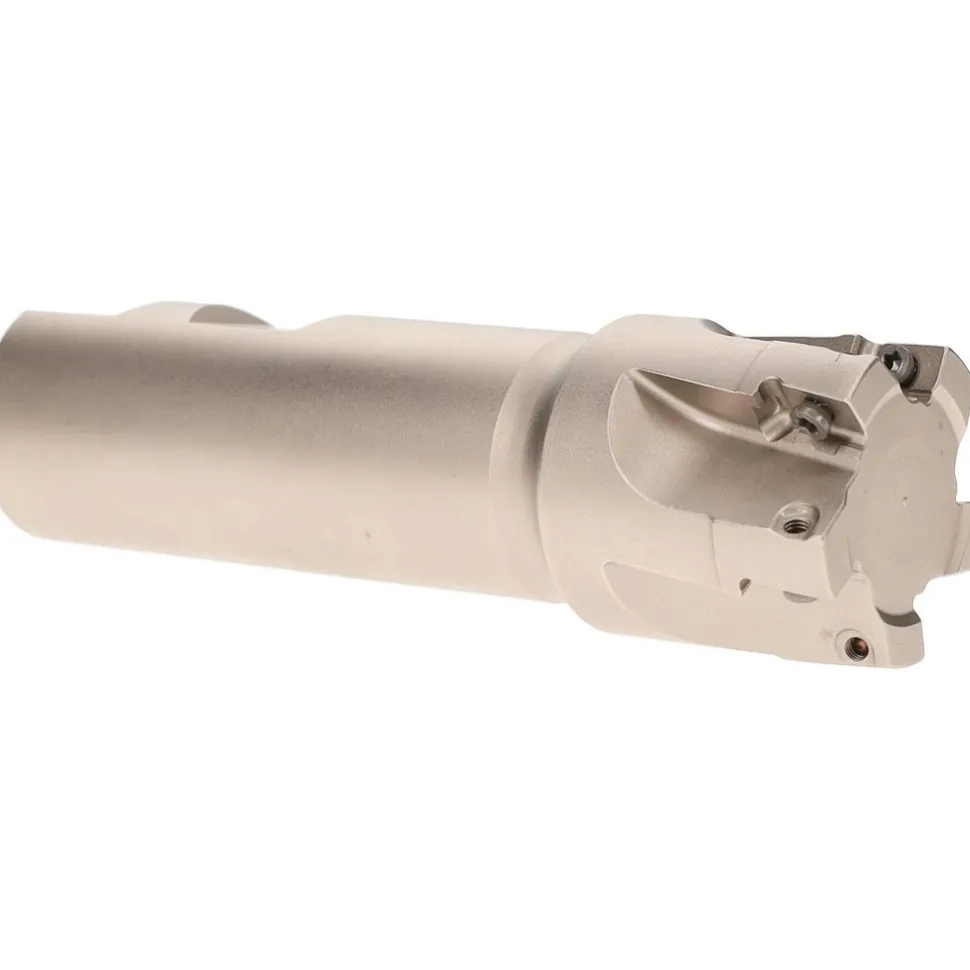

Indexable Square-Shoulder End Mill: HM90 E90A-D1.25-5W1.00, 1-1/4″ Cut Dia, 0.394″ Max Depth of Cut, 1″ Dia Weldon Flat Shank
128,99 $
Specifications
| Cutting Diameter (Decimal Inch): 1.2500 in | Cutting Diameter: 1-1/4 |
| Overall Length (Decimal Inch): 4.0000 | Overall Length (Inch): 4 |
| Maximum Depth of Cut (Decimal Inch): 0.3940 | Cutter Style: HM90 E90A-10 |
| Shank Type: Weldon Flat | Shank Diameter (Decimal Inch): 1.0000 |
| Shank Diameter (Inch): 1 | Insert Holding Method: Screw |
| Maximum Ramping Angle: 3 | Tool Material: Solid Carbide |
| Series: Heli2000 | Lead Angle: 90 |
| Shank Length (Decimal Inch): 2.5500 | Head Length (Decimal Inch): 1.2000 |
| Tool Application: Milling | Standards: ISO 9001:2008; AS 9100; OSHAS18001:2007; ISO 50001; ISO 14001:2004 |
| Insert Compatibility: AP..1003..; HM90 AP..1003.. | UNSPSC Code: 27112803 |
| Manufacturers Catalog Number: HM90 E90A-D1.25-5-W1.00 | Number Of Flutes: 5 |
| Number Of Cutter Inserts: 5 | Coolant Through: No |
| Country of Origin: Germany | |
| Cutting Diameter (Decimal Inch): 1.2500 in | |
| Cutting Diameter: 1-1/4 | |
| Overall Length (Decimal Inch): 4.0000 | |
| Overall Length (Inch): 4 | |
| Maximum Depth of Cut (Decimal Inch): 0.3940 | |
| Cutter Style: HM90 E90A-10 | |
| Shank Type: Weldon Flat | |
| Shank Diameter (Decimal Inch): 1.0000 | |
| Shank Diameter (Inch): 1 | |
| Insert Holding Method: Screw | |
| Maximum Ramping Angle: 3 | |
| Tool Material: Solid Carbide | |
| Series: Heli2000 | |
| Lead Angle: 90 | |
| Shank Length (Decimal Inch): 2.5500 | |
| Head Length (Decimal Inch): 1.2000 | |
| Tool Application: Milling | |
| Standards: ISO 9001:2008; AS 9100; OSHAS18001:2007; ISO 50001; ISO 14001:2004 | |
| Insert Compatibility: AP..1003..; HM90 AP..1003.. | |
| UNSPSC Code: 27112803 | |
| Manufacturers Catalog Number: HM90 E90A-D1.25-5-W1.00 | |
| Number Of Flutes: 5 | |
| Number Of Cutter Inserts: 5 | |
| Coolant Through: No | |
| Country of Origin: Germany |
| MSC# | 60841228 |
| Mfr# | 3101941 |
| Big Book# | 691 |
