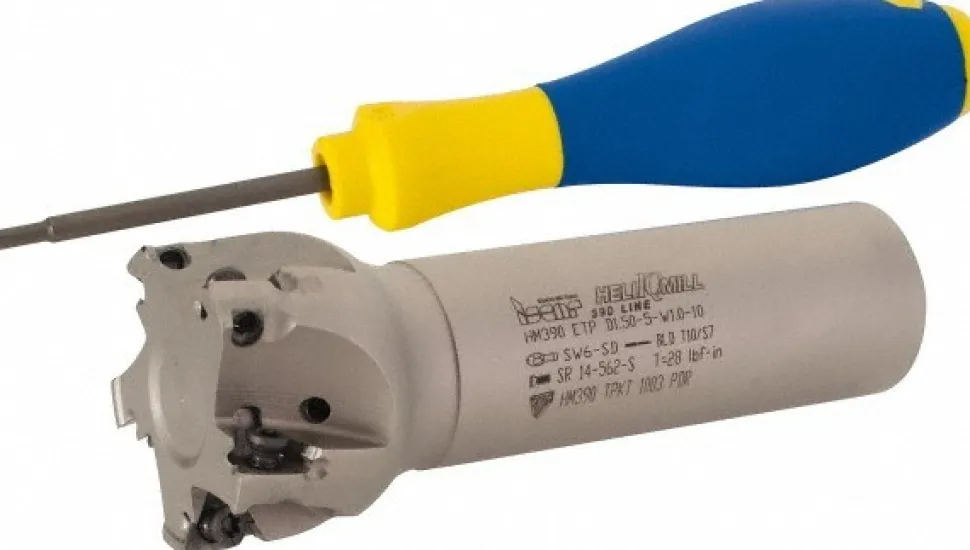

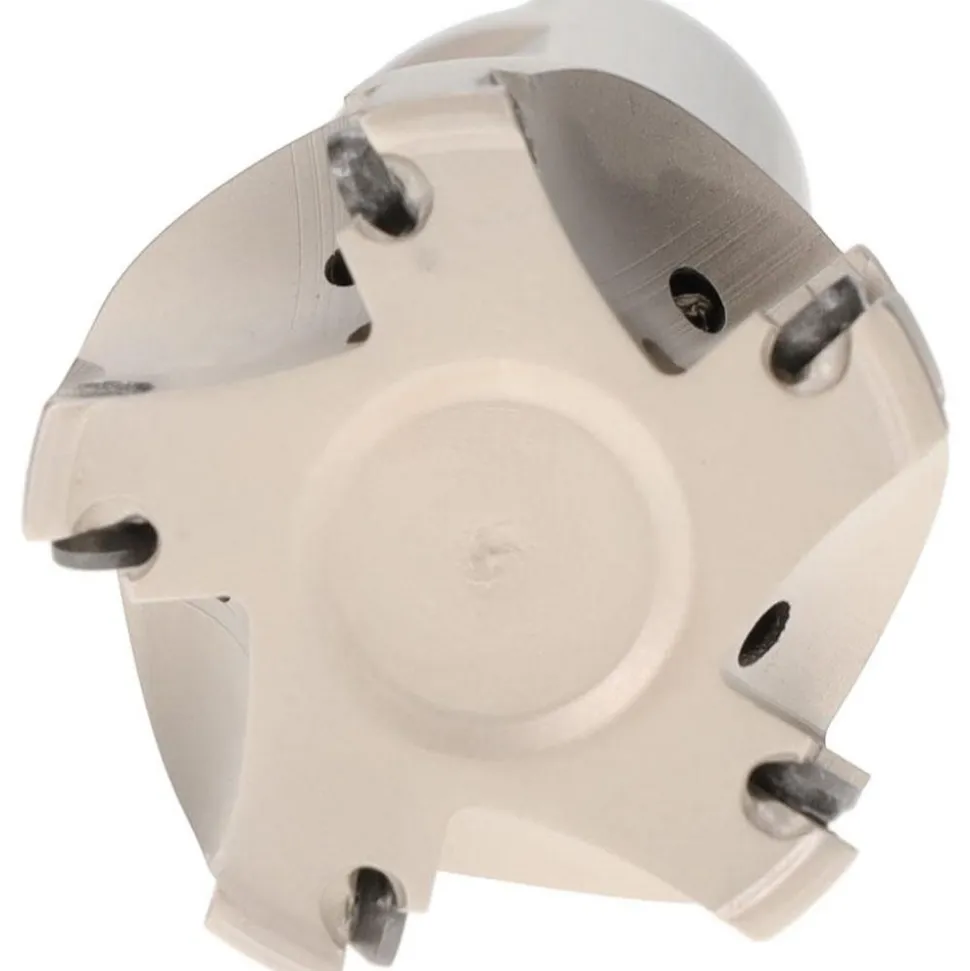

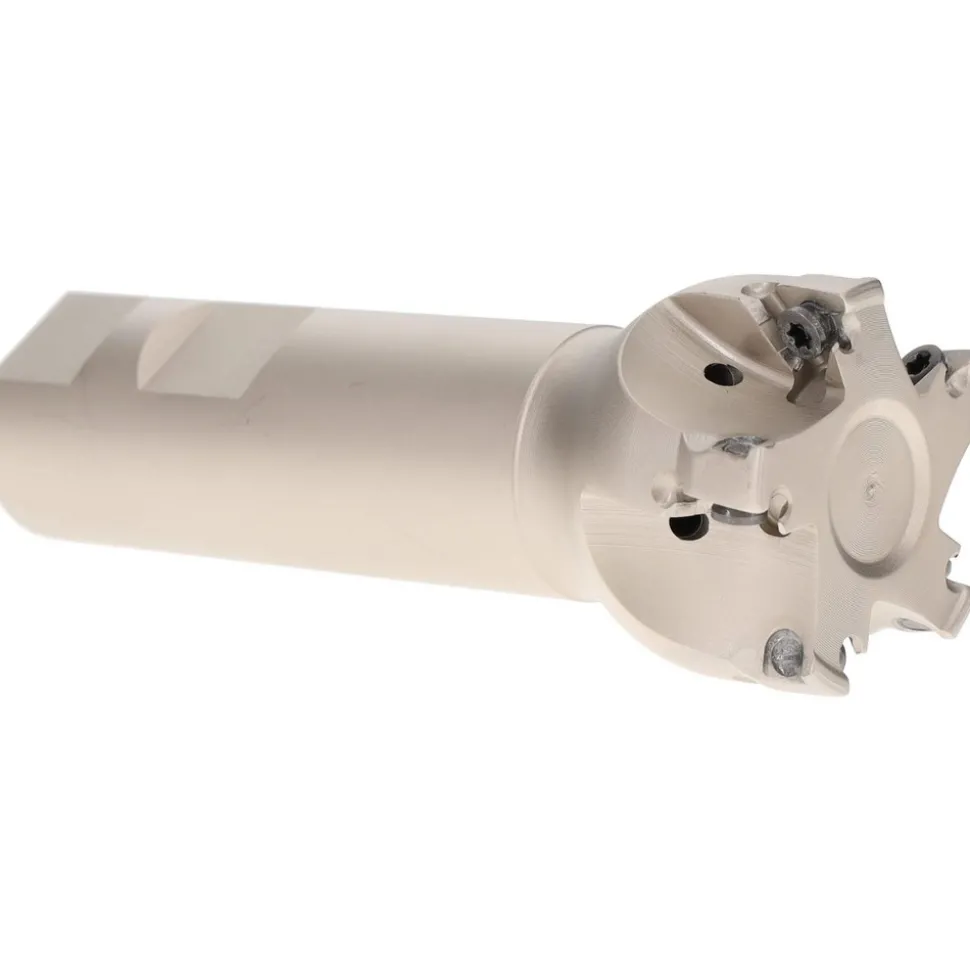

Indexable Square-Shoulder End Mill: HM390ETPD1.505W1.010, 1-1/2" Cut Dia, 0.315" Max Depth of Cut, 1" Dia Weldon Flat Shank

Indexable Square-Shoulder End Mill: HM390ETPD1.505W1.010, 1-1/2″ Cut Dia, 0.315″ Max Depth of Cut, 1″ Dia Weldon Flat Shank

136,99 $

SKU: SKUyEjgSd2zrK Categories: Indexable Cutting Tools, Indexable Milling, Shop All Products Tag: Iscar Brand: Iscar

Description
Reviews (0)

Specifications

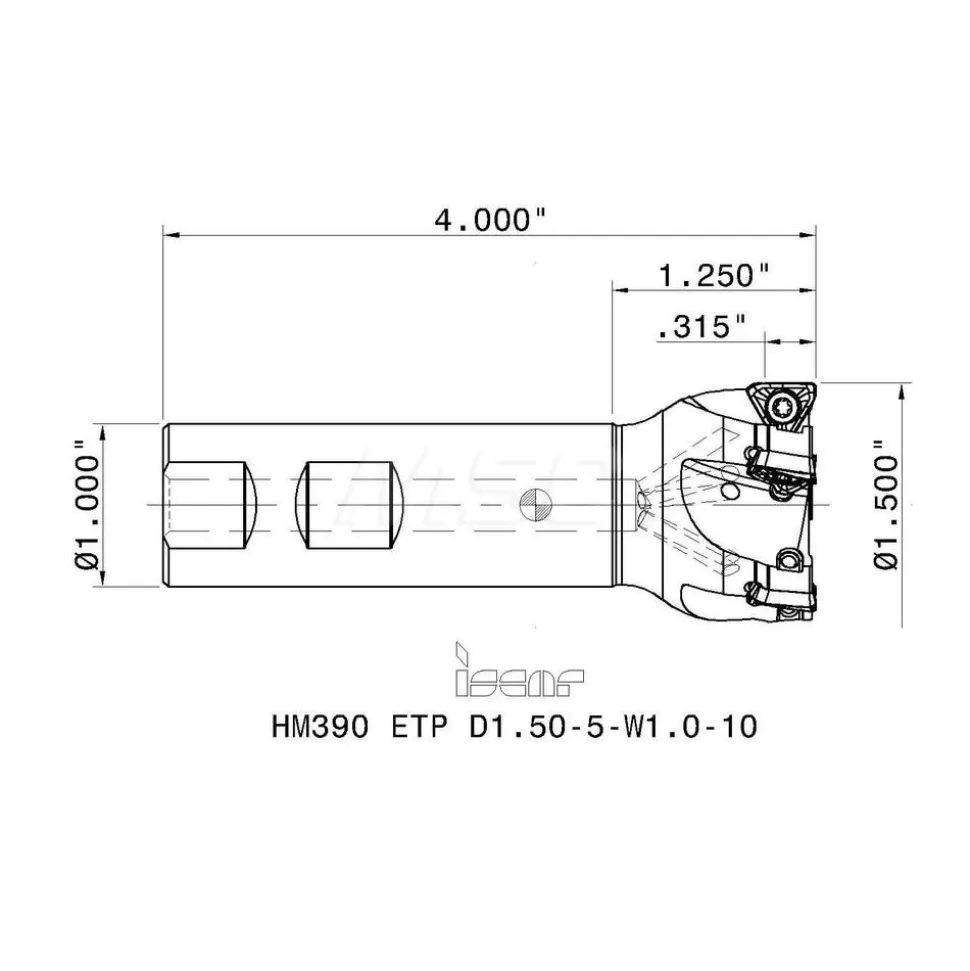

Cutting Diameter (Decimal Inch): 1.5000 in	Cutting Diameter: 1-1/2
Overall Length (Decimal Inch): 4.0000	Overall Length (Inch): 4
Maximum Depth of Cut (Decimal Inch): 0.3150	Cutter Style: HM390 ETP-10
Shank Type: Weldon Flat	Shank Diameter (Decimal Inch): 1.0000
Shank Diameter (Inch): 1	Insert Holding Method: Screw
Maximum Ramping Angle: 1.6	Tool Material: Solid Carbide
Series: HeliIQMill	Flute Type: Helical
Lead Angle: 90	Shank Length (Decimal Inch): 2.7500
Head Length (Decimal Inch): 1.2500	Tool Application: Milling
Standards: ISO 9001:2008; AS 9100; OSHAS18001:2007; ISO 50001; ISO 14001:2004	Insert Compatibility: HM390 TPKT 1003
UNSPSC Code: 27112803	Manufacturers Catalog Number: HM390 ETP D1.50-5-W1.0-10
Number Of Flutes: 5	Number Of Cutter Inserts: 5
Coolant Through: Yes	Country of Origin: Israel
Cutting Diameter (Decimal Inch): 1.5000 in
Cutting Diameter: 1-1/2
Overall Length (Decimal Inch): 4.0000
Overall Length (Inch): 4
Maximum Depth of Cut (Decimal Inch): 0.3150
Cutter Style: HM390 ETP-10
Shank Type: Weldon Flat
Shank Diameter (Decimal Inch): 1.0000
Shank Diameter (Inch): 1
Insert Holding Method: Screw
Maximum Ramping Angle: 1.6
Tool Material: Solid Carbide
Series: HeliIQMill
Flute Type: Helical
Lead Angle: 90
Shank Length (Decimal Inch): 2.7500
Head Length (Decimal Inch): 1.2500
Tool Application: Milling
Standards: ISO 9001:2008; AS 9100; OSHAS18001:2007; ISO 50001; ISO 14001:2004
Insert Compatibility: HM390 TPKT 1003
UNSPSC Code: 27112803
Manufacturers Catalog Number: HM390 ETP D1.50-5-W1.0-10
Number Of Flutes: 5
Number Of Cutter Inserts: 5
Coolant Through: Yes
Country of Origin: Israel
