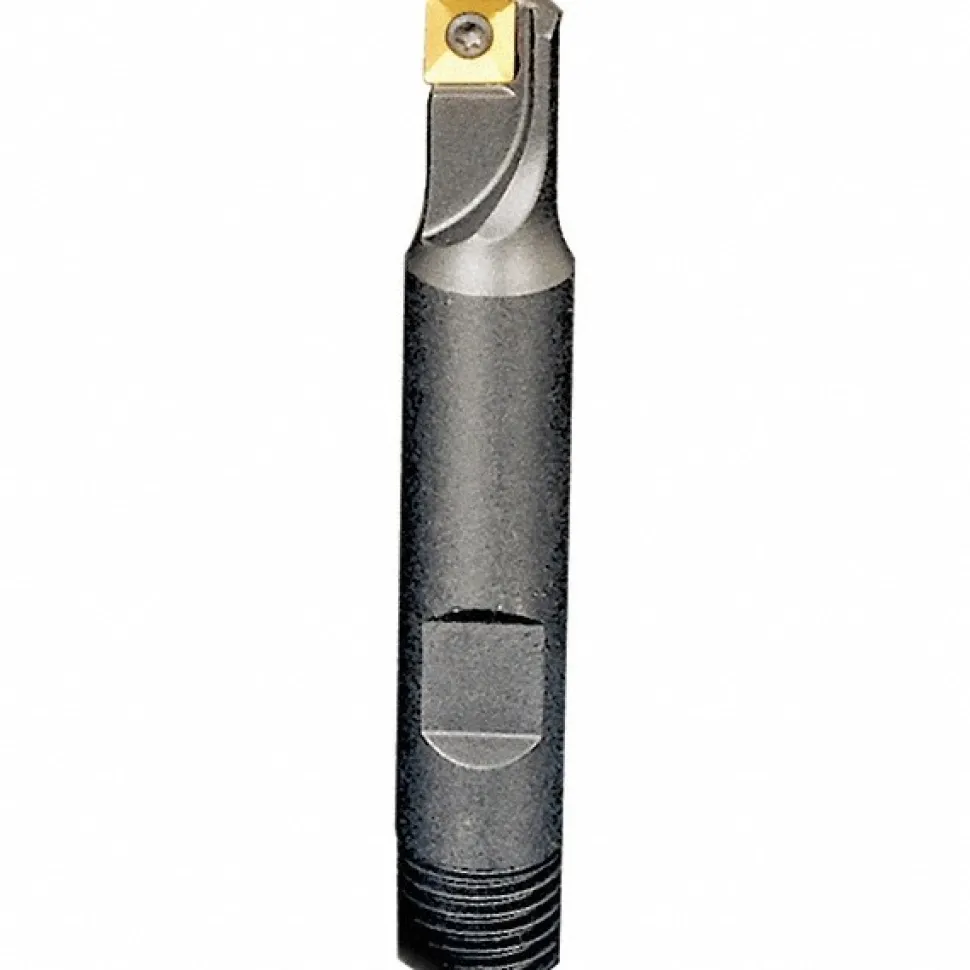

Indexable Square-Shoulder End Mill: E90X-D.75-W.75-06, 3/4″ Cut Dia, 0.22″ Max Depth of Cut, 3/4″ Dia Weldon Flat Shank

126,99 $

SKU: SKUsIQSO16FUs Categories: Indexable Cutting Tools, Indexable Milling, Shop All Products Tag: Iscar Brand: Iscar

Description
Reviews (0)

Specifications

Cutting Diameter (Decimal Inch): 0.7500 in	Cutting Diameter: 3/4
Overall Length (Decimal Inch): 3.0000	Overall Length (Inch): 3
Maximum Depth of Cut (Decimal Inch): 0.2200	Cutter Style: E90X
Shank Type: Weldon Flat	Shank Diameter (Decimal Inch): 0.7500
Shank Diameter (Inch): 3/4	Insert Holding Method: Screw
Maximum Ramping Angle: 3	Series: Heliquad
Lead Angle: 90	Shank Length (Decimal Inch): 2.1300
Head Length (Decimal Inch): 0.8700	Tool Application: Milling
Standards: ISO 9001:2008; AS 9100; OSHAS18001:2007; ISO 50001; ISO 14001:2004	Insert Compatibility: SOMT 0602..; XOMT 0602..; QOMT 0602..
UNSPSC Code: 27112803	Manufacturers Catalog Number: E90X D.75-W .75-06
Number Of Flutes: 3	Usable Length (Decimal Inch): 0.8700
Number Of Cutter Inserts: 3	Coolant Through: No
Country of Origin: Israel
Cutting Diameter (Decimal Inch): 0.7500 in
Cutting Diameter: 3/4
Overall Length (Decimal Inch): 3.0000
Overall Length (Inch): 3
Maximum Depth of Cut (Decimal Inch): 0.2200
Cutter Style: E90X
Shank Type: Weldon Flat
Shank Diameter (Decimal Inch): 0.7500
Shank Diameter (Inch): 3/4
Insert Holding Method: Screw
Maximum Ramping Angle: 3
Series: Heliquad
Lead Angle: 90
Shank Length (Decimal Inch): 2.1300
Head Length (Decimal Inch): 0.8700
Tool Application: Milling
Standards: ISO 9001:2008; AS 9100; OSHAS18001:2007; ISO 50001; ISO 14001:2004
Insert Compatibility: SOMT 0602..; XOMT 0602..; QOMT 0602..
UNSPSC Code: 27112803
Manufacturers Catalog Number: E90X D.75-W .75-06
Number Of Flutes: 3
Usable Length (Decimal Inch): 0.8700
Number Of Cutter Inserts: 3
Coolant Through: No
Country of Origin: Israel
