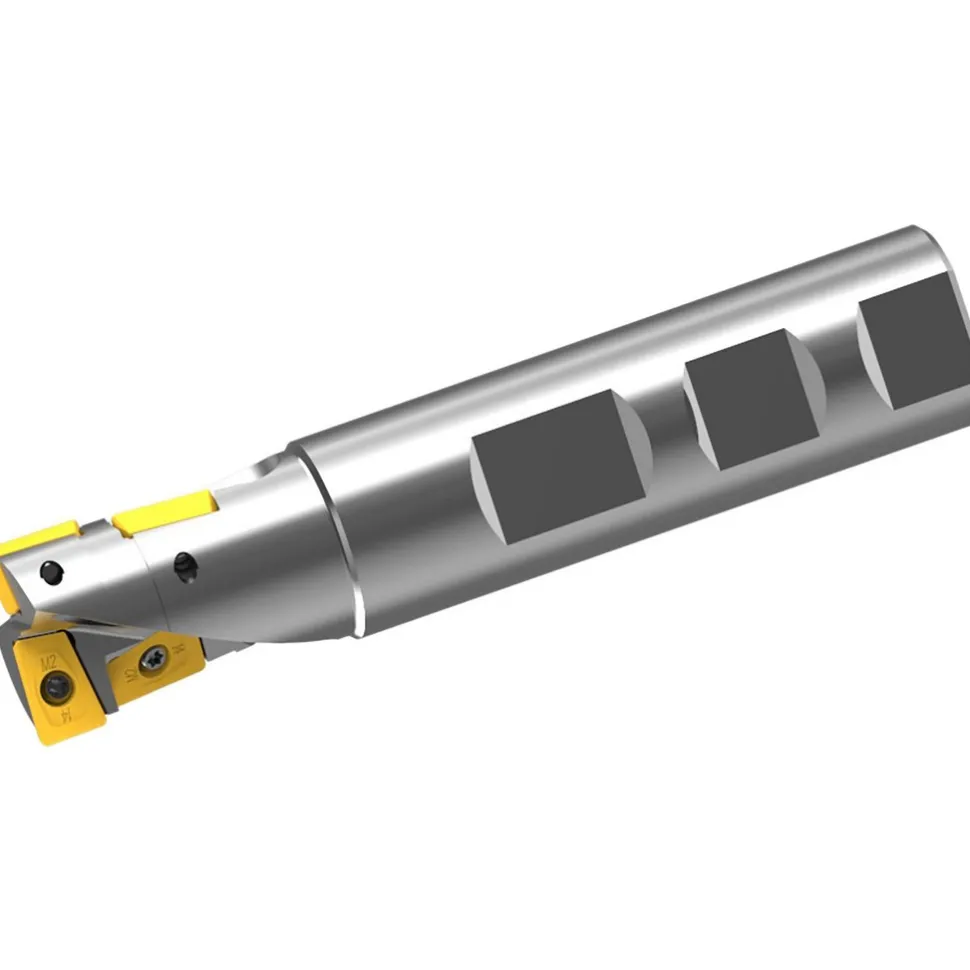

Indexable Square-Shoulder End Mill: AQXUR164WA16S, 1.0000” Max Depth of Cut, 1.0000” Shank Dia, Weldon Flat Shank
138,89 $
Specifications
| Cutting Diameter (Decimal Inch): 1.0000 | Cutting Diameter (mm): 25.40 |
| Cutting Diameter: 1 | Overall Length (Decimal Inch): 4.8750 |
| Overall Length (mm): 123.83 | Overall Length (Inch): 4-7/8 |
| Maximum Depth of Cut (mm): 25.40 | Maximum Depth of Cut (Decimal Inch): 1.0000 |
| Maximum Depth of Cut (Inch): 1 | Cutter Style: AQX |
| Shank Type: Weldon Flat | Shank Diameter (Decimal Inch): 1.0000 |
| Shank Diameter (Inch): 1 | Shank Diameter (mm): 25.40 |
| Insert Holding Method: Screw | Tool Material: Steel |
| Series: AQX | Lead Angle: 90 |
| Shank Length (Inch): 3-1/4 | Shank Length (Decimal Inch): 3.2500 |
| Shank Length (mm): 82.55 | Head Length (Inch): 1-5/8 |
| Head Length (Decimal Inch): 1.6250 | Head Length (mm): 41.28 |
| Tool Application: Facing; Pocketing; Helical; Shouldering; Slotting | Tool Performance: High Performance |
| Primary Workpiece Material: Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel; Alloy | Primary Workpiece Material Code: P; S; H; K; M; N |
| Complete Insert Compatibility: QOMT1443R-M2 | Insert Compatibility: QO.T1443 |
| ISO Number: AQXUR164WA16S | UNSPSC Code: 27112803 |
| Number of Inserts Included in Order: 0 | Number Of Flutes: 2 |
| Number Of Cutter Inserts: 4 | Coolant Through: Yes |
| Country of Origin: UNITED STATES | |
| Cutting Diameter (Decimal Inch): 1.0000 | |
| Cutting Diameter (mm): 25.40 | |
| Cutting Diameter: 1 | |
| Overall Length (Decimal Inch): 4.8750 | |
| Overall Length (mm): 123.83 | |
| Overall Length (Inch): 4-7/8 | |
| Maximum Depth of Cut (mm): 25.40 | |
| Maximum Depth of Cut (Decimal Inch): 1.0000 | |
| Maximum Depth of Cut (Inch): 1 | |
| Cutter Style: AQX | |
| Shank Type: Weldon Flat | |
| Shank Diameter (Decimal Inch): 1.0000 | |
| Shank Diameter (Inch): 1 | |
| Shank Diameter (mm): 25.40 | |
| Insert Holding Method: Screw | |
| Tool Material: Steel | |
| Series: AQX | |
| Lead Angle: 90 | |
| Shank Length (Inch): 3-1/4 | |
| Shank Length (Decimal Inch): 3.2500 | |
| Shank Length (mm): 82.55 | |
| Head Length (Inch): 1-5/8 | |
| Head Length (Decimal Inch): 1.6250 | |
| Head Length (mm): 41.28 | |
| Tool Application: Facing; Pocketing; Helical; Shouldering; Slotting | |
| Tool Performance: High Performance | |
| Primary Workpiece Material: Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel; Alloy | |
| Primary Workpiece Material Code: P; S; H; K; M; N | |
| Complete Insert Compatibility: QOMT1443R-M2 | |
| Insert Compatibility: QO.T1443 | |
| ISO Number: AQXUR164WA16S | |
| UNSPSC Code: 27112803 | |
| Number of Inserts Included in Order: 0 | |
| Number Of Flutes: 2 | |
| Number Of Cutter Inserts: 4 | |
| Coolant Through: Yes | |
| Country of Origin: UNITED STATES |
| MSC# | 73998304 |
| Mfr# | 189851 |
