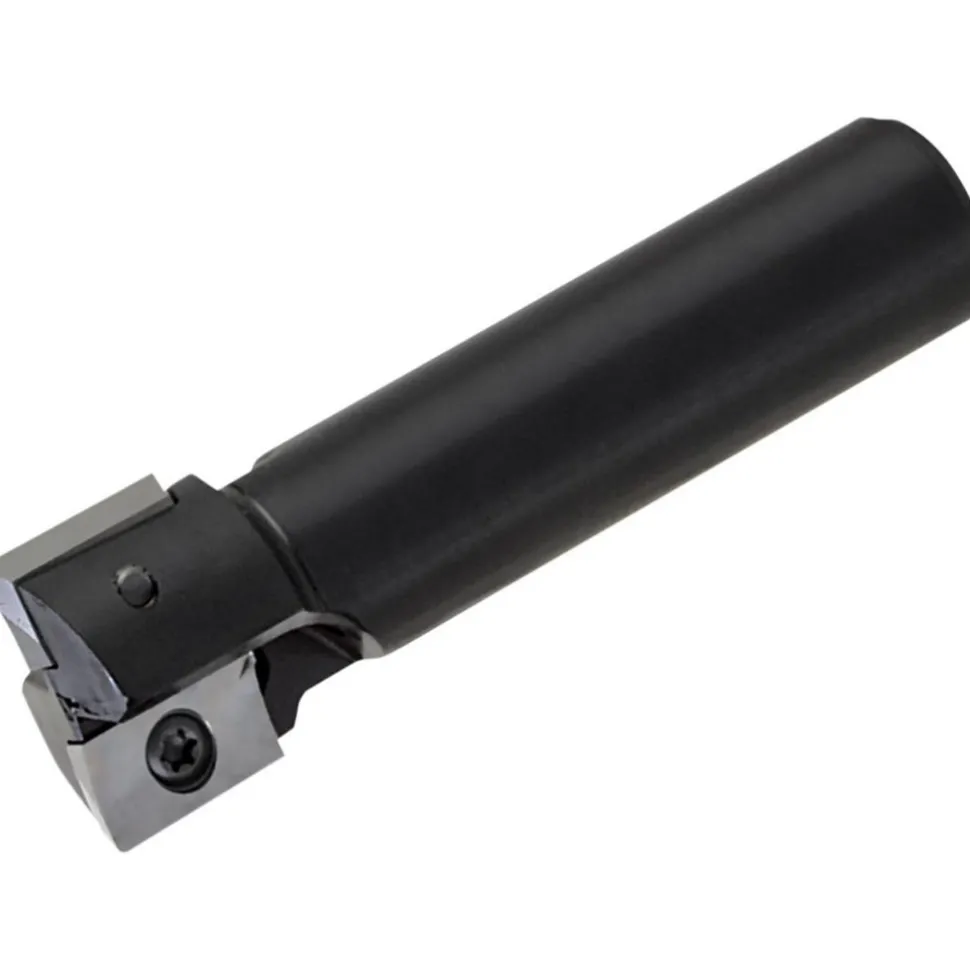

Indexable Square-Shoulder End Mill: 1X3/4X3.38 2FL, 1" Cut Dia, 0.64" Max Depth of Cut, 3/4" Dia Weldon Flat Shank

Indexable Square-Shoulder End Mill: 1X3/4X3.38 2FL, 1″ Cut Dia, 0.64″ Max Depth of Cut, 3/4″ Dia Weldon Flat Shank

126,89 $

SKU: SKUEq7bI3KixE Categories: Indexable Cutting Tools, Indexable Milling, Shop All Products Tag: Kyocera Brand: Kyocera

Description
Reviews (0)

Specifications

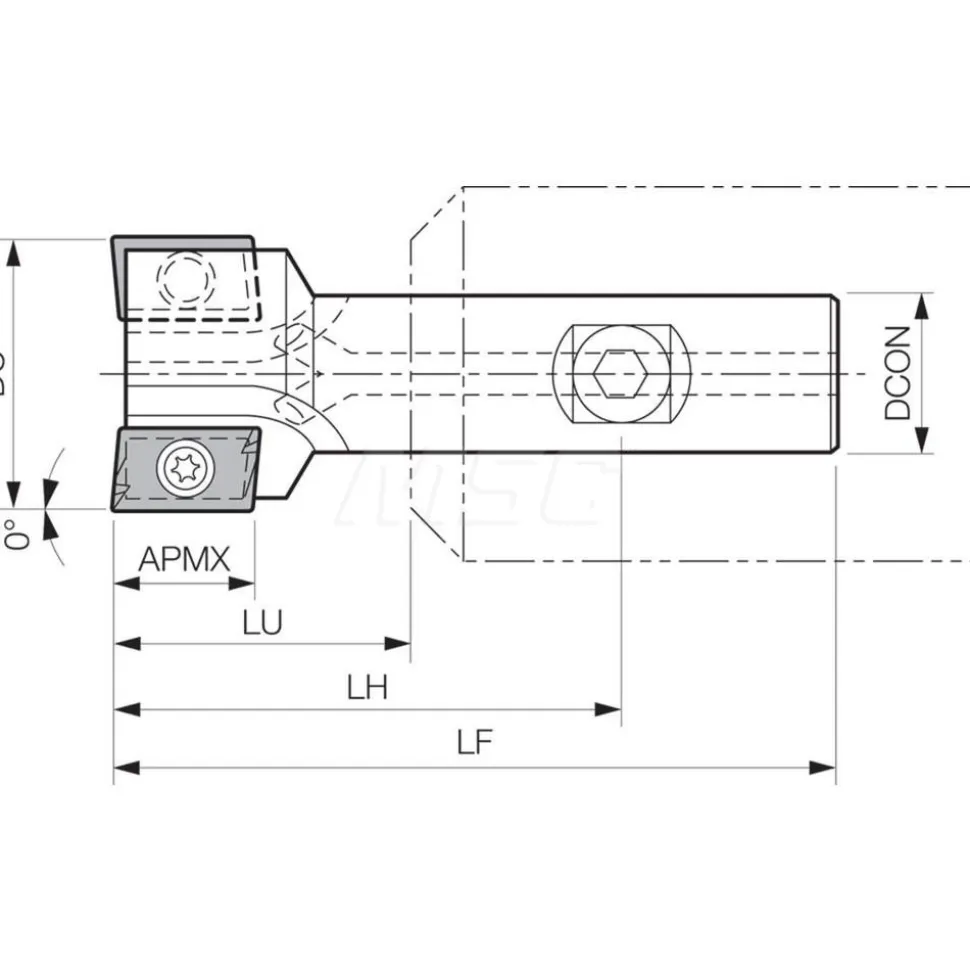

Cutting Diameter (Decimal Inch): 1.0000 in	Cutting Diameter (mm): 25.40
Cutting Diameter: 1	Overall Length (Decimal Inch): 3.3800
Overall Length (Inch): 3-3/8	Maximum Depth of Cut (Decimal Inch): 0.6400
Cutter Style: EM-AL	Shank Type: Weldon Flat
Shank Diameter (Decimal Inch): 0.7500	Shank Diameter (Inch): 3/4
Insert Holding Method: Screw	Series: EM
Lead Angle: 90	Insert Compatibility: APET 1604
UNSPSC Code: 27112803	Number Of Flutes: 2
Usable Length (Decimal Inch): 1.3600	Number Of Cutter Inserts: 2
Coolant Through: Yes	Country of Origin: UNITED STATES
Cutting Diameter (Decimal Inch): 1.0000 in
Cutting Diameter (mm): 25.40
Cutting Diameter: 1
Overall Length (Decimal Inch): 3.3800
Overall Length (Inch): 3-3/8
Maximum Depth of Cut (Decimal Inch): 0.6400
Cutter Style: EM-AL
Shank Type: Weldon Flat
Shank Diameter (Decimal Inch): 0.7500
Shank Diameter (Inch): 3/4
Insert Holding Method: Screw
Series: EM
Lead Angle: 90
Insert Compatibility: APET 1604
UNSPSC Code: 27112803
Number Of Flutes: 2
Usable Length (Decimal Inch): 1.3600
Number Of Cutter Inserts: 2
Coolant Through: Yes
Country of Origin: UNITED STATES
