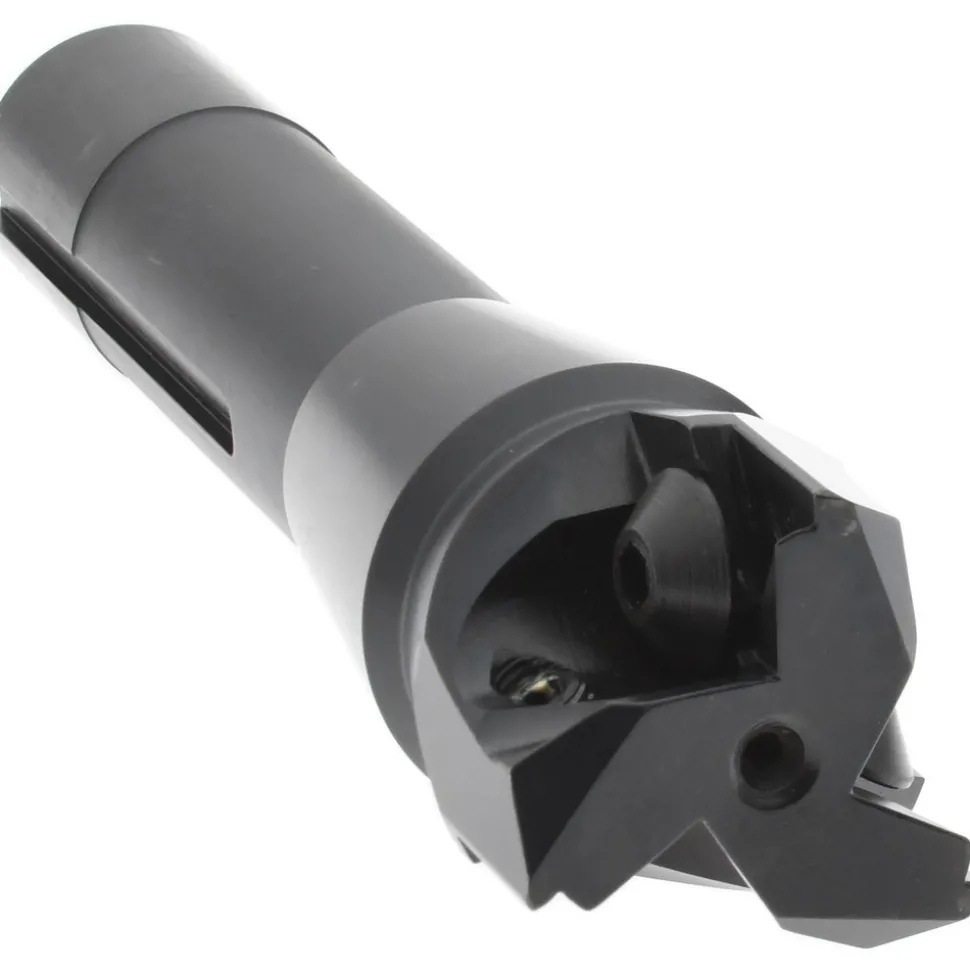

Indexable Square-Shoulder End Mill: 1-1/2XR8 SHK, 1-1/2" Cut Dia, 0.656" Max Depth of Cut, R8 R8 Shank

Indexable Square-Shoulder End Mill: 1-1/2XR8 SHK, 1-1/2″ Cut Dia, 0.656″ Max Depth of Cut, R8 R8 Shank

128,99 $

SKU: SKUVUXRYNMSLQ Categories: Indexable Cutting Tools, Indexable Milling, Shop All Products Tag: Value Collection Brand: Value Collection

Description
Reviews (0)

Specifications

Cutting Diameter (Decimal Inch): 1.5000 in	Cutting Diameter: 1-1/2
Overall Length (Decimal Inch): 5.5781	Overall Length (Inch): 5-37/64
Maximum Depth of Cut (Decimal Inch): 0.6560	Cutter Style: TPG
Shank Type: R8	Shank Taper Size: R8
Insert Holding Method: Screw	Head Length (Inch): 1-33/64
Head Length (Decimal Inch): 1.5156	Insert Compatibility: TPC 32…; TPU 32.; TPG 32.
UNSPSC Code: 27112803	Number Of Flutes: 3
Number Of Cutter Inserts: 3	Coolant Through: No
Country of Origin: Poland
Cutting Diameter (Decimal Inch): 1.5000 in
Cutting Diameter: 1-1/2
Overall Length (Decimal Inch): 5.5781
Overall Length (Inch): 5-37/64
Maximum Depth of Cut (Decimal Inch): 0.6560
Cutter Style: TPG
Shank Type: R8
Shank Taper Size: R8
Insert Holding Method: Screw
Head Length (Inch): 1-33/64
Head Length (Decimal Inch): 1.5156
Insert Compatibility: TPC 32…; TPU 32.; TPG 32.
UNSPSC Code: 27112803
Number Of Flutes: 3
Number Of Cutter Inserts: 3
Coolant Through: No
Country of Origin: Poland
