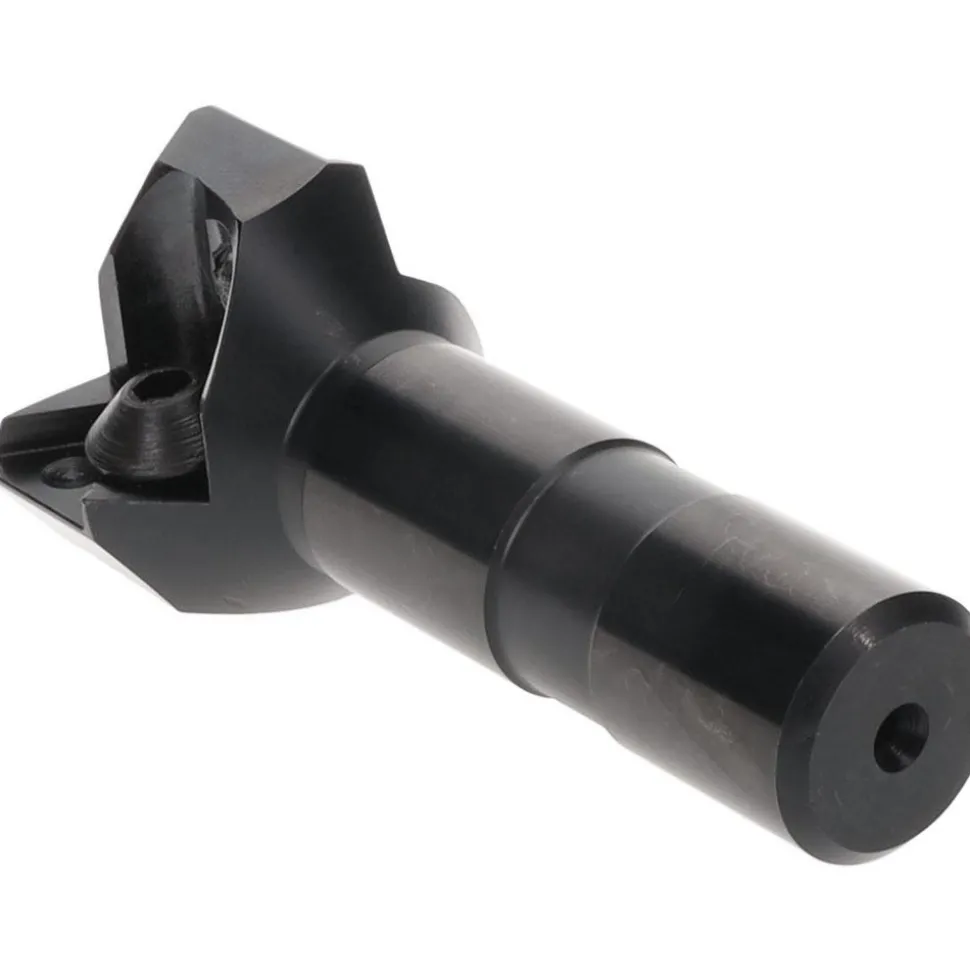

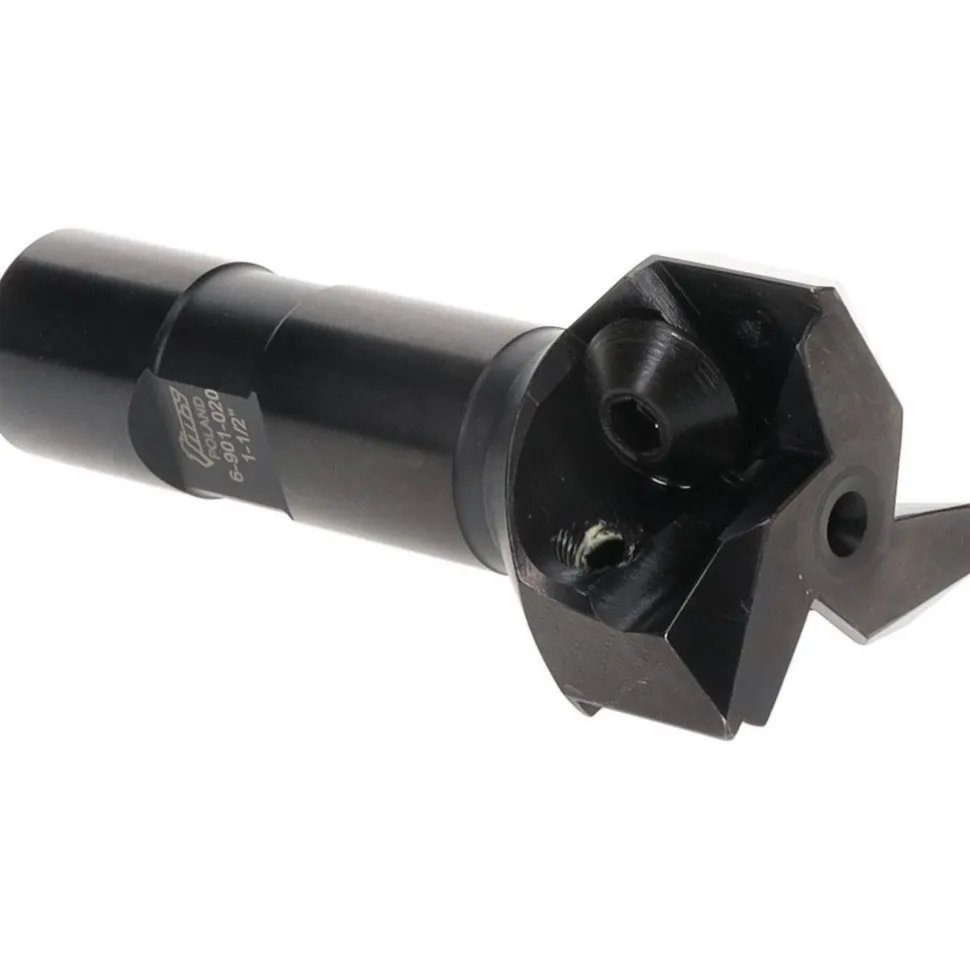

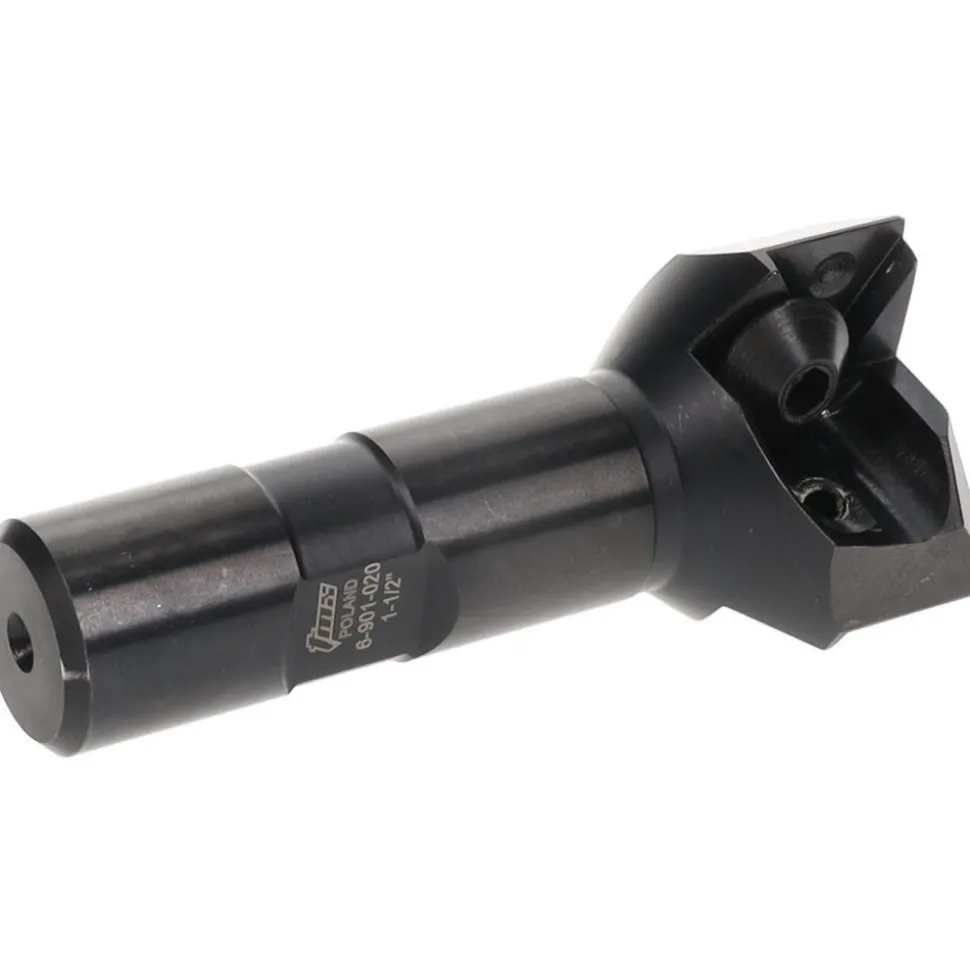

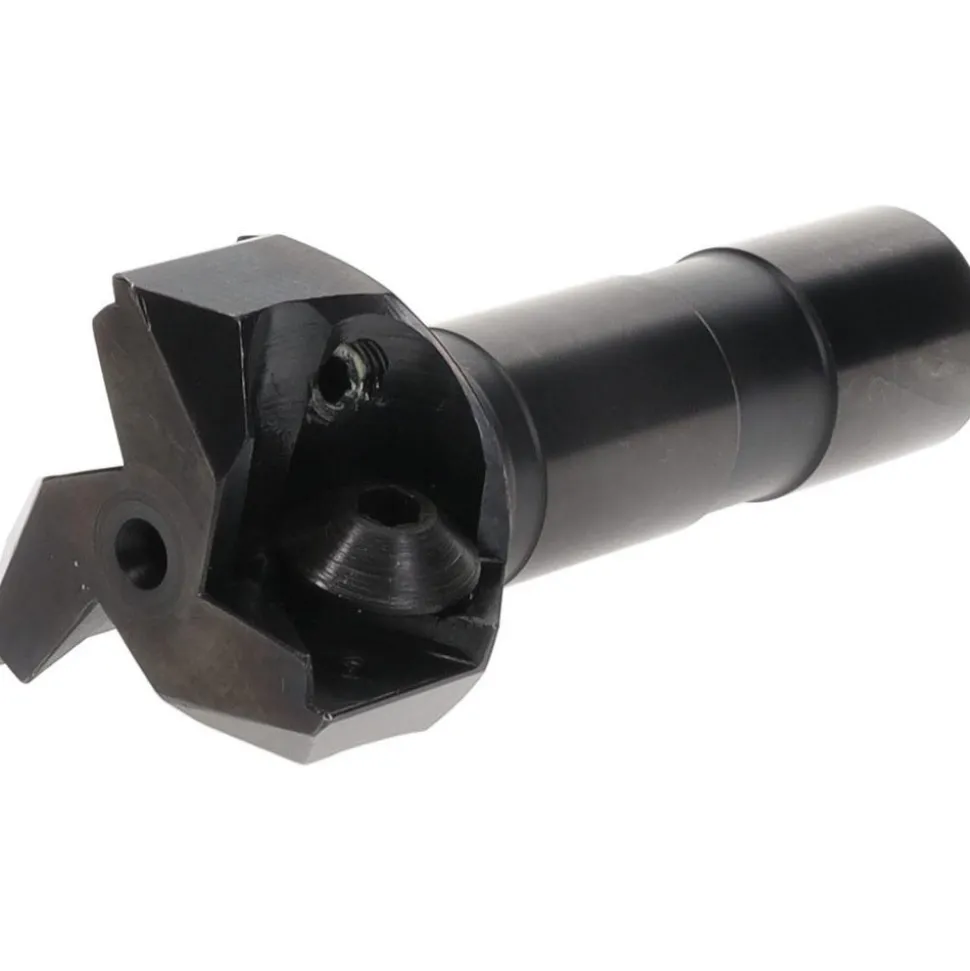

Indexable Square-Shoulder End Mill: 1-1/2X3/4" SHK, 1-1/2" Cut Dia, 0.656" Max Depth of Cut, 3/4" Dia Weldon Flat Shank

Indexable Square-Shoulder End Mill: 1-1/2X3/4″ SHK, 1-1/2″ Cut Dia, 0.656″ Max Depth of Cut, 3/4″ Dia Weldon Flat Shank

130,99 $

SKU: SKUJJqIIbESz3 Categories: Indexable Cutting Tools, Indexable Milling, Shop All Products Tag: Value Collection Brand: Value Collection

Description
Reviews (0)

Specifications

Cutting Diameter (Decimal Inch): 1.5000 in	Cutting Diameter: 1-1/2
Overall Length (Decimal Inch): 3.2500	Overall Length (Inch): 3-1/4
Maximum Depth of Cut (Decimal Inch): 0.6560	Cutter Style: TPG
Shank Type: Weldon Flat	Shank Diameter (Decimal Inch): 0.7500
Shank Diameter (Inch): 3/4	Insert Holding Method: Screw
Head Length (Inch): 1-7/32	Head Length (Decimal Inch): 1.2188
Insert Compatibility: TPC 32…; TPU 32.; TPG 32.	UNSPSC Code: 27112803
Number Of Flutes: 3	Number Of Cutter Inserts: 3
Coolant Through: No	Country of Origin: Poland
Cutting Diameter (Decimal Inch): 1.5000 in
Cutting Diameter: 1-1/2
Overall Length (Decimal Inch): 3.2500
Overall Length (Inch): 3-1/4
Maximum Depth of Cut (Decimal Inch): 0.6560
Cutter Style: TPG
Shank Type: Weldon Flat
Shank Diameter (Decimal Inch): 0.7500
Shank Diameter (Inch): 3/4
Insert Holding Method: Screw
Head Length (Inch): 1-7/32
Head Length (Decimal Inch): 1.2188
Insert Compatibility: TPC 32…; TPU 32.; TPG 32.
UNSPSC Code: 27112803
Number Of Flutes: 3
Number Of Cutter Inserts: 3
Coolant Through: No
Country of Origin: Poland
