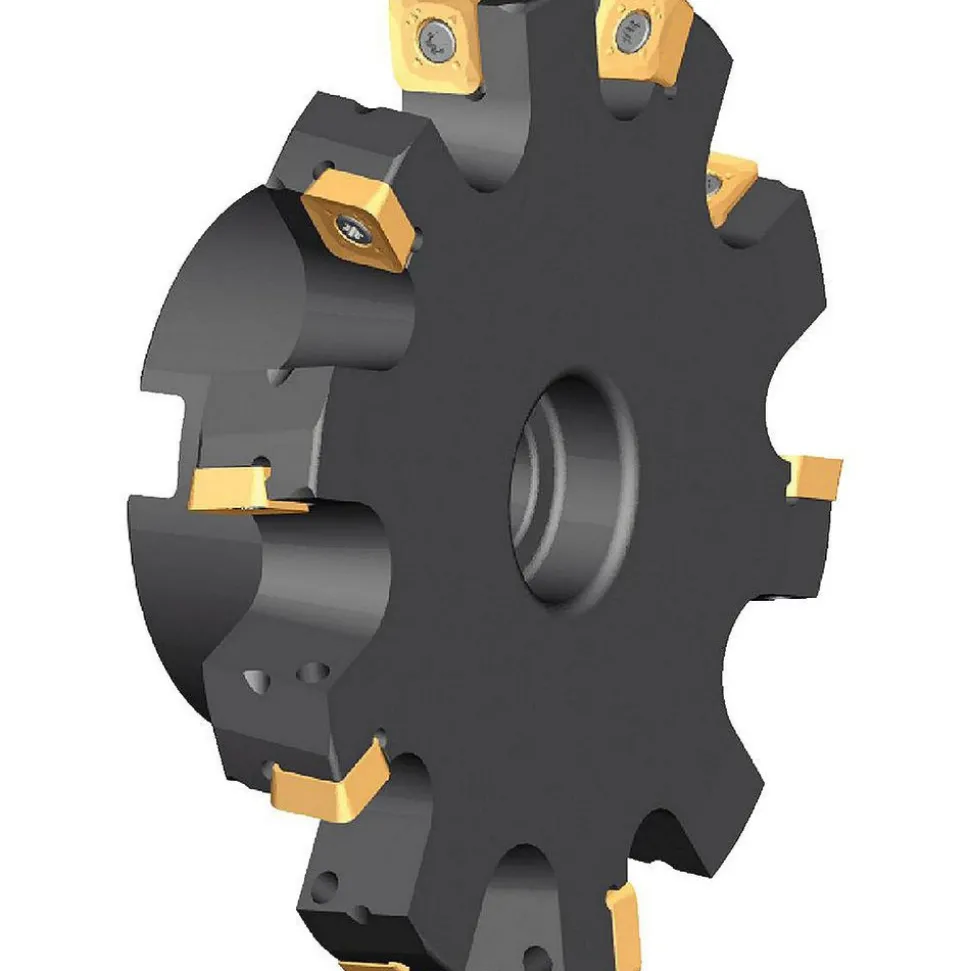

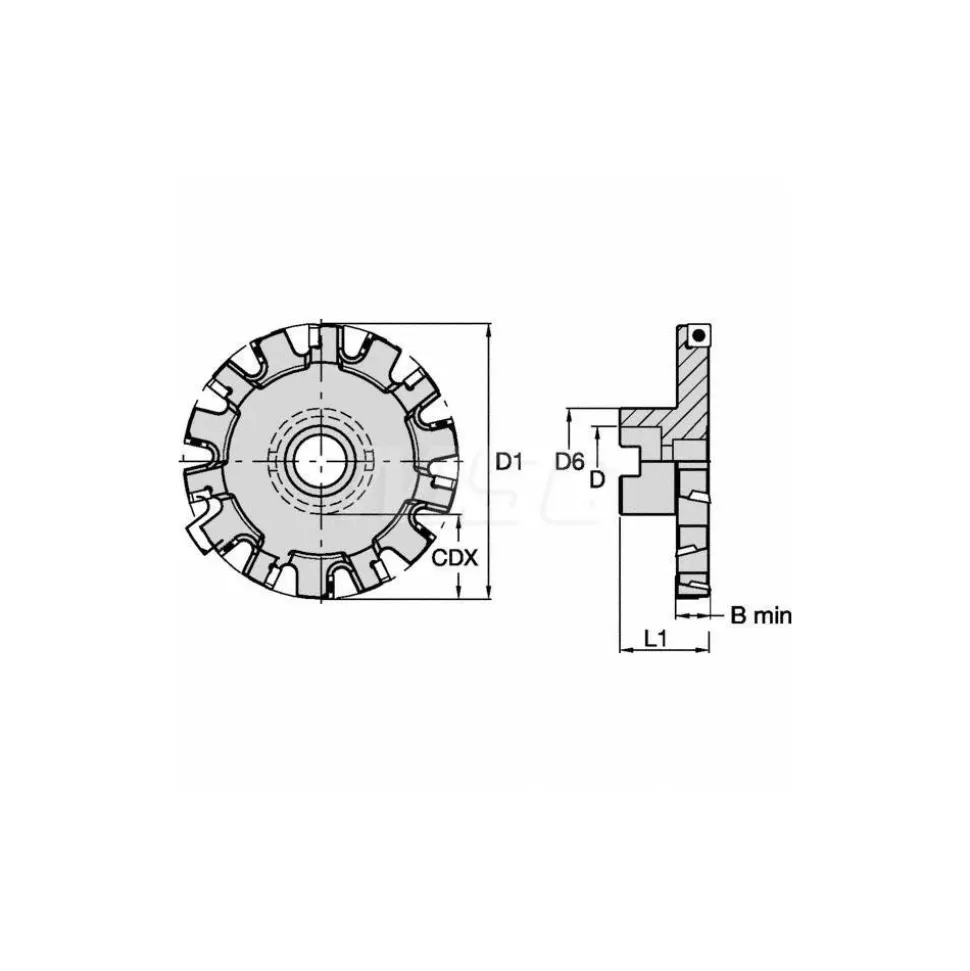

Indexable Slotting Cutter: 0.6140″ Cutting Width, 4.0000″ Cutter Dia, 0.8870″ Depth of Cut, 1.0000″ Hole Dia, 1.0000″ Shank Dia, Neutral
138,99 $
Specifications
| Maximum Depth of Cut (Decimal Inch): 0.8870 | Hole Diameter (Inch): 1 |
| Hole Diameter (Decimal Inch): 1.0000 | Cutter Diameter (Decimal Inch): 4.0000 |
| Cutter Diameter (Inch): 4 | Shank Diameter (Inch): 1 |
| Shank Diameter (Decimal Inch): 1.0000 | Cutting Direction: Neutral |
| Insert Holding Method: Screw | Number Of Cutter Inserts: 10 |
| Compatible Insert Style: SPPT; SPCT; SPET | Rake: Neutral |
| Series: KSSS | Toolholder Style: KSSS |
| Hub Diameter (Decimal Inch): 2.1320 | Maximum RPM: 17100 |
| Primary Workpiece Material: Non-Ferrous Metal; Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel | Primary Workpiece Material Code: P; S; H; K; M; N |
| Minimum Cutting Width (Decimal Inch): 0.6140 | Radius: No |
| UNSPSC Code: 23241629 | Manufacturers Catalog Number: KSSS400BSP10N625 |
| Overall Height (Decimal Inch): 1.5000 | Insert Inscribed Circle (mm): 10.00 |
| Number Of Teeth: 10 | Complete Insert Compatibility: SPCT 10T312PPFRLE; SPCT 10T316ENLD2; SPCT 10T3PPERLD2; SPCT 10T3PPFLLE; SPCT 10T320ENLD2; SPCT 10T312PPFLLE; SPCT 10T304PPERLD2; SPCT 10; SPCT 10T312PPERLD2; SPCT 10T316FNLE; SPCT 10T304PPELLD2; SPCT 10T304PPFLLE; SPCT 10T312PPELLD2; SPCT 10T3PPFRLE; SPCT 10T304PPFRLE; SPCT 10T3PPELLD2 |
| Country of Origin: UNITED STATES | |
| Maximum Depth of Cut (Decimal Inch): 0.8870 | |
| Hole Diameter (Inch): 1 | |
| Hole Diameter (Decimal Inch): 1.0000 | |
| Cutter Diameter (Decimal Inch): 4.0000 | |
| Cutter Diameter (Inch): 4 | |
| Shank Diameter (Inch): 1 | |
| Shank Diameter (Decimal Inch): 1.0000 | |
| Cutting Direction: Neutral | |
| Insert Holding Method: Screw | |
| Number Of Cutter Inserts: 10 | |
| Compatible Insert Style: SPPT; SPCT; SPET | |
| Rake: Neutral | |
| Series: KSSS | |
| Toolholder Style: KSSS | |
| Hub Diameter (Decimal Inch): 2.1320 | |
| Maximum RPM: 17100 | |
| Primary Workpiece Material: Non-Ferrous Metal; Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel | |
| Primary Workpiece Material Code: P; S; H; K; M; N | |
| Minimum Cutting Width (Decimal Inch): 0.6140 | |
| Radius: No | |
| UNSPSC Code: 23241629 | |
| Manufacturers Catalog Number: KSSS400BSP10N625 | |
| Overall Height (Decimal Inch): 1.5000 | |
| Insert Inscribed Circle (mm): 10.00 | |
| Number Of Teeth: 10 | |
| Complete Insert Compatibility: SPCT 10T312PPFRLE; SPCT 10T316ENLD2; SPCT 10T3PPERLD2; SPCT 10T3PPFLLE; SPCT 10T320ENLD2; SPCT 10T312PPFLLE; SPCT 10T304PPERLD2; SPCT 10; SPCT 10T312PPERLD2; SPCT 10T316FNLE; SPCT 10T304PPELLD2; SPCT 10T304PPFLLE; SPCT 10T312PPELLD2; SPCT 10T3PPFRLE; SPCT 10T304PPFRLE; SPCT 10T3PPELLD2 | |
| Country of Origin: UNITED STATES |
| MSC# | 93273340 |
| Mfr# | 2629780 |
