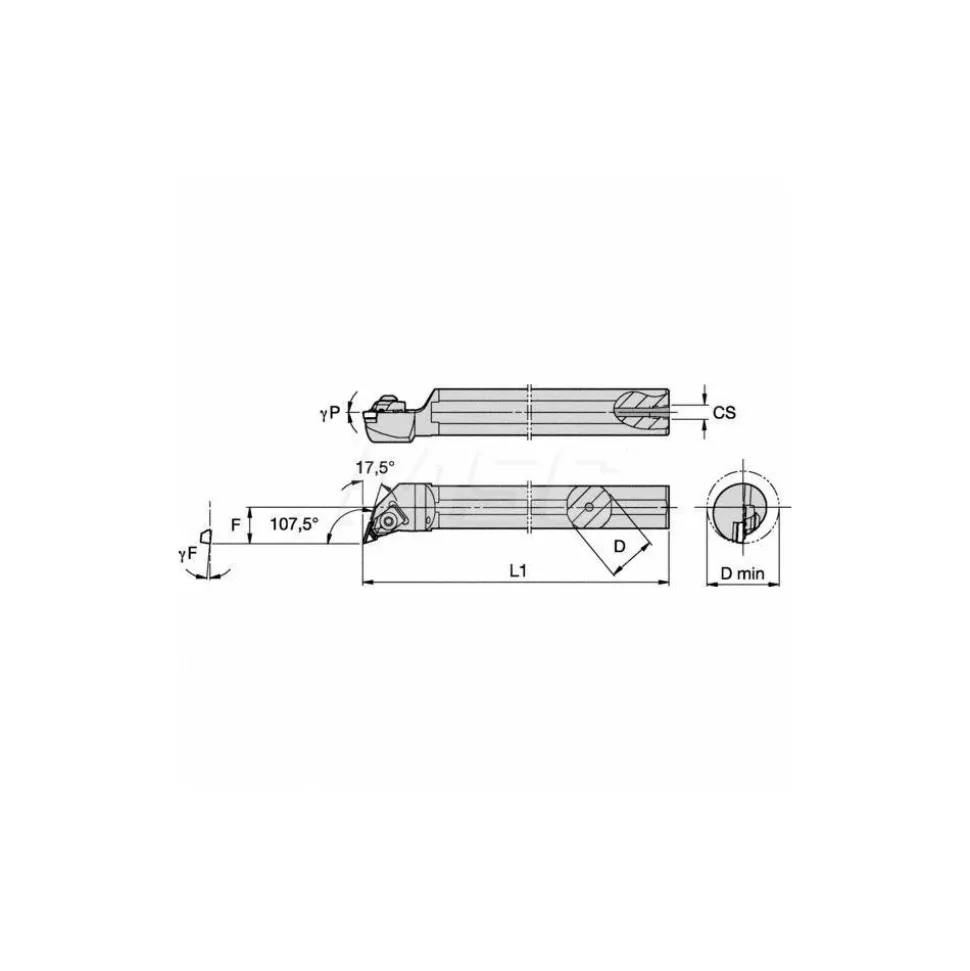

Indexable Profiling Toolholder: Internal, 17.5 ° Lead Angle
Original price was: 223,00 $.126,89 $Current price is: 126,89 $.
Specifications
| Internal or External: Internal | Hand of Holder: Right Hand |
| Compatible Insert Size Code: NP.. | Toolholder Style: A-NKQC |
| Rake: Neutral | Insert Holding Method: Clamp |
| Toolholder Material: Steel | Shank Width/Diameter (Decimal Inch): 0.5000 |
| Overall Length (mm): 203.20 | Shank Width/Diameter (mm): 12.70 |
| Overall Length (Inch): 8 | Overall Length (Decimal Inch): 8.0000 |
| Shank Width/Diameter (Inch): 1/2 | Series: Top Notch Profiling Boring Bar |
| Rake Angle: 0.000 | Lead Angle: 17.500 |
| Center to Cutting Edge (Decimal Inch): 0.3750 | Minimum Hole Diameter (mm): 17.02 |
| Minimum Hole Diameter (Decimal Inch): 0.6700 | Insert Inscribed Circle (Inch): 5/8 |
| Coolant Hole Thread Size (Inch): 1/16-27 NPT | UNSPSC Code: 23153308 |
| Complete Insert Compatibility: NP.. 51L | MSC/Manufacturer Number: A08NKQCR/L05 |
| Coolant Through: Yes | Country of Origin: UNITED STATES |
| Internal or External: Internal | |
| Hand of Holder: Right Hand | |
| Compatible Insert Size Code: NP.. | |
| Toolholder Style: A-NKQC | |
| Rake: Neutral | |
| Insert Holding Method: Clamp | |
| Toolholder Material: Steel | |
| Shank Width/Diameter (Decimal Inch): 0.5000 | |
| Overall Length (mm): 203.20 | |
| Shank Width/Diameter (mm): 12.70 | |
| Overall Length (Inch): 8 | |
| Overall Length (Decimal Inch): 8.0000 | |
| Shank Width/Diameter (Inch): 1/2 | |
| Series: Top Notch Profiling Boring Bar | |
| Rake Angle: 0.000 | |
| Lead Angle: 17.500 | |
| Center to Cutting Edge (Decimal Inch): 0.3750 | |
| Minimum Hole Diameter (mm): 17.02 | |
| Minimum Hole Diameter (Decimal Inch): 0.6700 | |
| Insert Inscribed Circle (Inch): 5/8 | |
| Coolant Hole Thread Size (Inch): 1/16-27 NPT | |
| UNSPSC Code: 23153308 | |
| Complete Insert Compatibility: NP.. 51L | |
| MSC/Manufacturer Number: A08NKQCR/L05 | |
| Coolant Through: Yes | |
| Country of Origin: UNITED STATES |
| MSC# | 82699471 |
| Mfr# | 1095915 |
| Big Book# | 921 |
