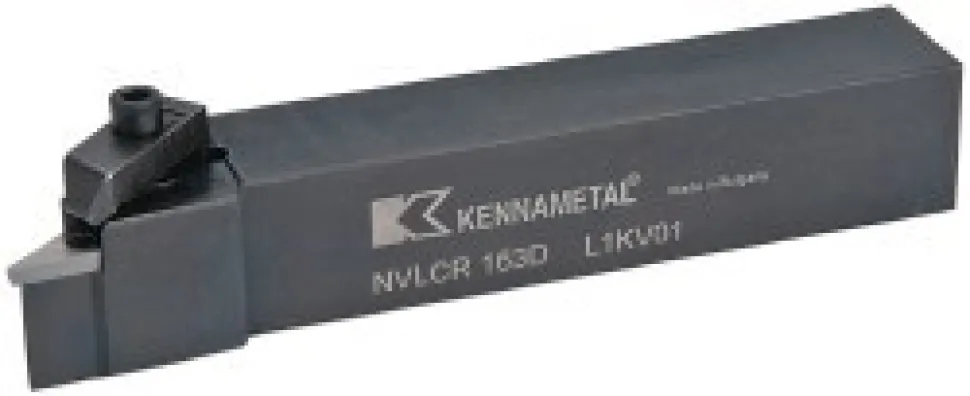

Indexable Profiling Toolholder: External, -5 ° Lead Angle

110,89 $

SKU: SKU1nhaPC6TW6 Categories: Indexable Cutting Tools, Indexable Turning & Boring, Shop All Products Tag: Kennametal Brand: Kennametal

Description
Reviews (0)

Specifications

Internal or External: External	Hand of Holder: Right Hand
Compatible Insert Size Code: VP..	Toolholder Style: NVLC
Rake: Neutral	Insert Holding Method: Clamp
Toolholder Material: Steel	Shank Height (mm): 25.40
Shank Height (Decimal Inch): 1.0000	Shank Width/Diameter (Decimal Inch): 1.0000
Overall Length (mm): 152.40	Shank Width/Diameter (mm): 25.40
Overall Length (Inch): 6	Overall Length (Decimal Inch): 6.0000
Series: Top Notch	Lead Angle: -5.000
Head Length (Decimal Inch): 1.4400	Head Length (mm): 36.53
Back of Bar to Cutting Edge (mm): 31.75	Back of Bar to Cutting Edge (Decimal Inch): 1.2500
Insert Inscribed Circle (Inch): 3/8	Insert Inscribed Circle (mm): 9.53
Insert Inscribed Circle (Decimal Inch): 0.3750	UNSPSC Code: 23153308
Complete Insert Compatibility: VP.. 332	MSC/Manufacturer Number: NVLCR/L163D
Coolant Through: No
Internal or External: External
Hand of Holder: Right Hand
Compatible Insert Size Code: VP..
Toolholder Style: NVLC
Rake: Neutral
Insert Holding Method: Clamp
Toolholder Material: Steel
Shank Height (mm): 25.40
Shank Height (Decimal Inch): 1.0000
Shank Width/Diameter (Decimal Inch): 1.0000
Overall Length (mm): 152.40
Shank Width/Diameter (mm): 25.40
Overall Length (Inch): 6
Overall Length (Decimal Inch): 6.0000
Series: Top Notch
Lead Angle: -5.000
Head Length (Decimal Inch): 1.4400
Head Length (mm): 36.53
Back of Bar to Cutting Edge (mm): 31.75
Back of Bar to Cutting Edge (Decimal Inch): 1.2500
Insert Inscribed Circle (Inch): 3/8
Insert Inscribed Circle (mm): 9.53
Insert Inscribed Circle (Decimal Inch): 0.3750
UNSPSC Code: 23153308
Complete Insert Compatibility: VP.. 332
MSC/Manufacturer Number: NVLCR/L163D
Coolant Through: No
