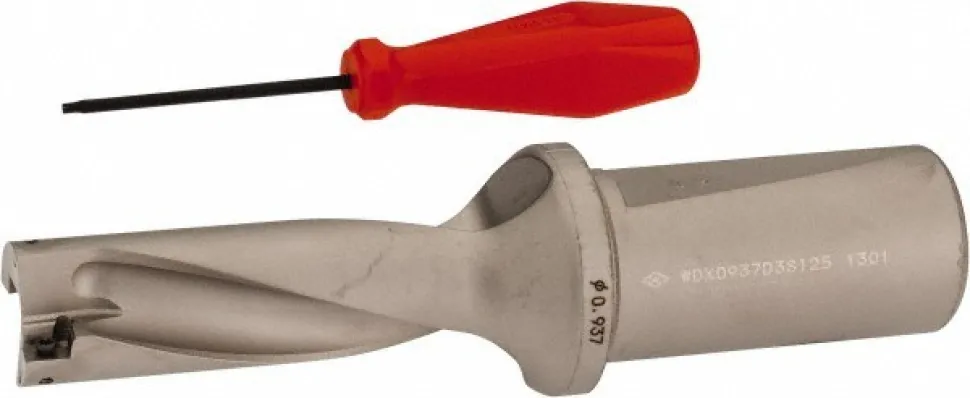

Indexable Insert Drill: WDX0937D3S125, 15/16″ Max Dia, 3xD, 1-1/4″ Shank Dia
134,99 $
Specifications
| Compatible Drill Style: WDX | Maximum Drill Diameter (Inch): 15/16 |
| Maximum Drill Diameter (Decimal Inch): 0.9370 | Maximum Drill Depth (Decimal Inch): 2.9310 |
| Shank Type: Whistle Notch | Shank Diameter (Inch): 1-1/4 |
| Shank Diameter (Decimal Inch): 1.2500 | Number of Drill Inserts: 2 |
| Cutting Direction: Right Hand | Maximum Drill Depth Range (Decimal Inch): 2.0000 to 3.0000 |
| Tool Material: Steel | Compatible Insert Style: WDXT |
| Drill Depth by Diameter Ratio: 3xD | Series: SumiDrill |
| Flute Length (Decimal Inch): 2.9310 | Body Length (Decimal Inch): 3.6390 |
| Shank Length (Decimal Inch): 2.5000 | Neck Diameter (Inch): 1.6140 |
| Coolant Hole Thread Size: “1/4-18 NPT” | Tool Application: Drilling |
| Tool Performance: General Purpose | UNSPSC Code: 23291503 |
| Insert Compatibility: WDXT 073506 | Collar Diameter (Decimal Inch): 1.6140 |
| Coolant Through: Yes | Country of Origin: UNITED STATES |
| Compatible Drill Style: WDX | |
| Maximum Drill Diameter (Inch): 15/16 | |
| Maximum Drill Diameter (Decimal Inch): 0.9370 | |
| Maximum Drill Depth (Decimal Inch): 2.9310 | |
| Shank Type: Whistle Notch | |
| Shank Diameter (Inch): 1-1/4 | |
| Shank Diameter (Decimal Inch): 1.2500 | |
| Number of Drill Inserts: 2 | |
| Cutting Direction: Right Hand | |
| Maximum Drill Depth Range (Decimal Inch): 2.0000 to 3.0000 | |
| Tool Material: Steel | |
| Compatible Insert Style: WDXT | |
| Drill Depth by Diameter Ratio: 3xD | |
| Series: SumiDrill | |
| Flute Length (Decimal Inch): 2.9310 | |
| Body Length (Decimal Inch): 3.6390 | |
| Shank Length (Decimal Inch): 2.5000 | |
| Neck Diameter (Inch): 1.6140 | |
| Coolant Hole Thread Size: “1/4-18 NPT” | |
| Tool Application: Drilling | |
| Tool Performance: General Purpose | |
| UNSPSC Code: 23291503 | |
| Insert Compatibility: WDXT 073506 | |
| Collar Diameter (Decimal Inch): 1.6140 | |
| Coolant Through: Yes | |
| Country of Origin: UNITED STATES |
| MSC# | 06704696 |
| Mfr# | 2A00W2M |
