Sale!

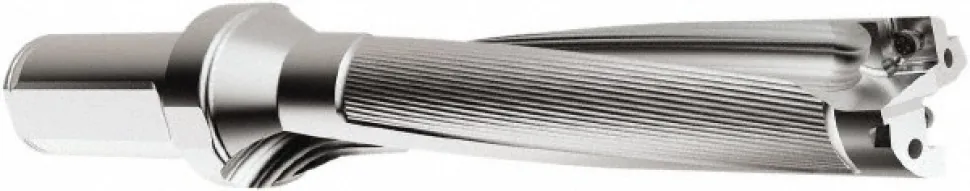

Indexable Insert Drill: SD525-0750-375-1000R7, 3/4″ Max Dia, 3-3/4″ Max Depth, 5xD, 1″ Shank Dia
Original price was: 1 002,00 $.134,89 $Current price is: 134,89 $.
Specifications
| Compatible Drill Style: SD525 | Maximum Drill Diameter (mm): 19.97 |
| Maximum Drill Diameter (Inch): 3/4 | Maximum Drill Diameter (Decimal Inch): 0.7500 |
| Maximum Drill Depth (Inch): 3-3/4 | Maximum Drill Depth (Decimal Inch): 3.7500 |
| Shank Type: Flange; Weldon Flat | Shank Diameter (Inch): 1 |
| Shank Diameter (Decimal Inch): 1.0000 | Number of Drill Inserts: 2 |
| Cutting Direction: Right Hand | Maximum Drill Depth Range (Decimal Inch): 3.0000 to 4.0000 |
| Tool Material: Steel | Compatible Insert Style: SCGX; SPGX |
| Compatible Insert Size Code: 050204; 0602 | Drill Depth by Diameter Ratio: 5xD |
| Coolant Entry Style Code: 1-Axial Concentric Entry | Overall Length (Decimal Inch): 7.1810 |
| Series: SD525 | Flute Length (Decimal Inch): 3.9470 |
| Flute Length (mm): 100.25 | Body Length (mm): 125.25 |
| Body Length (Decimal Inch): 4.9310 | Shank Length (Decimal Inch): 2.2500 |
| Neck Diameter (Inch): 1.3780 | Modular Connection Size: R7 |
| Tool Application: Drilling | Tool Performance: General Purpose |
| Insert Size (Decimal Inch): 0.2500; 0.2190 | UNSPSC Code: 23291503 |
| Insert Compatibility: SCGX050204; SPGX0602 | Collar Diameter (Decimal Inch): 1.3780 |
| Collar Diameter (mm): 35.00 | Insert Lock Screw: C02205-T07P; C02245-T07P |
| Coolant Through: Yes | Country of Origin: India |
| Compatible Drill Style: SD525 | |
| Maximum Drill Diameter (mm): 19.97 | |
| Maximum Drill Diameter (Inch): 3/4 | |
| Maximum Drill Diameter (Decimal Inch): 0.7500 | |
| Maximum Drill Depth (Inch): 3-3/4 | |
| Maximum Drill Depth (Decimal Inch): 3.7500 | |
| Shank Type: Flange; Weldon Flat | |
| Shank Diameter (Inch): 1 | |
| Shank Diameter (Decimal Inch): 1.0000 | |
| Number of Drill Inserts: 2 | |
| Cutting Direction: Right Hand | |
| Maximum Drill Depth Range (Decimal Inch): 3.0000 to 4.0000 | |
| Tool Material: Steel | |
| Compatible Insert Style: SCGX; SPGX | |
| Compatible Insert Size Code: 050204; 0602 | |
| Drill Depth by Diameter Ratio: 5xD | |
| Coolant Entry Style Code: 1-Axial Concentric Entry | |
| Overall Length (Decimal Inch): 7.1810 | |
| Series: SD525 | |
| Flute Length (Decimal Inch): 3.9470 | |
| Flute Length (mm): 100.25 | |
| Body Length (mm): 125.25 | |
| Body Length (Decimal Inch): 4.9310 | |
| Shank Length (Decimal Inch): 2.2500 | |
| Neck Diameter (Inch): 1.3780 | |
| Modular Connection Size: R7 | |
| Tool Application: Drilling | |
| Tool Performance: General Purpose | |
| Insert Size (Decimal Inch): 0.2500; 0.2190 | |
| UNSPSC Code: 23291503 | |
| Insert Compatibility: SCGX050204; SPGX0602 | |
| Collar Diameter (Decimal Inch): 1.3780 | |
| Collar Diameter (mm): 35.00 | |
| Insert Lock Screw: C02205-T07P; C02245-T07P | |
| Coolant Through: Yes | |
| Country of Origin: India |
| MSC# | 39331525 |
| Mfr# | 03079565 |
