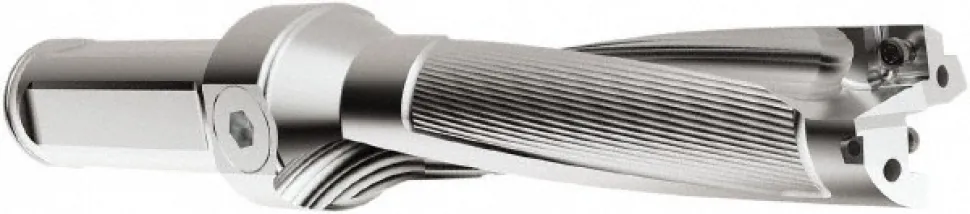

Indexable Insert Drill: SD524-1250-500-1500R7C, 1-1/4″ Max Dia, 5″ Max Depth, 4xD, 1-1/2″ Shank Dia
Original price was: 1 101,00 $.136,89 $Current price is: 136,89 $.
Specifications
| Compatible Drill Style: SD524 | Maximum Drill Diameter (mm): 32.31 |
| Maximum Drill Diameter (Inch): 1-1/4 | Maximum Drill Diameter (Decimal Inch): 1.2740 |
| Maximum Drill Depth (Inch): 5 | Maximum Drill Depth (Decimal Inch): 5.0000 |
| Shank Type: Flange; Flatted | Shank Diameter (Inch): 1-1/2 |
| Shank Diameter (Decimal Inch): 1.5000 | Number of Drill Inserts: 2 |
| Cutting Direction: Right Hand | Maximum Drill Depth Range (Decimal Inch): 5.0000 to 7.0000 |
| Tool Material: Steel | Compatible Insert Style: SCGX; SPGX |
| Compatible Insert Size Code: 09T308; 11T3 | Drill Depth by Diameter Ratio: 4xD |
| Coolant Entry Style Code: 3- Axial Concentric & Radial | Overall Length (Decimal Inch): 9.1280 |
| Series: SD524 | Flute Length (Decimal Inch): 5.1970 |
| Flute Length (mm): 132.00 | Body Length (mm): 162.00 |
| Body Length (Decimal Inch): 6.3780 | Shank Length (Decimal Inch): 2.7500 |
| Shank Length (mm): 66.68 | Neck Diameter (Inch): 1.9690 |
| Modular Connection Size: R7-C | Tool Application: Drilling |
| Tool Performance: General Purpose | Insert Size (Decimal Inch): 0.4530; 0.3750 |
| UNSPSC Code: 23291503 | Insert Compatibility: SCGX09T308; SPGX11T3 |
| Collar Diameter (Decimal Inch): 1.9690 | Collar Diameter (mm): 50.00 |
| Body Side Coolant Hole Thread Size (Inch): 1/4 | Insert Lock Screw: C03508-T15P |
| Coolant Through: Yes | Country of Origin: India |
| Compatible Drill Style: SD524 | |
| Maximum Drill Diameter (mm): 32.31 | |
| Maximum Drill Diameter (Inch): 1-1/4 | |
| Maximum Drill Diameter (Decimal Inch): 1.2740 | |
| Maximum Drill Depth (Inch): 5 | |
| Maximum Drill Depth (Decimal Inch): 5.0000 | |
| Shank Type: Flange; Flatted | |
| Shank Diameter (Inch): 1-1/2 | |
| Shank Diameter (Decimal Inch): 1.5000 | |
| Number of Drill Inserts: 2 | |
| Cutting Direction: Right Hand | |
| Maximum Drill Depth Range (Decimal Inch): 5.0000 to 7.0000 | |
| Tool Material: Steel | |
| Compatible Insert Style: SCGX; SPGX | |
| Compatible Insert Size Code: 09T308; 11T3 | |
| Drill Depth by Diameter Ratio: 4xD | |
| Coolant Entry Style Code: 3- Axial Concentric & Radial | |
| Overall Length (Decimal Inch): 9.1280 | |
| Series: SD524 | |
| Flute Length (Decimal Inch): 5.1970 | |
| Flute Length (mm): 132.00 | |
| Body Length (mm): 162.00 | |
| Body Length (Decimal Inch): 6.3780 | |
| Shank Length (Decimal Inch): 2.7500 | |
| Shank Length (mm): 66.68 | |
| Neck Diameter (Inch): 1.9690 | |
| Modular Connection Size: R7-C | |
| Tool Application: Drilling | |
| Tool Performance: General Purpose | |
| Insert Size (Decimal Inch): 0.4530; 0.3750 | |
| UNSPSC Code: 23291503 | |
| Insert Compatibility: SCGX09T308; SPGX11T3 | |
| Collar Diameter (Decimal Inch): 1.9690 | |
| Collar Diameter (mm): 50.00 | |
| Body Side Coolant Hole Thread Size (Inch): 1/4 | |
| Insert Lock Screw: C03508-T15P | |
| Coolant Through: Yes | |
| Country of Origin: India |
| MSC# | 39342803 |
| Mfr# | 03080313 |
