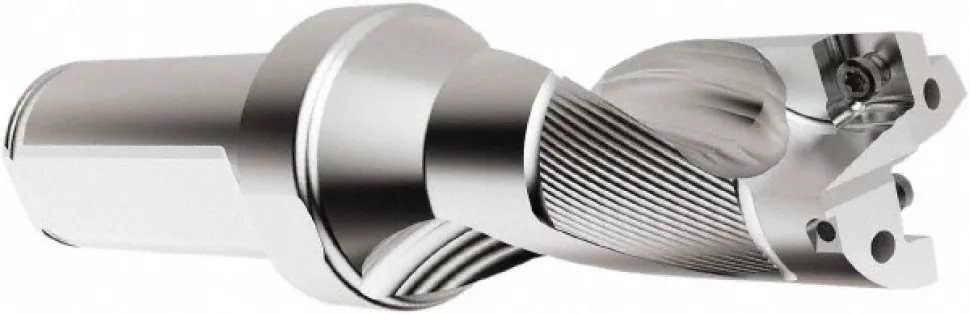

Indexable Insert Drill: SD522-0875-175-1000R7, 7/8″ Max Dia, 1-3/4″ Max Depth, 2xD, 1″ Shank Dia
132,89 $
Specifications
| Compatible Drill Style: SD522 | Maximum Drill Diameter (mm): 23.23 |
| Maximum Drill Diameter (Inch): 7/8 | Maximum Drill Diameter (Decimal Inch): 0.9150 |
| Maximum Drill Depth (Inch): 1-3/4 | Maximum Drill Depth (Decimal Inch): 1.7500 |
| Shank Type: Flange; Weldon Flat | Shank Diameter (Inch): 1 |
| Shank Diameter (Decimal Inch): 1.0000 | Number of Drill Inserts: 2 |
| Cutting Direction: Right Hand | Maximum Drill Depth Range (Decimal Inch): 1.0000 to 2.0000 |
| Tool Material: Steel | Compatible Insert Style: SCGX; SPGX |
| Compatible Insert Size Code: 060204; 0703 | Drill Depth by Diameter Ratio: 2xD |
| Coolant Entry Style Code: 1-Axial Concentric Entry | Overall Length (Decimal Inch): 5.1810 |
| Series: SD522 | Flute Length (Decimal Inch): 1.9470 |
| Flute Length (mm): 49.45 | Body Length (mm): 74.45 |
| Body Length (Decimal Inch): 2.9310 | Shank Length (Decimal Inch): 2.2500 |
| Neck Diameter (Inch): 1.3780 | Modular Connection Size: R7 |
| Tool Application: Drilling | Tool Performance: General Purpose |
| Insert Size (Decimal Inch): 0.3125; 0.2500 | UNSPSC Code: 23291503 |
| Insert Compatibility: SPGX0703; SCGX060204 | Collar Diameter (Decimal Inch): 1.3780 |
| Collar Diameter (mm): 35.00 | Insert Lock Screw: C02506-T08P |
| Coolant Through: Yes | Country of Origin: India |
| Compatible Drill Style: SD522 | |
| Maximum Drill Diameter (mm): 23.23 | |
| Maximum Drill Diameter (Inch): 7/8 | |
| Maximum Drill Diameter (Decimal Inch): 0.9150 | |
| Maximum Drill Depth (Inch): 1-3/4 | |
| Maximum Drill Depth (Decimal Inch): 1.7500 | |
| Shank Type: Flange; Weldon Flat | |
| Shank Diameter (Inch): 1 | |
| Shank Diameter (Decimal Inch): 1.0000 | |
| Number of Drill Inserts: 2 | |
| Cutting Direction: Right Hand | |
| Maximum Drill Depth Range (Decimal Inch): 1.0000 to 2.0000 | |
| Tool Material: Steel | |
| Compatible Insert Style: SCGX; SPGX | |
| Compatible Insert Size Code: 060204; 0703 | |
| Drill Depth by Diameter Ratio: 2xD | |
| Coolant Entry Style Code: 1-Axial Concentric Entry | |
| Overall Length (Decimal Inch): 5.1810 | |
| Series: SD522 | |
| Flute Length (Decimal Inch): 1.9470 | |
| Flute Length (mm): 49.45 | |
| Body Length (mm): 74.45 | |
| Body Length (Decimal Inch): 2.9310 | |
| Shank Length (Decimal Inch): 2.2500 | |
| Neck Diameter (Inch): 1.3780 | |
| Modular Connection Size: R7 | |
| Tool Application: Drilling | |
| Tool Performance: General Purpose | |
| Insert Size (Decimal Inch): 0.3125; 0.2500 | |
| UNSPSC Code: 23291503 | |
| Insert Compatibility: SPGX0703; SCGX060204 | |
| Collar Diameter (Decimal Inch): 1.3780 | |
| Collar Diameter (mm): 35.00 | |
| Insert Lock Screw: C02506-T08P | |
| Coolant Through: Yes | |
| Country of Origin: India |
| MSC# | 39324330 |
| Mfr# | 03080718 |
