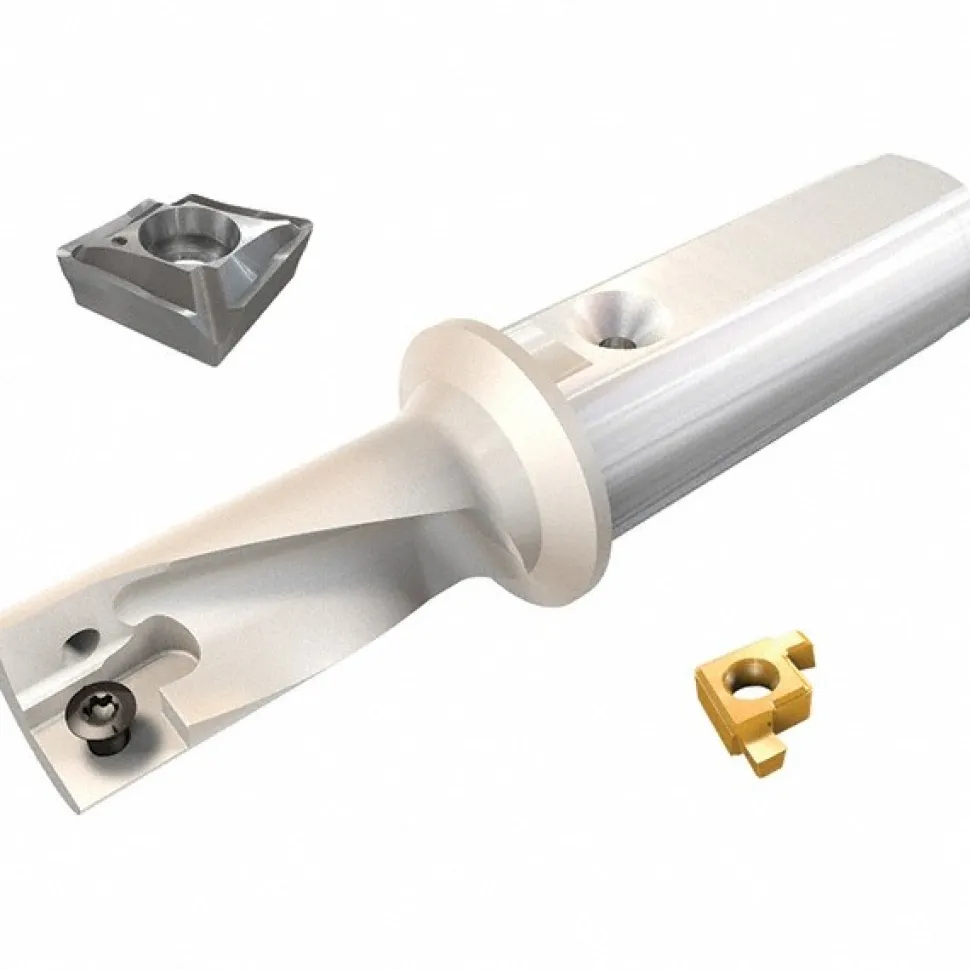

Indexable Insert Drill: DRGMF-16R2.25D-0755A08, 0.6300″ Max Dia, 1.4200″ Max Depth, 2.25xD, 0.7500″ Shank Dia
138,89 $
Specifications
| Compatible Drill Style: DR-MF | Drill Diameter (Decimal Inch): 0.6300 |
| Maximum Drill Diameter (Decimal Inch): 0.6300 | Drill Diameter (mm): 16.00 |
| Maximum Drill Depth (Decimal Inch): 1.4200 | Maximum Drill Depth (mm): 36.06 |
| Shank Type: Weldon Flat | Shank Diameter (Decimal Inch): 0.7500 |
| Number of Drill Inserts: 1 | Cutting Direction: Right Hand |
| Maximum Drill Depth Range (Decimal Inch): 0.0000 to 1.5000 | Tool Material: Steel |
| Compatible Insert Style: XCMT-MG; XCMT-MF | Compatible Insert Size Code: 08 Series |
| Drill Depth by Diameter Ratio: 2.25xD | Overall Length (Decimal Inch): 3.7000 |
| Series: DRG-MF | Flute Length (Decimal Inch): 1.4200 |
| Body Length (Decimal Inch): 1.7300 | Shank Length (Decimal Inch): 1.9700 |
| Tool Application: Facing; Internal Grooving; Boring | UNSPSC Code: 23291503 |
| Insert Compatibility: XCMT-MG; XCMT-MF | Coolant Through: Yes |
| Country of Origin: South Korea | |
| Compatible Drill Style: DR-MF | |
| Drill Diameter (Decimal Inch): 0.6300 | |
| Maximum Drill Diameter (Decimal Inch): 0.6300 | |
| Drill Diameter (mm): 16.00 | |
| Maximum Drill Depth (Decimal Inch): 1.4200 | |
| Maximum Drill Depth (mm): 36.06 | |
| Shank Type: Weldon Flat | |
| Shank Diameter (Decimal Inch): 0.7500 | |
| Number of Drill Inserts: 1 | |
| Cutting Direction: Right Hand | |
| Maximum Drill Depth Range (Decimal Inch): 0.0000 to 1.5000 | |
| Tool Material: Steel | |
| Compatible Insert Style: XCMT-MG; XCMT-MF | |
| Compatible Insert Size Code: 08 Series | |
| Drill Depth by Diameter Ratio: 2.25xD | |
| Overall Length (Decimal Inch): 3.7000 | |
| Series: DRG-MF | |
| Flute Length (Decimal Inch): 1.4200 | |
| Body Length (Decimal Inch): 1.7300 | |
| Shank Length (Decimal Inch): 1.9700 | |
| Tool Application: Facing; Internal Grooving; Boring | |
| UNSPSC Code: 23291503 | |
| Insert Compatibility: XCMT-MG; XCMT-MF | |
| Coolant Through: Yes | |
| Country of Origin: South Korea |
| MSC# | 68485747 |
| Mfr# | 3203775 |
