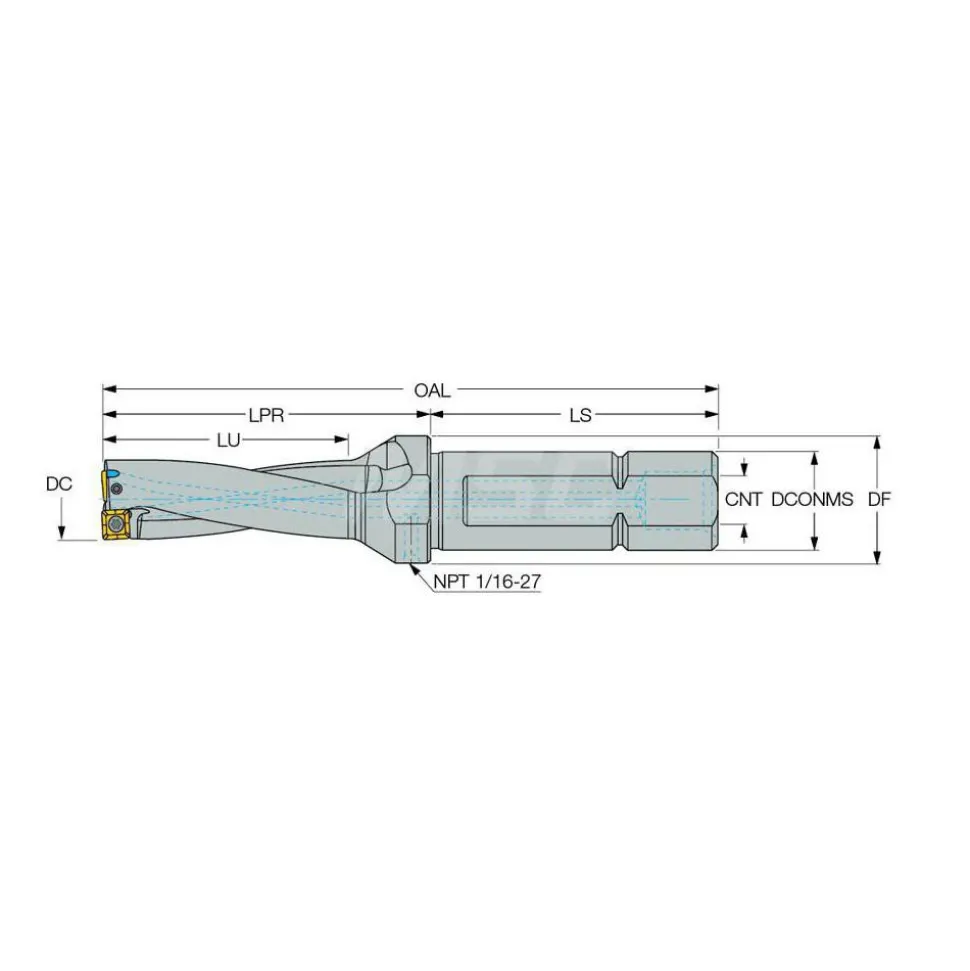

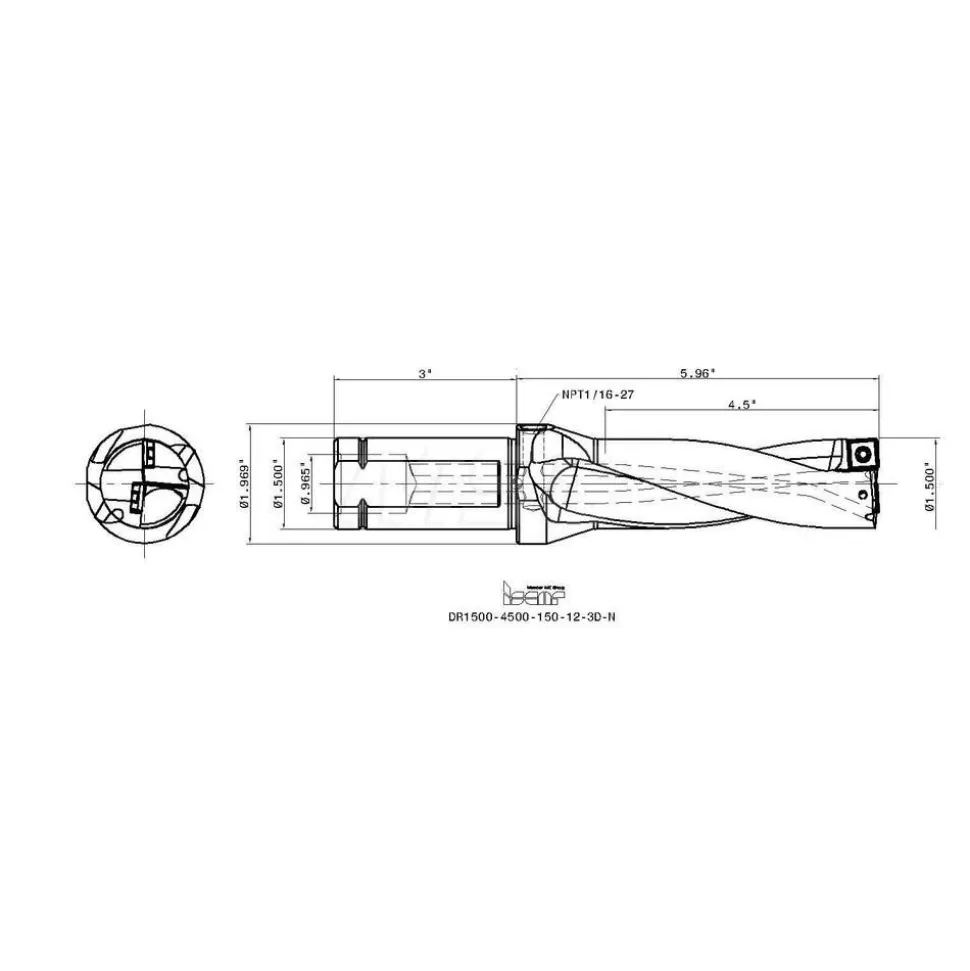

Indexable Insert Drill: DR15004500150123DN, 1-1/2″ Max Dia, 4-1/2″ Max Depth, 3xD, 1-1/2″ Shank Dia
Original price was: 866,00 $.140,89 $Current price is: 140,89 $.
Specifications
| Compatible Drill Style: DR | Maximum Drill Diameter (Inch): 1-1/2 |
| Maximum Drill Diameter (Decimal Inch): 1.6500 | Maximum Drill Depth (Inch): 4-1/2 |
| Maximum Drill Depth (Decimal Inch): 4.5000 | Shank Type: Flange; Weldon Flat |
| Shank Diameter (Inch): 1-1/2 | Shank Diameter (Decimal Inch): 1.5000 |
| Number of Drill Inserts: 2 | Cutting Direction: Right Hand |
| Maximum Drill Depth Range (Decimal Inch): 4.0000 to 5.0000 | Tool Material: Steel |
| Compatible Insert Style: SOMT | Compatible Insert Size Code: 120408 |
| Drill Depth by Diameter Ratio: 3xD | Coolant Entry Style Code: 1-Axial Concentric Entry |
| Overall Length (Decimal Inch): 8.9600 | Series: DR-3D-N |
| Flute Length (Decimal Inch): 4.5000 | Body Length (Decimal Inch): 5.9600 |
| Shank Length (Decimal Inch): 3.0000 | Neck Diameter (Inch): 1.9690 |
| Modular Connection Size: 1-1/2 in | Coolant Hole Thread Size: “1/16-27 NPT” |
| Tool Application: Drilling | Tool Performance: General Purpose |
| Insert Size (Decimal Inch): 0.5000 | UNSPSC Code: 23291503 |
| Insert Compatibility: SOMT120408 | Collar Diameter (Decimal Inch): 1.9690 |
| Body Side Coolant Hole Thread Size (Inch): 1/16-27 | Insert Lock Screw: SR 14-544/S |
| Coolant Through: Yes | Country of Origin: Israel |
| Compatible Drill Style: DR | |
| Maximum Drill Diameter (Inch): 1-1/2 | |
| Maximum Drill Diameter (Decimal Inch): 1.6500 | |
| Maximum Drill Depth (Inch): 4-1/2 | |
| Maximum Drill Depth (Decimal Inch): 4.5000 | |
| Shank Type: Flange; Weldon Flat | |
| Shank Diameter (Inch): 1-1/2 | |
| Shank Diameter (Decimal Inch): 1.5000 | |
| Number of Drill Inserts: 2 | |
| Cutting Direction: Right Hand | |
| Maximum Drill Depth Range (Decimal Inch): 4.0000 to 5.0000 | |
| Tool Material: Steel | |
| Compatible Insert Style: SOMT | |
| Compatible Insert Size Code: 120408 | |
| Drill Depth by Diameter Ratio: 3xD | |
| Coolant Entry Style Code: 1-Axial Concentric Entry | |
| Overall Length (Decimal Inch): 8.9600 | |
| Series: DR-3D-N | |
| Flute Length (Decimal Inch): 4.5000 | |
| Body Length (Decimal Inch): 5.9600 | |
| Shank Length (Decimal Inch): 3.0000 | |
| Neck Diameter (Inch): 1.9690 | |
| Modular Connection Size: 1-1/2 in | |
| Coolant Hole Thread Size: “1/16-27 NPT” | |
| Tool Application: Drilling | |
| Tool Performance: General Purpose | |
| Insert Size (Decimal Inch): 0.5000 | |
| UNSPSC Code: 23291503 | |
| Insert Compatibility: SOMT120408 | |
| Collar Diameter (Decimal Inch): 1.9690 | |
| Body Side Coolant Hole Thread Size (Inch): 1/16-27 | |
| Insert Lock Screw: SR 14-544/S | |
| Coolant Through: Yes | |
| Country of Origin: Israel |
| MSC# | 91104612 |
| Mfr# | 3201851 |
