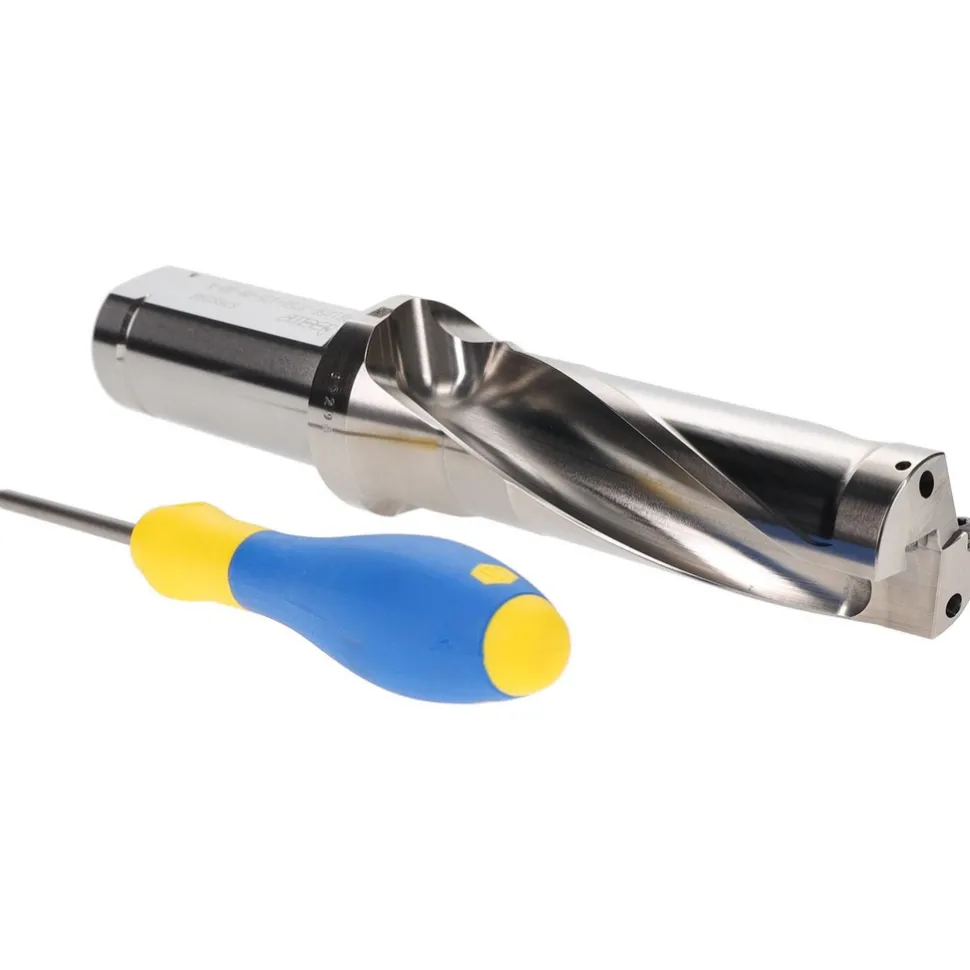

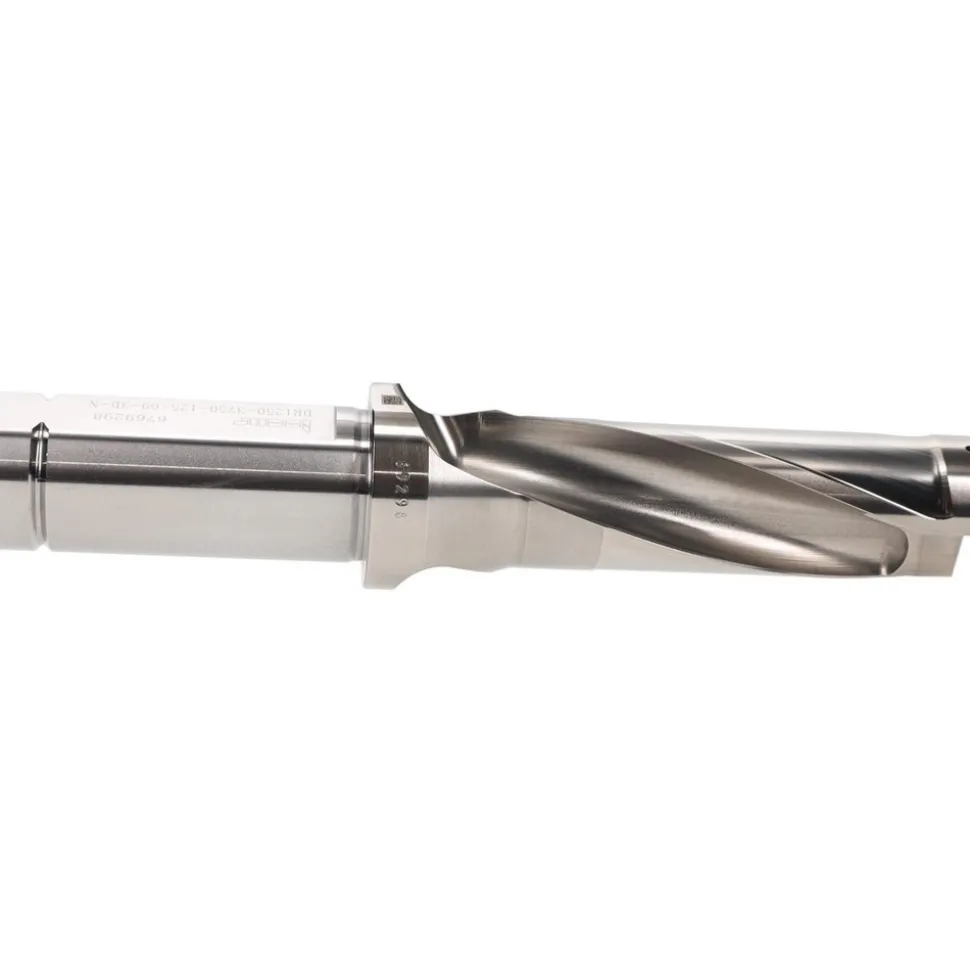

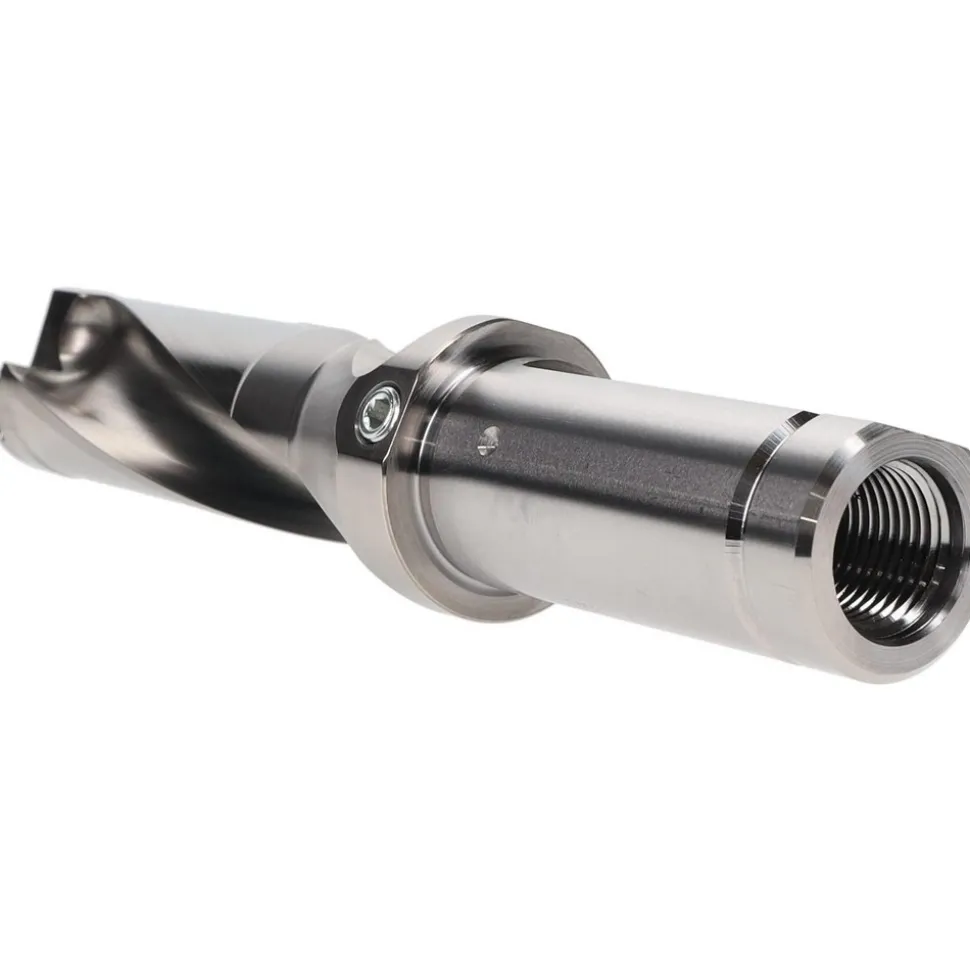

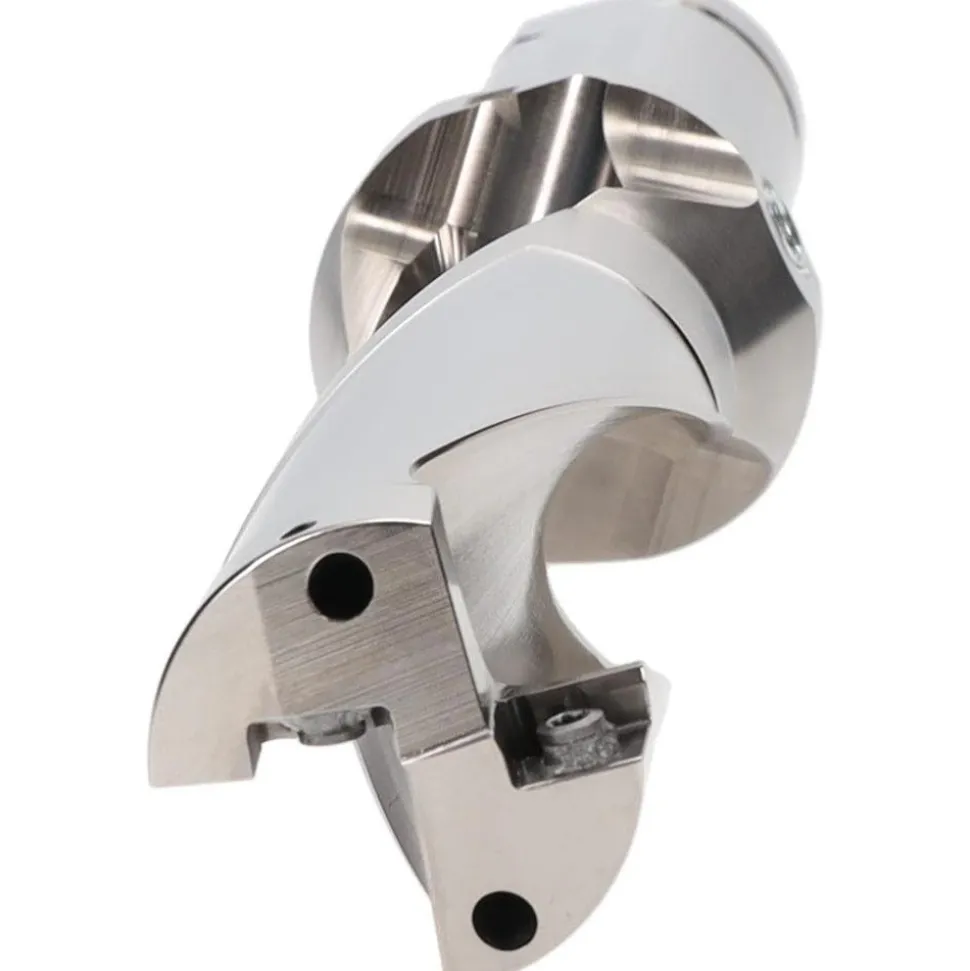

Indexable Insert Drill: DR1250-3750-125-09-3D-, 1-1/4″ Max Dia, 3-3/4″ Max Depth, 3xD, 1-1/4″ Shank Dia
134,99 $

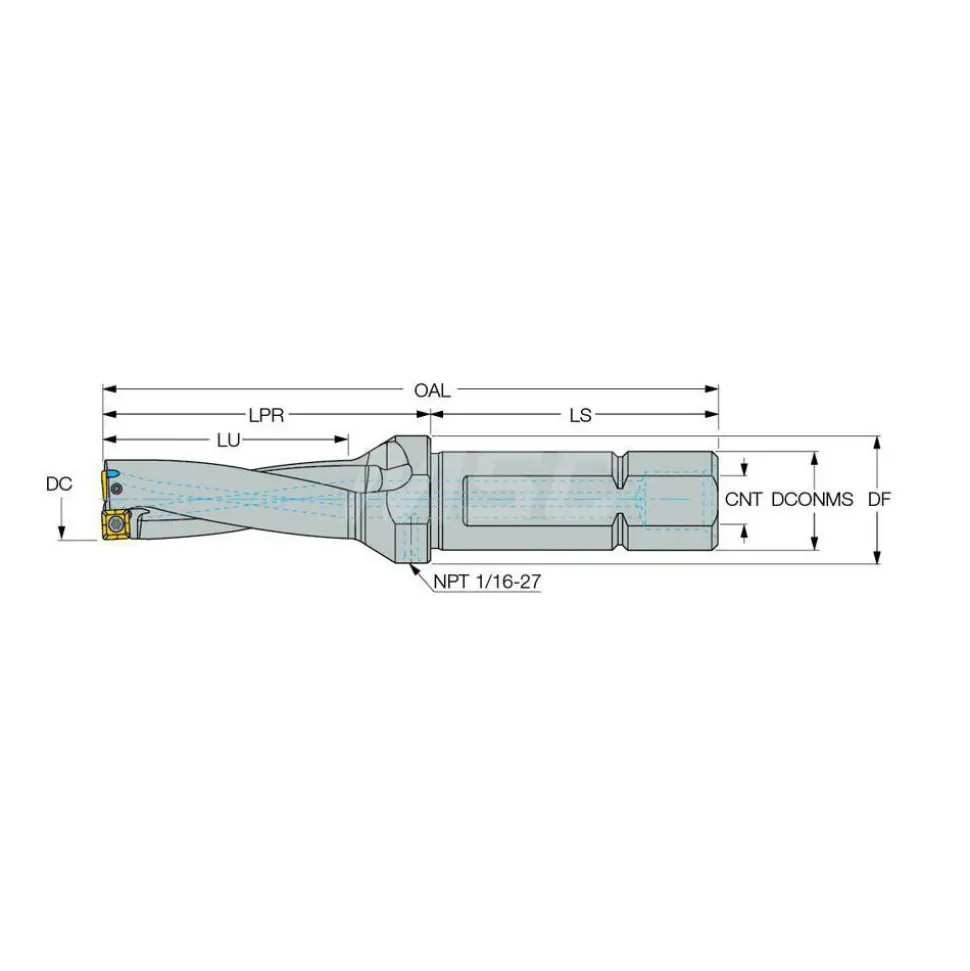

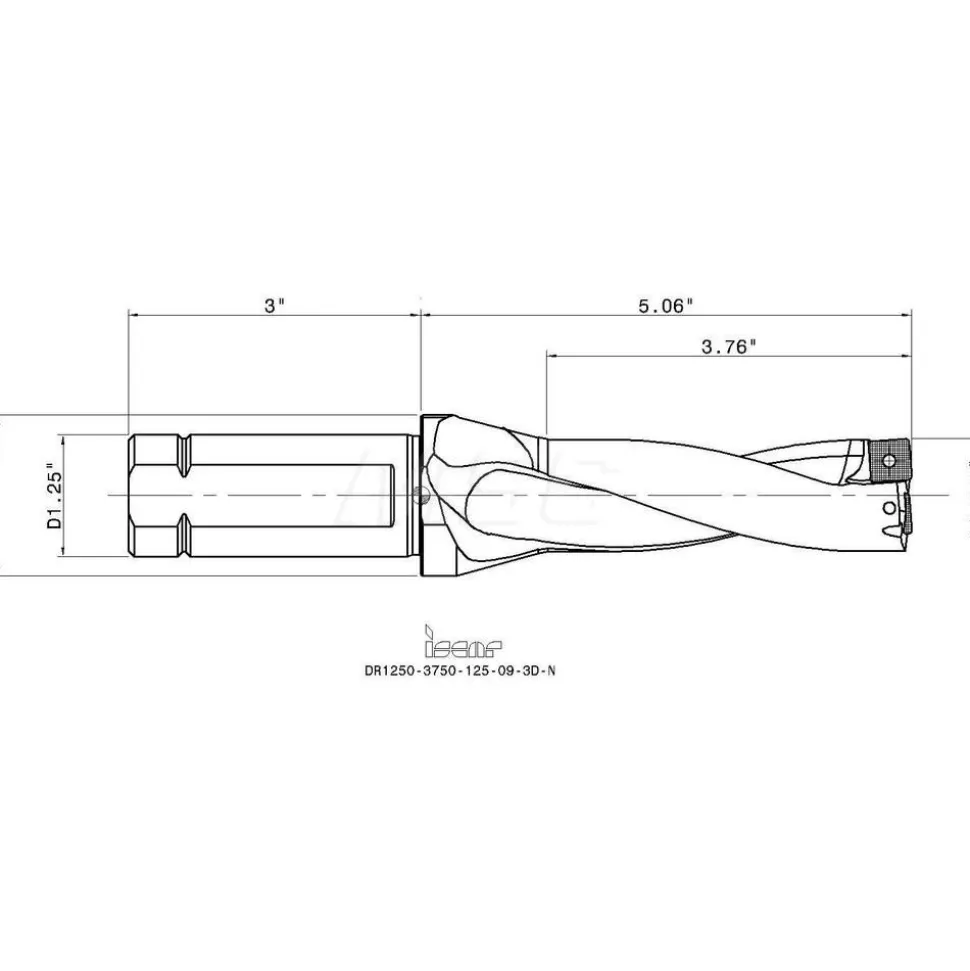

Specifications
| Compatible Drill Style: DR | Maximum Drill Diameter (Inch): 1-1/4 |
| Maximum Drill Diameter (Decimal Inch): 1.2800 | Maximum Drill Depth (Inch): 3-3/4 |
| Maximum Drill Depth (Decimal Inch): 3.7500 | Shank Type: Weldon Flat |
| Shank Diameter (Inch): 1-1/4 | Shank Diameter (Decimal Inch): 1.2500 |
| Number of Drill Inserts: 2 | Cutting Direction: Right Hand |
| Maximum Drill Depth Range (Decimal Inch): 3.0000 to 4.0000 | Tool Material: Steel |
| Compatible Insert Style: SOMT | Compatible Insert Size Code: 09T306 |
| Drill Depth by Diameter Ratio: 3xD | Coolant Entry Style Code: 1-Axial Concentric Entry |
| Overall Length (Decimal Inch): 8.0500 | Series: DR-3D-N |
| Flute Length (Decimal Inch): 3.7500 | Body Length (Decimal Inch): 5.0500 |
| Shank Length (Decimal Inch): 3.0000 | Neck Diameter (Inch): 1.6540 |
| Modular Connection Size: 1-1/4 in | Coolant Hole Thread Size: “1/2-14 NPT” |
| Tool Application: Drilling | Tool Performance: General Purpose |
| Insert Size (Decimal Inch): 0.3540 | UNSPSC Code: 23291503 |
| Insert Compatibility: SOMT09T306 | Collar Diameter (Decimal Inch): 1.6540 |
| Insert Lock Screw: SR 34-506 M3X0.5 | Coolant Through: Yes |
| Country of Origin: Israel | |
| Compatible Drill Style: DR | |
| Maximum Drill Diameter (Inch): 1-1/4 | |
| Maximum Drill Diameter (Decimal Inch): 1.2800 | |
| Maximum Drill Depth (Inch): 3-3/4 | |
| Maximum Drill Depth (Decimal Inch): 3.7500 | |
| Shank Type: Weldon Flat | |
| Shank Diameter (Inch): 1-1/4 | |
| Shank Diameter (Decimal Inch): 1.2500 | |
| Number of Drill Inserts: 2 | |
| Cutting Direction: Right Hand | |
| Maximum Drill Depth Range (Decimal Inch): 3.0000 to 4.0000 | |
| Tool Material: Steel | |
| Compatible Insert Style: SOMT | |
| Compatible Insert Size Code: 09T306 | |
| Drill Depth by Diameter Ratio: 3xD | |
| Coolant Entry Style Code: 1-Axial Concentric Entry | |
| Overall Length (Decimal Inch): 8.0500 | |
| Series: DR-3D-N | |
| Flute Length (Decimal Inch): 3.7500 | |
| Body Length (Decimal Inch): 5.0500 | |
| Shank Length (Decimal Inch): 3.0000 | |
| Neck Diameter (Inch): 1.6540 | |
| Modular Connection Size: 1-1/4 in | |
| Coolant Hole Thread Size: “1/2-14 NPT” | |
| Tool Application: Drilling | |
| Tool Performance: General Purpose | |
| Insert Size (Decimal Inch): 0.3540 | |
| UNSPSC Code: 23291503 | |
| Insert Compatibility: SOMT09T306 | |
| Collar Diameter (Decimal Inch): 1.6540 | |
| Insert Lock Screw: SR 34-506 M3X0.5 | |
| Coolant Through: Yes | |
| Country of Origin: Israel |
| MSC# | 03764297 |
| Mfr# | 3201846 |
