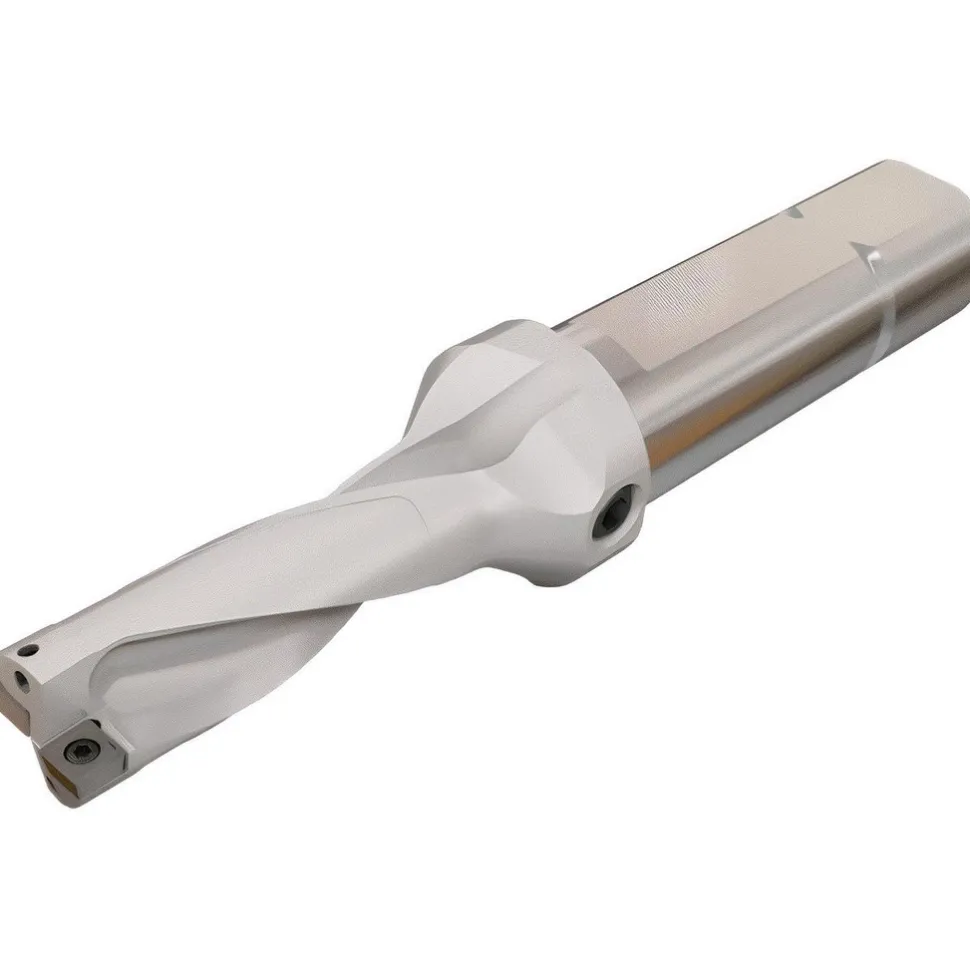

Indexable Insert Drill: DR1125-3375-125-09-3DN, 1-1/8″ Max Dia, 3xD, 1-1/4″ Shank Dia
120,89 $
Specifications
| Compatible Drill Style: DR | Maximum Drill Diameter (Inch): 1-1/8 |
| Maximum Drill Diameter (Decimal Inch): 1.2200 | Maximum Drill Depth (Decimal Inch): 3.3800 |
| Shank Type: Flange; Weldon Flat | Shank Diameter (Inch): 1-1/4 |
| Shank Diameter (Decimal Inch): 1.2500 | Number of Drill Inserts: 2 |
| Cutting Direction: Right Hand | Maximum Drill Depth Range (Decimal Inch): 3.0000 to 4.0000 |
| Tool Material: Steel | Compatible Insert Style: SOMT |
| Compatible Insert Size Code: 09T306 | Drill Depth by Diameter Ratio: 3xD |
| Coolant Entry Style Code: 1-Axial Concentric Entry | Overall Length (Decimal Inch): 7.6700 |
| Series: DR-3D-N | Flute Length (Decimal Inch): 3.3800 |
| Body Length (Decimal Inch): 4.6700 | Shank Length (Decimal Inch): 3.0000 |
| Neck Diameter (Inch): 1.6540 | Modular Connection Size: 1-1/4 in |
| Coolant Hole Thread Size: “1/2-14 NPT” | Tool Application: Drilling |
| Tool Performance: General Purpose | Insert Size (Decimal Inch): 0.3540 |
| UNSPSC Code: 23291503 | Insert Compatibility: SOMT09T306 |
| Collar Diameter (Decimal Inch): 1.6540 | Insert Lock Screw: SR 34-506 M3X0.5 |
| Coolant Through: Yes | Country of Origin: Israel |
| Compatible Drill Style: DR | |
| Maximum Drill Diameter (Inch): 1-1/8 | |
| Maximum Drill Diameter (Decimal Inch): 1.2200 | |
| Maximum Drill Depth (Decimal Inch): 3.3800 | |
| Shank Type: Flange; Weldon Flat | |
| Shank Diameter (Inch): 1-1/4 | |
| Shank Diameter (Decimal Inch): 1.2500 | |
| Number of Drill Inserts: 2 | |
| Cutting Direction: Right Hand | |
| Maximum Drill Depth Range (Decimal Inch): 3.0000 to 4.0000 | |
| Tool Material: Steel | |
| Compatible Insert Style: SOMT | |
| Compatible Insert Size Code: 09T306 | |
| Drill Depth by Diameter Ratio: 3xD | |
| Coolant Entry Style Code: 1-Axial Concentric Entry | |
| Overall Length (Decimal Inch): 7.6700 | |
| Series: DR-3D-N | |
| Flute Length (Decimal Inch): 3.3800 | |
| Body Length (Decimal Inch): 4.6700 | |
| Shank Length (Decimal Inch): 3.0000 | |
| Neck Diameter (Inch): 1.6540 | |
| Modular Connection Size: 1-1/4 in | |
| Coolant Hole Thread Size: “1/2-14 NPT” | |
| Tool Application: Drilling | |
| Tool Performance: General Purpose | |
| Insert Size (Decimal Inch): 0.3540 | |
| UNSPSC Code: 23291503 | |
| Insert Compatibility: SOMT09T306 | |
| Collar Diameter (Decimal Inch): 1.6540 | |
| Insert Lock Screw: SR 34-506 M3X0.5 | |
| Coolant Through: Yes | |
| Country of Origin: Israel |
| MSC# | 74679820 |
| Mfr# | 3201843 |
