Sale!

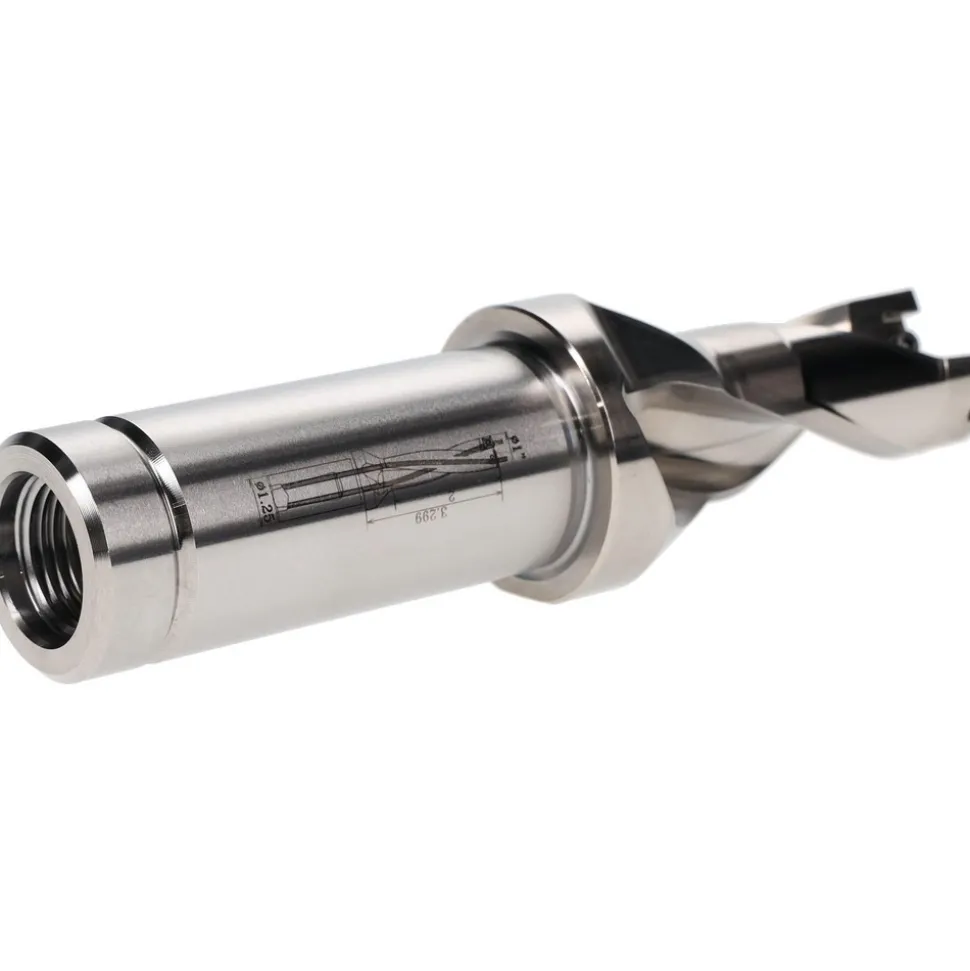

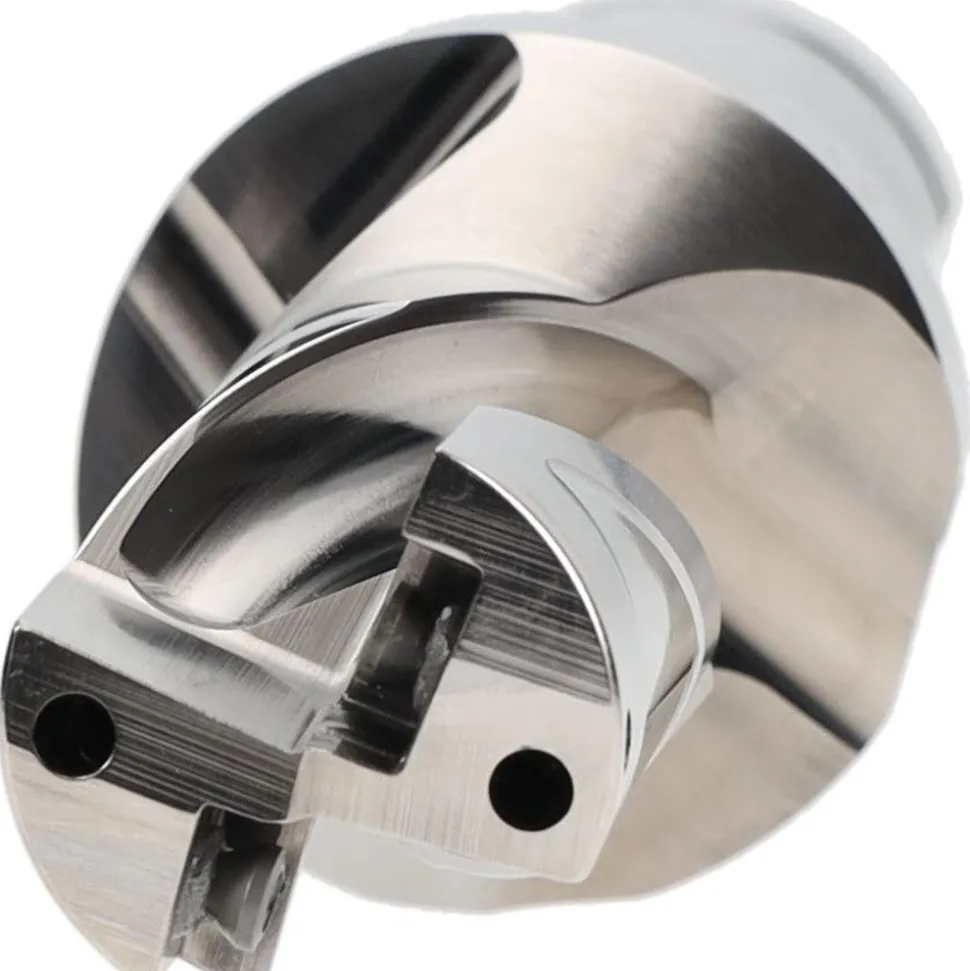

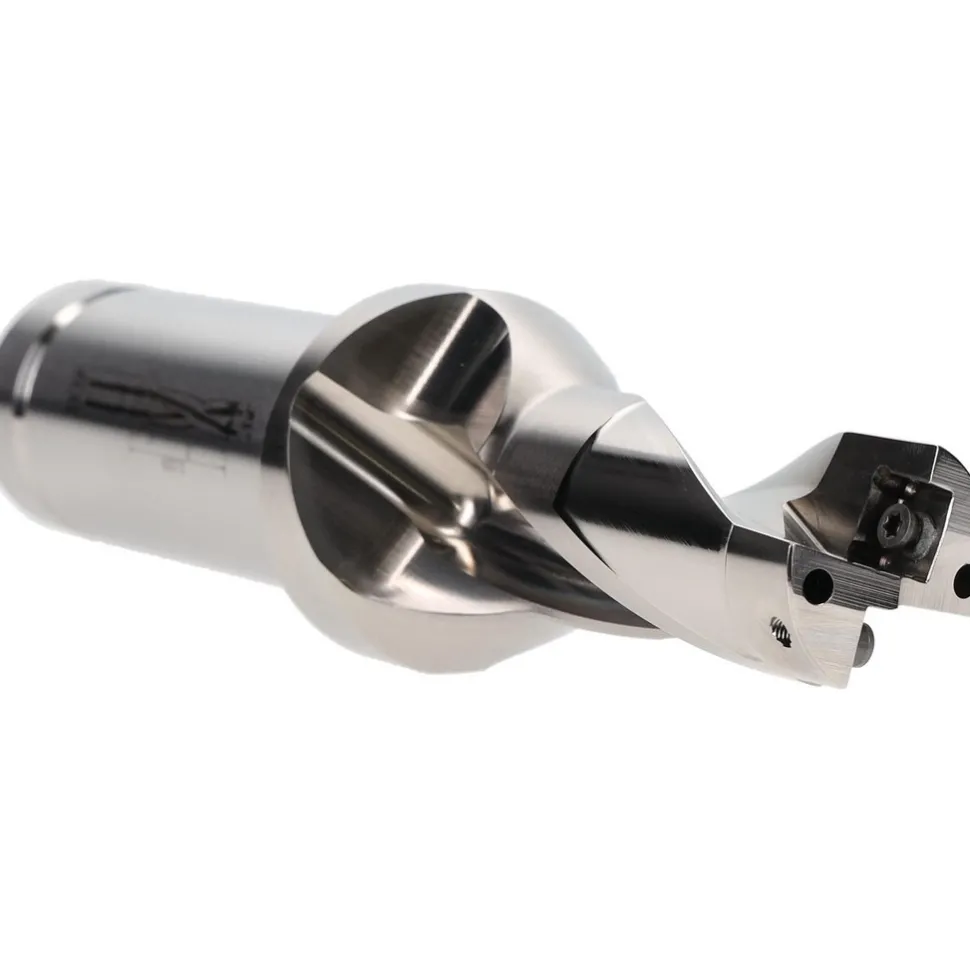

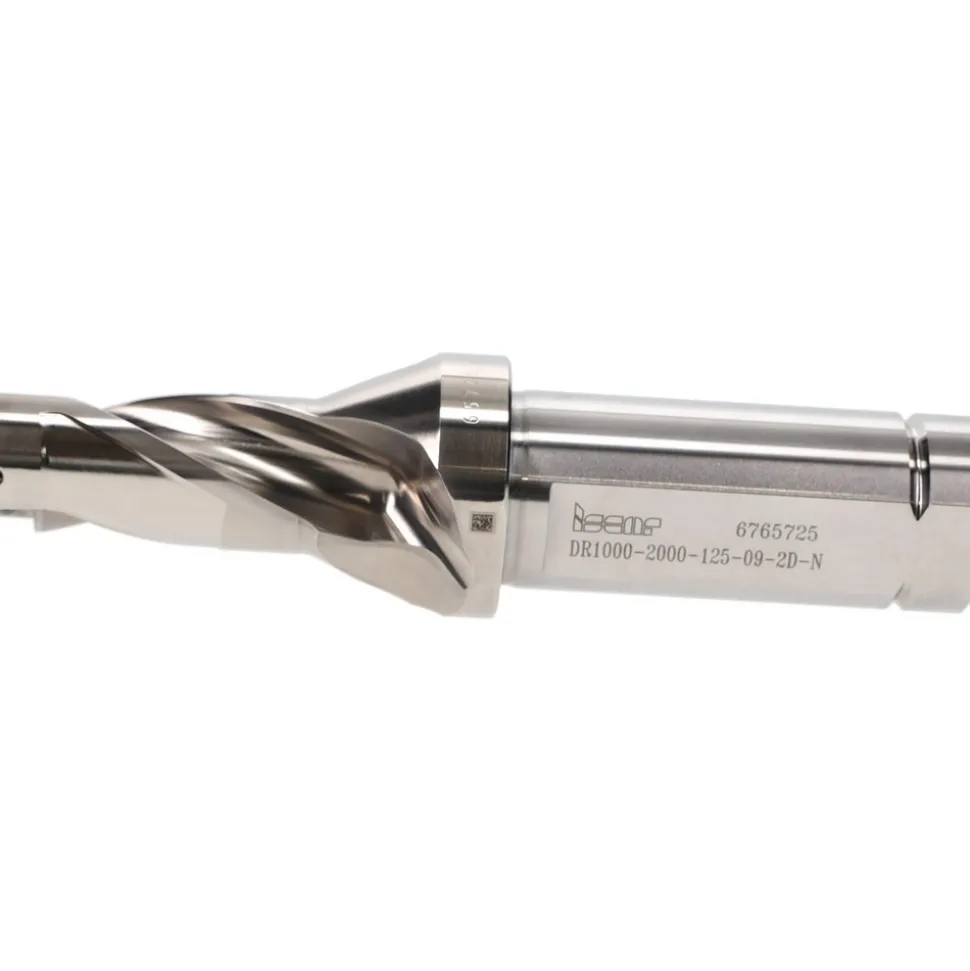

Indexable Insert Drill: DR1000-2000-125-09-2DN, 1″ Max Dia, 2″ Max Depth, 2xD, 1-1/4″ Shank Dia
Original price was: 627,00 $.132,89 $Current price is: 132,89 $.
Specifications
| Compatible Drill Style: DR | Maximum Drill Diameter (Inch): 1 |
| Maximum Drill Diameter (Decimal Inch): 1.1610 | Maximum Drill Depth (Inch): 2 |
| Maximum Drill Depth (Decimal Inch): 2.0000 | Shank Type: Flange; Weldon Flat |
| Shank Diameter (Inch): 1-1/4 | Shank Diameter (Decimal Inch): 1.2500 |
| Number of Drill Inserts: 2 | Cutting Direction: Right Hand |
| Maximum Drill Depth Range (Decimal Inch): 2.0000 to 3.0000 | Tool Material: Steel |
| Compatible Insert Style: SOMT | Compatible Insert Size Code: 09T306 |
| Drill Depth by Diameter Ratio: 2xD | Coolant Entry Style Code: 3- Axial Concentric & Radial |
| Overall Length (Decimal Inch): 6.3000 | Series: DR-2D-N |
| Flute Length (Decimal Inch): 2.0000 | Body Length (Decimal Inch): 3.3000 |
| Shank Length (Decimal Inch): 3.0000 | Neck Diameter (Inch): 1.6540 |
| Modular Connection Size: 1-1/4 in | Coolant Hole Thread Size: “1/16-27 NPT” |
| Tool Application: Drilling | Tool Performance: General Purpose |
| Insert Size (Decimal Inch): 0.3540 | UNSPSC Code: 23291503 |
| Insert Compatibility: SOMT09T306 | Collar Diameter (Decimal Inch): 1.6540 |
| Body Side Coolant Hole Thread Size (Inch): 1/16-27 | Shank End Coolant Hole Thread Size (Inch): 1/2-14 |
| Insert Lock Screw: SR 34-506 M3X0.5 | Coolant Through: Yes |
| Country of Origin: Israel | |
| Compatible Drill Style: DR | |
| Maximum Drill Diameter (Inch): 1 | |
| Maximum Drill Diameter (Decimal Inch): 1.1610 | |
| Maximum Drill Depth (Inch): 2 | |
| Maximum Drill Depth (Decimal Inch): 2.0000 | |
| Shank Type: Flange; Weldon Flat | |
| Shank Diameter (Inch): 1-1/4 | |
| Shank Diameter (Decimal Inch): 1.2500 | |
| Number of Drill Inserts: 2 | |
| Cutting Direction: Right Hand | |
| Maximum Drill Depth Range (Decimal Inch): 2.0000 to 3.0000 | |
| Tool Material: Steel | |
| Compatible Insert Style: SOMT | |
| Compatible Insert Size Code: 09T306 | |
| Drill Depth by Diameter Ratio: 2xD | |
| Coolant Entry Style Code: 3- Axial Concentric & Radial | |
| Overall Length (Decimal Inch): 6.3000 | |
| Series: DR-2D-N | |
| Flute Length (Decimal Inch): 2.0000 | |
| Body Length (Decimal Inch): 3.3000 | |
| Shank Length (Decimal Inch): 3.0000 | |
| Neck Diameter (Inch): 1.6540 | |
| Modular Connection Size: 1-1/4 in | |
| Coolant Hole Thread Size: “1/16-27 NPT” | |
| Tool Application: Drilling | |
| Tool Performance: General Purpose | |
| Insert Size (Decimal Inch): 0.3540 | |
| UNSPSC Code: 23291503 | |
| Insert Compatibility: SOMT09T306 | |
| Collar Diameter (Decimal Inch): 1.6540 | |
| Body Side Coolant Hole Thread Size (Inch): 1/16-27 | |
| Shank End Coolant Hole Thread Size (Inch): 1/2-14 | |
| Insert Lock Screw: SR 34-506 M3X0.5 | |
| Coolant Through: Yes | |
| Country of Origin: Israel |
| MSC# | 85105997 |
| Mfr# | 3201795 |
