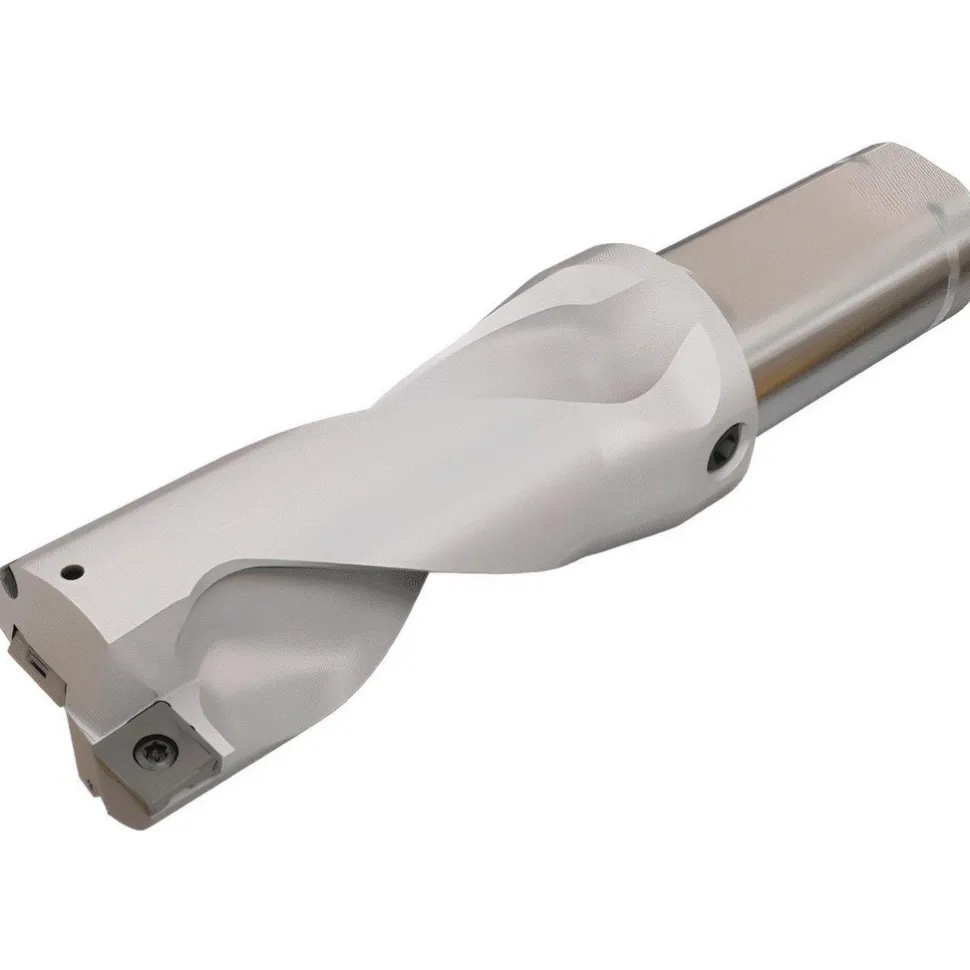

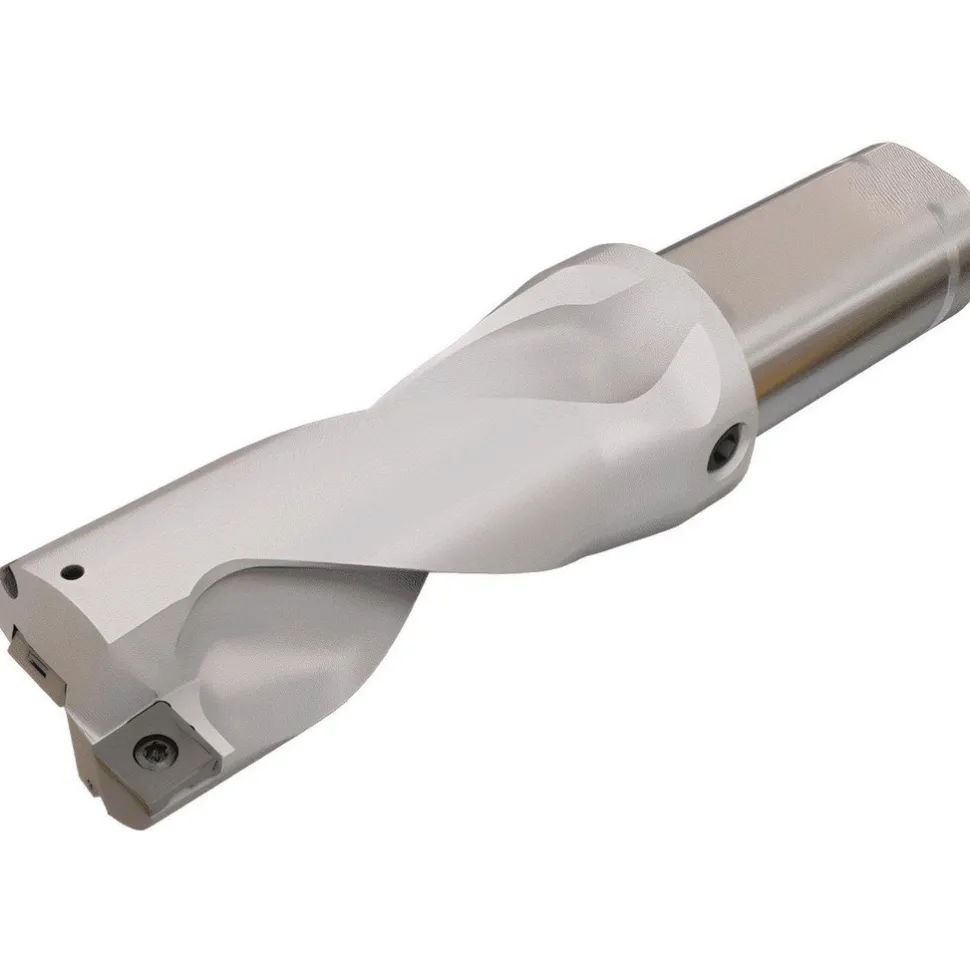

Indexable Insert Drill: DR0875-1750-100-07-2, 7/8″ Max Dia, 1-3/4″ Max Depth, 2xD, 1″ Shank Dia
130,89 $
Specifications
| Compatible Drill Style: DR | Maximum Drill Diameter (Inch): 7/8 |
| Maximum Drill Diameter (Decimal Inch): 0.9880 | Maximum Drill Depth (Inch): 1-3/4 |
| Maximum Drill Depth (Decimal Inch): 1.7500 | Shank Type: Weldon Flat |
| Shank Diameter (Inch): 1 | Shank Diameter (Decimal Inch): 1.0000 |
| Number of Drill Inserts: 2 | Cutting Direction: Right Hand |
| Maximum Drill Depth Range (Decimal Inch): 1.0000 to 2.0000 | Tool Material: Steel |
| Compatible Insert Style: SOMX | Compatible Insert Size Code: 070305 |
| Drill Depth by Diameter Ratio: 2xD | Coolant Entry Style Code: 1-Axial Concentric Entry |
| Overall Length (Decimal Inch): 5.6100 | Series: DR-2D-N |
| Flute Length (Decimal Inch): 1.7500 | Body Length (Decimal Inch): 2.6100 |
| Shank Length (Decimal Inch): 3.0000 | Neck Diameter (Inch): 1.2600 |
| Modular Connection Size: 1 in | Coolant Hole Thread Size: “3/8-18 NPT” |
| Tool Application: Drilling | Tool Performance: General Purpose |
| Insert Size (Decimal Inch): 0.3031 | UNSPSC Code: 23291503 |
| Insert Compatibility: SOMX070305 | Collar Diameter (Decimal Inch): 1.2600 |
| Insert Lock Screw: SR 14-560 | Coolant Through: Yes |
| Country of Origin: Israel | |
| Compatible Drill Style: DR | |
| Maximum Drill Diameter (Inch): 7/8 | |
| Maximum Drill Diameter (Decimal Inch): 0.9880 | |
| Maximum Drill Depth (Inch): 1-3/4 | |
| Maximum Drill Depth (Decimal Inch): 1.7500 | |
| Shank Type: Weldon Flat | |
| Shank Diameter (Inch): 1 | |
| Shank Diameter (Decimal Inch): 1.0000 | |
| Number of Drill Inserts: 2 | |
| Cutting Direction: Right Hand | |
| Maximum Drill Depth Range (Decimal Inch): 1.0000 to 2.0000 | |
| Tool Material: Steel | |
| Compatible Insert Style: SOMX | |
| Compatible Insert Size Code: 070305 | |
| Drill Depth by Diameter Ratio: 2xD | |
| Coolant Entry Style Code: 1-Axial Concentric Entry | |
| Overall Length (Decimal Inch): 5.6100 | |
| Series: DR-2D-N | |
| Flute Length (Decimal Inch): 1.7500 | |
| Body Length (Decimal Inch): 2.6100 | |
| Shank Length (Decimal Inch): 3.0000 | |
| Neck Diameter (Inch): 1.2600 | |
| Modular Connection Size: 1 in | |
| Coolant Hole Thread Size: “3/8-18 NPT” | |
| Tool Application: Drilling | |
| Tool Performance: General Purpose | |
| Insert Size (Decimal Inch): 0.3031 | |
| UNSPSC Code: 23291503 | |
| Insert Compatibility: SOMX070305 | |
| Collar Diameter (Decimal Inch): 1.2600 | |
| Insert Lock Screw: SR 14-560 | |
| Coolant Through: Yes | |
| Country of Origin: Israel |
| MSC# | 08211021 |
| Mfr# | 3201394 |
