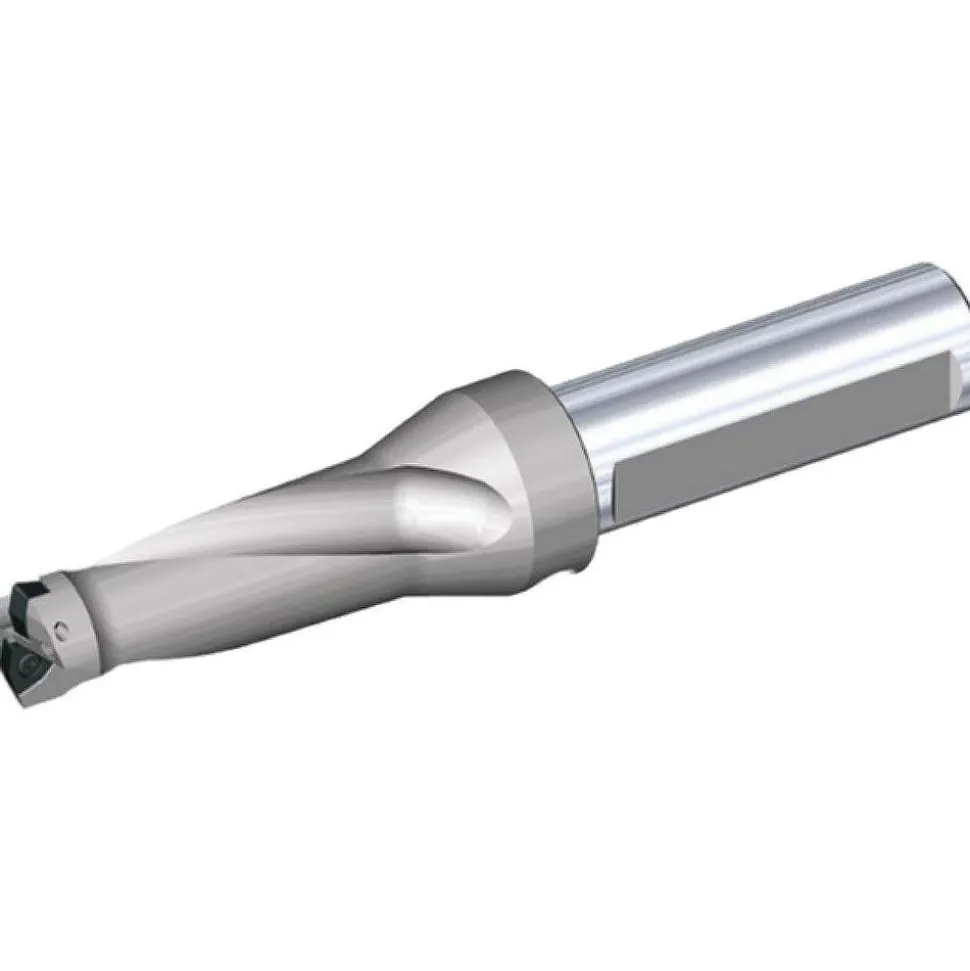

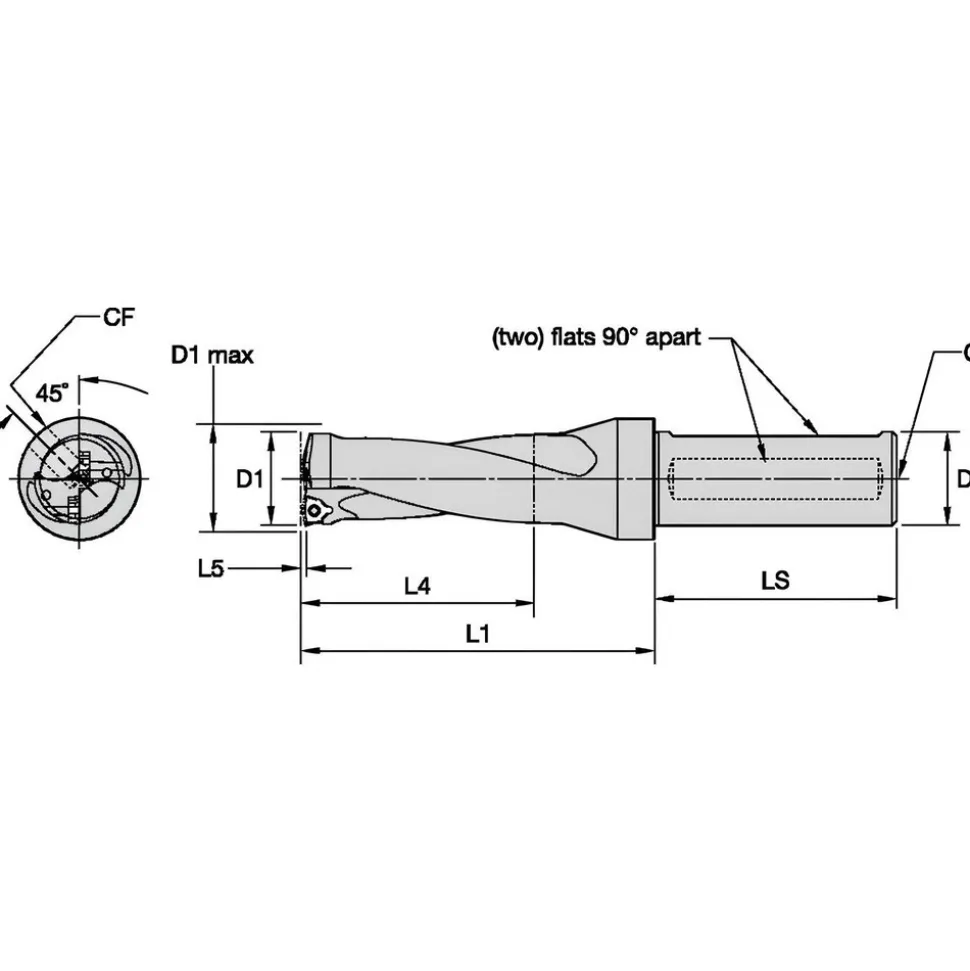

Indexable Insert Drill: DFT1875R2SSF150, 2″ Max Dia, 2.5xD, 1-1/2″ Shank Dia
Original price was: 991,00 $.122,89 $Current price is: 122,89 $.
Specifications
| Compatible Drill Style: DFT | Maximum Drill Diameter (mm): 50.80 |
| Maximum Drill Diameter (Inch): 2 | Maximum Drill Diameter (Decimal Inch): 2.0000 |
| Maximum Drill Depth (Decimal Inch): 4.7000 | Shank Type: Flange; Weldon Flat |
| Shank Diameter (Inch): 1-1/2 | Shank Diameter (Decimal Inch): 1.5000 |
| Number of Drill Inserts: 2 | Cutting Direction: Right Hand |
| Maximum Drill Depth Range (Decimal Inch): 4.0000 to 5.0000 | Tool Material: Steel |
| Compatible Insert Style: DFT | Compatible Insert Size Code: 0704.. |
| Drill Depth by Diameter Ratio: 2.5xD | Coolant Entry Style Code: 1-Axial Concentric Entry |
| Overall Length (Decimal Inch): 10.3750 | Overall Length (Inch): 10-3/8 |
| Series: DFT | Flute Length (Decimal Inch): 4.7000 |
| Body Length (mm): 168.28 | Body Length (Decimal Inch): 6.6250 |
| Shank Length (Decimal Inch): 3.7500 | Shank Length (mm): 95.25 |
| Tool Application: Drilling | Tool Performance: General Purpose |
| Insert Size (Decimal Inch): 0.3130×0.1870 | Insert Size (mm): 7.94×4.75 |
| UNSPSC Code: 23291503 | Insert Compatibility: DFT0704. |
| Body Side Coolant Hole Thread Size (Inch): 1/8-27 | Shank End Coolant Hole Thread Size (Inch): 1/4-18 |
| Insert Lock Screw: M3.5-0.6x12T15 | Coolant Through: Yes |
| Country of Origin: Bulgaria | |
| Compatible Drill Style: DFT | |
| Maximum Drill Diameter (mm): 50.80 | |
| Maximum Drill Diameter (Inch): 2 | |
| Maximum Drill Diameter (Decimal Inch): 2.0000 | |
| Maximum Drill Depth (Decimal Inch): 4.7000 | |
| Shank Type: Flange; Weldon Flat | |
| Shank Diameter (Inch): 1-1/2 | |
| Shank Diameter (Decimal Inch): 1.5000 | |
| Number of Drill Inserts: 2 | |
| Cutting Direction: Right Hand | |
| Maximum Drill Depth Range (Decimal Inch): 4.0000 to 5.0000 | |
| Tool Material: Steel | |
| Compatible Insert Style: DFT | |
| Compatible Insert Size Code: 0704.. | |
| Drill Depth by Diameter Ratio: 2.5xD | |
| Coolant Entry Style Code: 1-Axial Concentric Entry | |
| Overall Length (Decimal Inch): 10.3750 | |
| Overall Length (Inch): 10-3/8 | |
| Series: DFT | |
| Flute Length (Decimal Inch): 4.7000 | |
| Body Length (mm): 168.28 | |
| Body Length (Decimal Inch): 6.6250 | |
| Shank Length (Decimal Inch): 3.7500 | |
| Shank Length (mm): 95.25 | |
| Tool Application: Drilling | |
| Tool Performance: General Purpose | |
| Insert Size (Decimal Inch): 0.3130×0.1870 | |
| Insert Size (mm): 7.94×4.75 | |
| UNSPSC Code: 23291503 | |
| Insert Compatibility: DFT0704. | |
| Body Side Coolant Hole Thread Size (Inch): 1/8-27 | |
| Shank End Coolant Hole Thread Size (Inch): 1/4-18 | |
| Insert Lock Screw: M3.5-0.6x12T15 | |
| Coolant Through: Yes | |
| Country of Origin: Bulgaria |
| MSC# | 01264316 |
| Mfr# | 1528405 |
| Big Book# | 172 |
