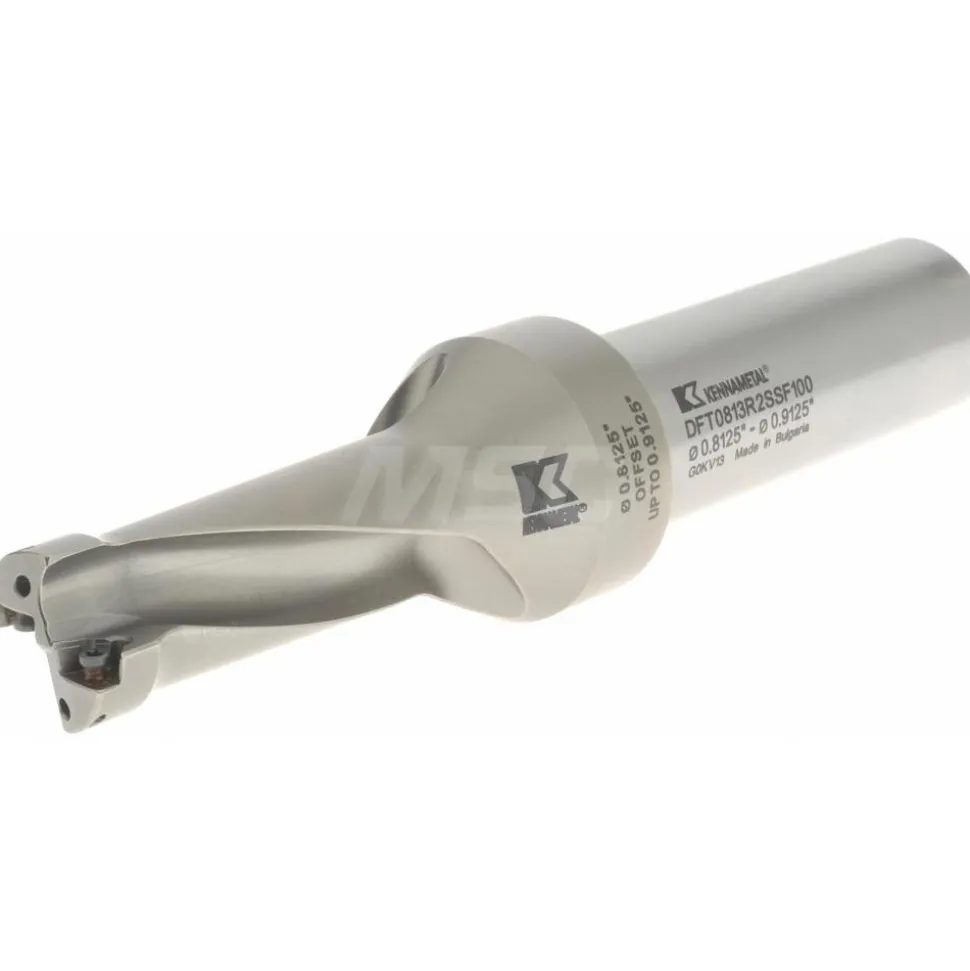

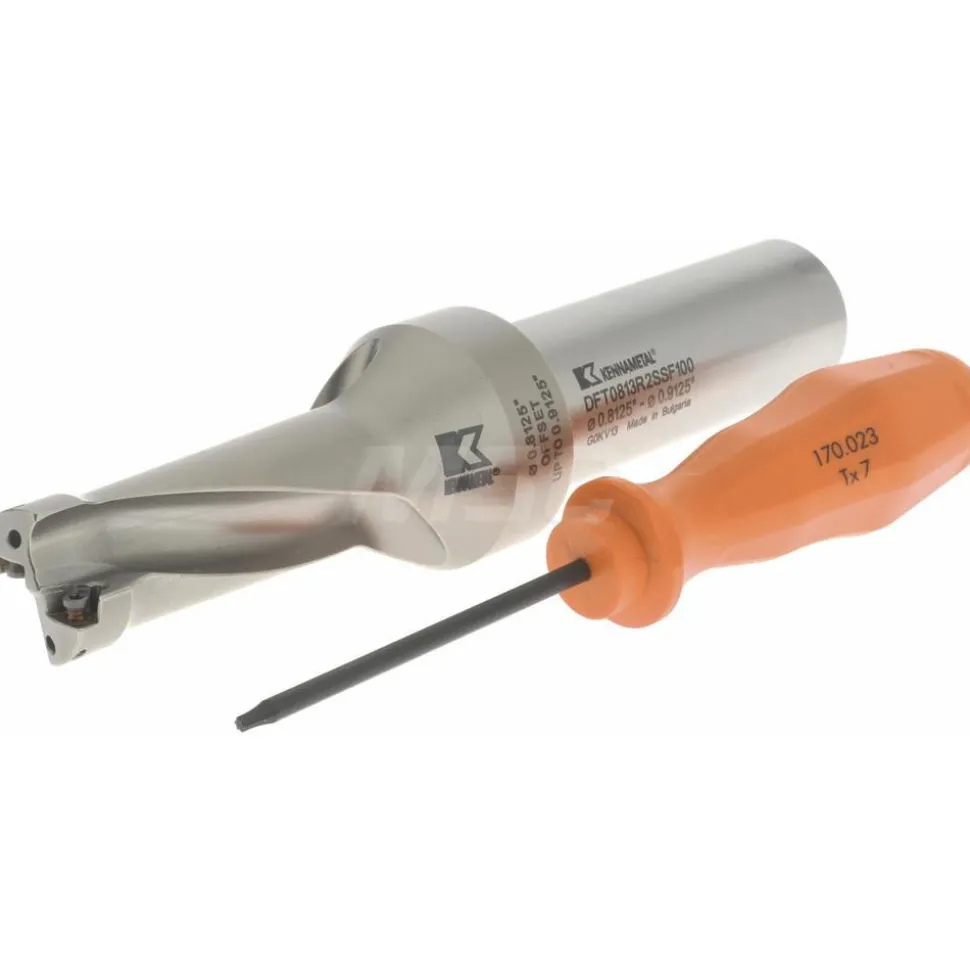

Indexable Insert Drill: DFT0813R2SSF100, 23.18 mm Max Dia, 2.5xD
Original price was: 713,00 $.126,89 $Current price is: 126,89 $.
Specifications
| Compatible Drill Style: DFT | Maximum Drill Diameter (mm): 23.18 |
| Maximum Drill Diameter (Decimal Inch): 0.9125 | Maximum Drill Depth (Decimal Inch): 2.0300 |
| Shank Type: Flange; Weldon Flat | Shank Diameter (Inch): 1 |
| Shank Diameter (Decimal Inch): 1.0000 | Number of Drill Inserts: 2 |
| Cutting Direction: Right Hand | Maximum Drill Depth Range (Decimal Inch): 2.0000 to 3.0000 |
| Tool Material: Steel | Compatible Insert Style: DFT |
| Compatible Insert Size Code: 0303.. | Drill Depth by Diameter Ratio: 2.5xD |
| Coolant Entry Style Code: 1-Axial Concentric Entry | Overall Length (Decimal Inch): 6.3750 |
| Overall Length (Inch): 6-3/8 | Series: DFT |
| Flute Length (Decimal Inch): 2.0300 | Body Length (mm): 85.73 |
| Body Length (Decimal Inch): 3.3750 | Shank Length (Decimal Inch): 3.0000 |
| Shank Length (mm): 76.20 | Tool Application: Drilling |
| Tool Performance: General Purpose | Insert Size (Decimal Inch): 0.1560×0.1160 |
| Insert Size (mm): 3.97×2.95 | UNSPSC Code: 23291503 |
| Insert Compatibility: DFT0303. | Body Side Coolant Hole Thread Size (Inch): 1/8-27 |
| Shank End Coolant Hole Thread Size (Inch): 1/4-18 | Insert Lock Screw: M2.5-0.45×5.9T8 |
| Coolant Through: Yes | Country of Origin: Bulgaria |
| Compatible Drill Style: DFT | |
| Maximum Drill Diameter (mm): 23.18 | |
| Maximum Drill Diameter (Decimal Inch): 0.9125 | |
| Maximum Drill Depth (Decimal Inch): 2.0300 | |
| Shank Type: Flange; Weldon Flat | |
| Shank Diameter (Inch): 1 | |
| Shank Diameter (Decimal Inch): 1.0000 | |
| Number of Drill Inserts: 2 | |
| Cutting Direction: Right Hand | |
| Maximum Drill Depth Range (Decimal Inch): 2.0000 to 3.0000 | |
| Tool Material: Steel | |
| Compatible Insert Style: DFT | |
| Compatible Insert Size Code: 0303.. | |
| Drill Depth by Diameter Ratio: 2.5xD | |
| Coolant Entry Style Code: 1-Axial Concentric Entry | |
| Overall Length (Decimal Inch): 6.3750 | |
| Overall Length (Inch): 6-3/8 | |
| Series: DFT | |
| Flute Length (Decimal Inch): 2.0300 | |
| Body Length (mm): 85.73 | |
| Body Length (Decimal Inch): 3.3750 | |
| Shank Length (Decimal Inch): 3.0000 | |
| Shank Length (mm): 76.20 | |
| Tool Application: Drilling | |
| Tool Performance: General Purpose | |
| Insert Size (Decimal Inch): 0.1560×0.1160 | |
| Insert Size (mm): 3.97×2.95 | |
| UNSPSC Code: 23291503 | |
| Insert Compatibility: DFT0303. | |
| Body Side Coolant Hole Thread Size (Inch): 1/8-27 | |
| Shank End Coolant Hole Thread Size (Inch): 1/4-18 | |
| Insert Lock Screw: M2.5-0.45×5.9T8 | |
| Coolant Through: Yes | |
| Country of Origin: Bulgaria |
| MSC# | 01246230 |
| Mfr# | 1527698 |
| Big Book# | 171 |
