Sale!

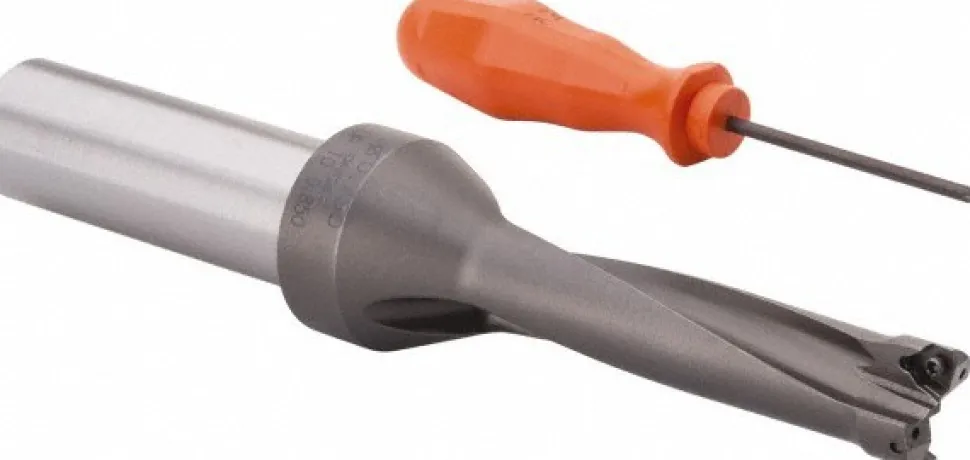

Indexable Insert Drill: DFT0750R4SSF100, 21.59 mm Max Dia, 76.20 mm Max Depth, 4xD
Original price was: 732,00 $.136,89 $Current price is: 136,89 $.
Specifications
| Compatible Drill Style: DFT | Maximum Drill Diameter (mm): 21.59 |
| Maximum Drill Diameter (Decimal Inch): 0.8500 | Maximum Drill Depth (Inch): 3 |
| Maximum Drill Depth (Decimal Inch): 3.0000 | Maximum Drill Depth (mm): 76.20 |
| Shank Type: Flange; Weldon Flat | Shank Diameter (Inch): 1 |
| Shank Diameter (Decimal Inch): 1.0000 | Number of Drill Inserts: 2 |
| Cutting Direction: Right Hand | Maximum Drill Depth Range (Decimal Inch): 3.0000 to 4.0000 |
| Maximum Drill Depth Range (mm): 75.00 to 100.00 | Tool Material: Steel |
| Compatible Insert Style: DFT | Compatible Insert Size Code: 0303.. |
| Drill Depth by Diameter Ratio: 4xD | Coolant Entry Style Code: 1-Axial Concentric Entry |
| Overall Length (Decimal Inch): 7.5000 | Overall Length (Inch): 7-1/2 |
| Series: DFT | Flute Length (Decimal Inch): 3.0000 |
| Body Length (mm): 114.30 | Body Length (Decimal Inch): 4.5000 |
| Shank Length (Decimal Inch): 3.0000 | Shank Length (mm): 76.20 |
| Tool Application: Drilling | Tool Performance: General Purpose |
| Insert Size (Decimal Inch): 0.1560×0.1160 | Insert Size (mm): 3.97×2.95 |
| UNSPSC Code: 23291503 | Insert Compatibility: DFT0303. |
| Shank End Coolant Hole Thread Size (Inch): 1/4-18 | Insert Lock Screw: M2.5-0.45×5.9T8 |
| Coolant Through: Yes | Country of Origin: Bulgaria |
| Compatible Drill Style: DFT | |
| Maximum Drill Diameter (mm): 21.59 | |
| Maximum Drill Diameter (Decimal Inch): 0.8500 | |
| Maximum Drill Depth (Inch): 3 | |
| Maximum Drill Depth (Decimal Inch): 3.0000 | |
| Maximum Drill Depth (mm): 76.20 | |
| Shank Type: Flange; Weldon Flat | |
| Shank Diameter (Inch): 1 | |
| Shank Diameter (Decimal Inch): 1.0000 | |
| Number of Drill Inserts: 2 | |
| Cutting Direction: Right Hand | |
| Maximum Drill Depth Range (Decimal Inch): 3.0000 to 4.0000 | |
| Maximum Drill Depth Range (mm): 75.00 to 100.00 | |
| Tool Material: Steel | |
| Compatible Insert Style: DFT | |
| Compatible Insert Size Code: 0303.. | |
| Drill Depth by Diameter Ratio: 4xD | |
| Coolant Entry Style Code: 1-Axial Concentric Entry | |
| Overall Length (Decimal Inch): 7.5000 | |
| Overall Length (Inch): 7-1/2 | |
| Series: DFT | |
| Flute Length (Decimal Inch): 3.0000 | |
| Body Length (mm): 114.30 | |
| Body Length (Decimal Inch): 4.5000 | |
| Shank Length (Decimal Inch): 3.0000 | |
| Shank Length (mm): 76.20 | |
| Tool Application: Drilling | |
| Tool Performance: General Purpose | |
| Insert Size (Decimal Inch): 0.1560×0.1160 | |
| Insert Size (mm): 3.97×2.95 | |
| UNSPSC Code: 23291503 | |
| Insert Compatibility: DFT0303. | |
| Shank End Coolant Hole Thread Size (Inch): 1/4-18 | |
| Insert Lock Screw: M2.5-0.45×5.9T8 | |
| Coolant Through: Yes | |
| Country of Origin: Bulgaria |
| MSC# | 01244821 |
| Mfr# | 1522171 |
| Big Book# | 172 |
