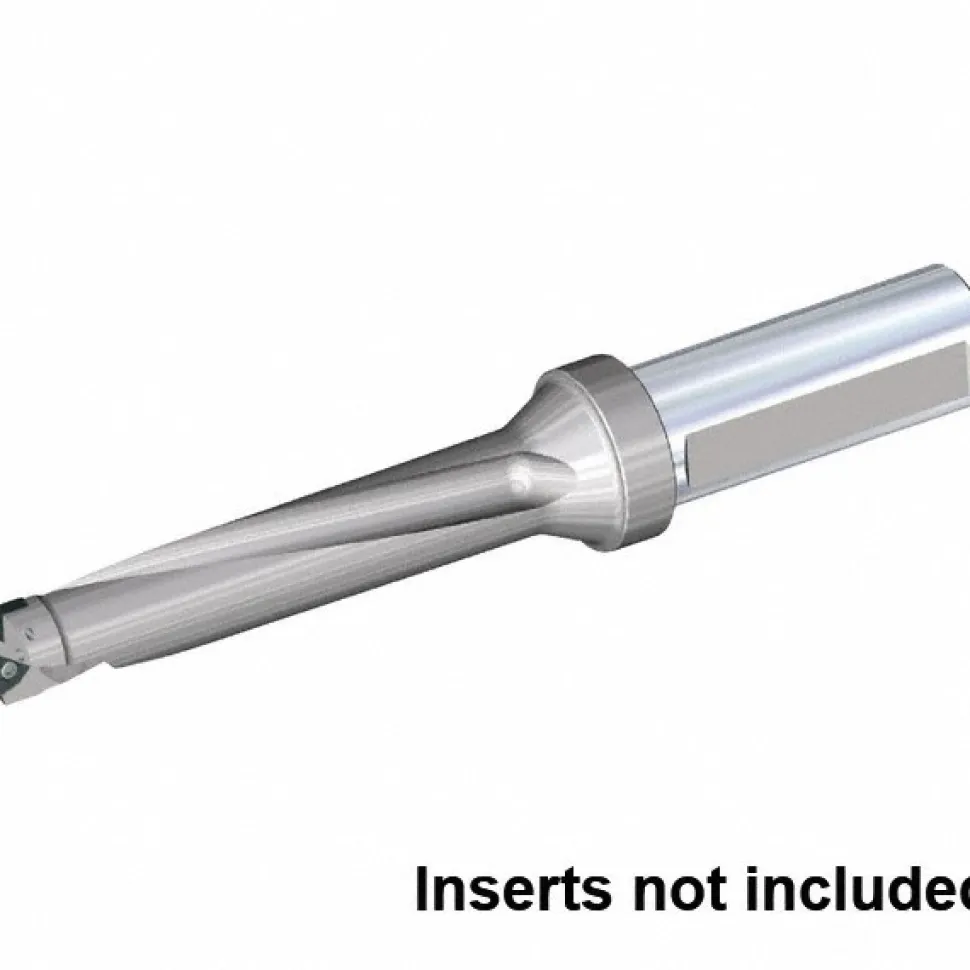

Indexable Insert Drill: DFSP1000R5SSF100, 1″ Max Dia, 5″ Max Depth, 5xD, 1″ Shank Dia
122,89 $
Specifications
| Compatible Drill Style: DFSP | Maximum Drill Diameter (Inch): 1 |
| Maximum Drill Diameter (Decimal Inch): 1.0000 | Maximum Drill Depth (Inch): 5 |
| Maximum Drill Depth (Decimal Inch): 5.0000 | Maximum Drill Depth (mm): 127.00 |
| Shank Type: Flange; Weldon Flat | Shank Diameter (Inch): 1 |
| Shank Diameter (Decimal Inch): 1.0000 | Number of Drill Inserts: 2 |
| Cutting Direction: Right Hand | Maximum Drill Depth Range (Decimal Inch): 5.0000 to 7.0000 |
| Maximum Drill Depth Range (mm): 100.00 to 150.00 | Tool Material: Steel |
| Compatible Insert Style: DFT; SPGX | Compatible Insert Size Code: 0703..; 05T3.. |
| Drill Depth by Diameter Ratio: 5xD | Coolant Entry Style Code: 3- Axial Concentric & Radial |
| Overall Length (Decimal Inch): 9.2500 | Overall Length (Inch): 9-1/4 |
| Series: DFSP | Flute Length (Decimal Inch): 5.0000 |
| Flute Length (mm): 136.00 | Body Length (mm): 158.75 |
| Body Length (Decimal Inch): 6.2500 | Shank Length (Decimal Inch): 3.0000 |
| Shank Length (mm): 76.20 | Coolant Hole Thread Size: “1/4-18 NPT” |
| Tool Application: Drilling | Tool Performance: General Purpose |
| Insert Size (Decimal Inch): 0.2080×0.1480; 0.3048×0.1250 | UNSPSC Code: 23291503 |
| Insert Compatibility: DFT05T3.; SPGX0703. | Body Side Coolant Hole Thread Size (Inch): 1/8-27 |
| Shank End Coolant Hole Thread Size (Inch): 1/4-18 | Insert Lock Screw: M2.5-0.45×5.9T8; M3-0.5×7.2T8 |
| Coolant Through: Yes | Country of Origin: Bulgaria |
| Compatible Drill Style: DFSP | |
| Maximum Drill Diameter (Inch): 1 | |
| Maximum Drill Diameter (Decimal Inch): 1.0000 | |
| Maximum Drill Depth (Inch): 5 | |
| Maximum Drill Depth (Decimal Inch): 5.0000 | |
| Maximum Drill Depth (mm): 127.00 | |
| Shank Type: Flange; Weldon Flat | |
| Shank Diameter (Inch): 1 | |
| Shank Diameter (Decimal Inch): 1.0000 | |
| Number of Drill Inserts: 2 | |
| Cutting Direction: Right Hand | |
| Maximum Drill Depth Range (Decimal Inch): 5.0000 to 7.0000 | |
| Maximum Drill Depth Range (mm): 100.00 to 150.00 | |
| Tool Material: Steel | |
| Compatible Insert Style: DFT; SPGX | |
| Compatible Insert Size Code: 0703..; 05T3.. | |
| Drill Depth by Diameter Ratio: 5xD | |
| Coolant Entry Style Code: 3- Axial Concentric & Radial | |
| Overall Length (Decimal Inch): 9.2500 | |
| Overall Length (Inch): 9-1/4 | |
| Series: DFSP | |
| Flute Length (Decimal Inch): 5.0000 | |
| Flute Length (mm): 136.00 | |
| Body Length (mm): 158.75 | |
| Body Length (Decimal Inch): 6.2500 | |
| Shank Length (Decimal Inch): 3.0000 | |
| Shank Length (mm): 76.20 | |
| Coolant Hole Thread Size: “1/4-18 NPT” | |
| Tool Application: Drilling | |
| Tool Performance: General Purpose | |
| Insert Size (Decimal Inch): 0.2080×0.1480; 0.3048×0.1250 | |
| UNSPSC Code: 23291503 | |
| Insert Compatibility: DFT05T3.; SPGX0703. | |
| Body Side Coolant Hole Thread Size (Inch): 1/8-27 | |
| Shank End Coolant Hole Thread Size (Inch): 1/4-18 | |
| Insert Lock Screw: M2.5-0.45×5.9T8; M3-0.5×7.2T8 | |
| Coolant Through: Yes | |
| Country of Origin: Bulgaria |
| MSC# | 36067247 |
| Mfr# | 5692355 |
| Big Book# | 173 |
