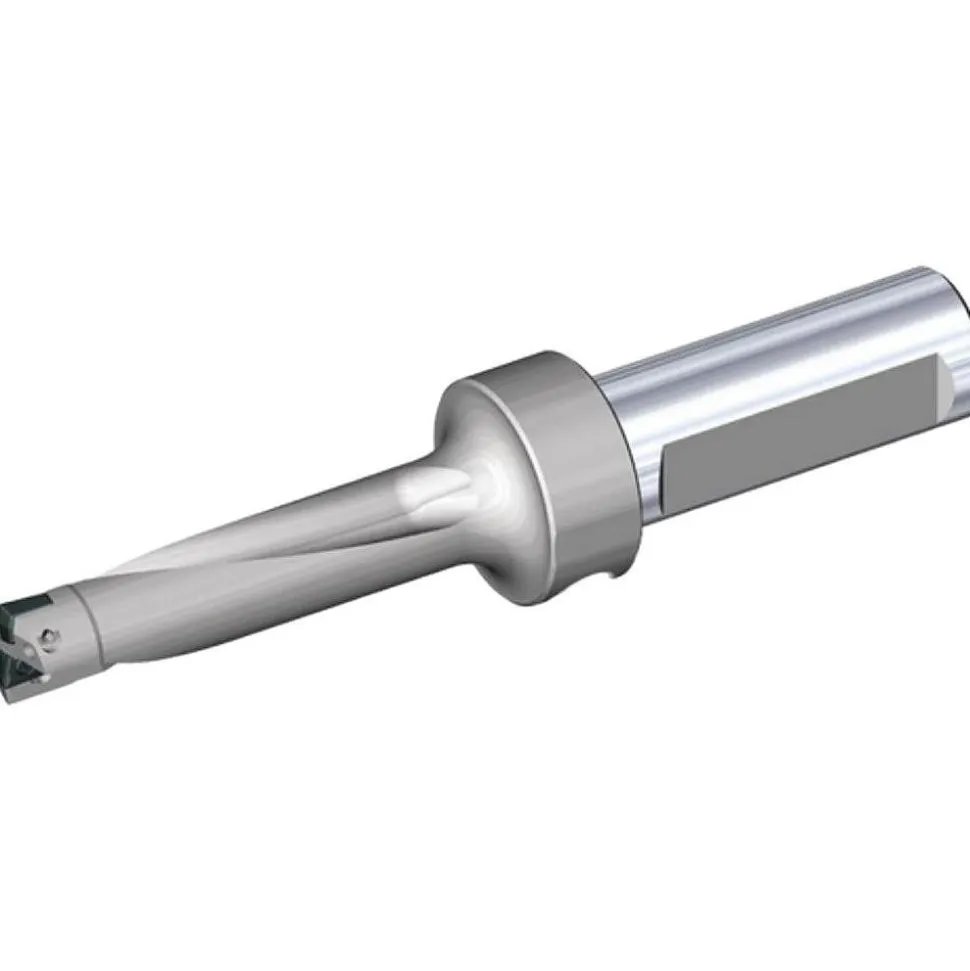

Indexable Insert Drill: DFR0750R4SSF100, 20.07 mm Max Dia, 76.20 mm Max Depth, 4xD
Original price was: 734,00 $.120,99 $Current price is: 120,99 $.

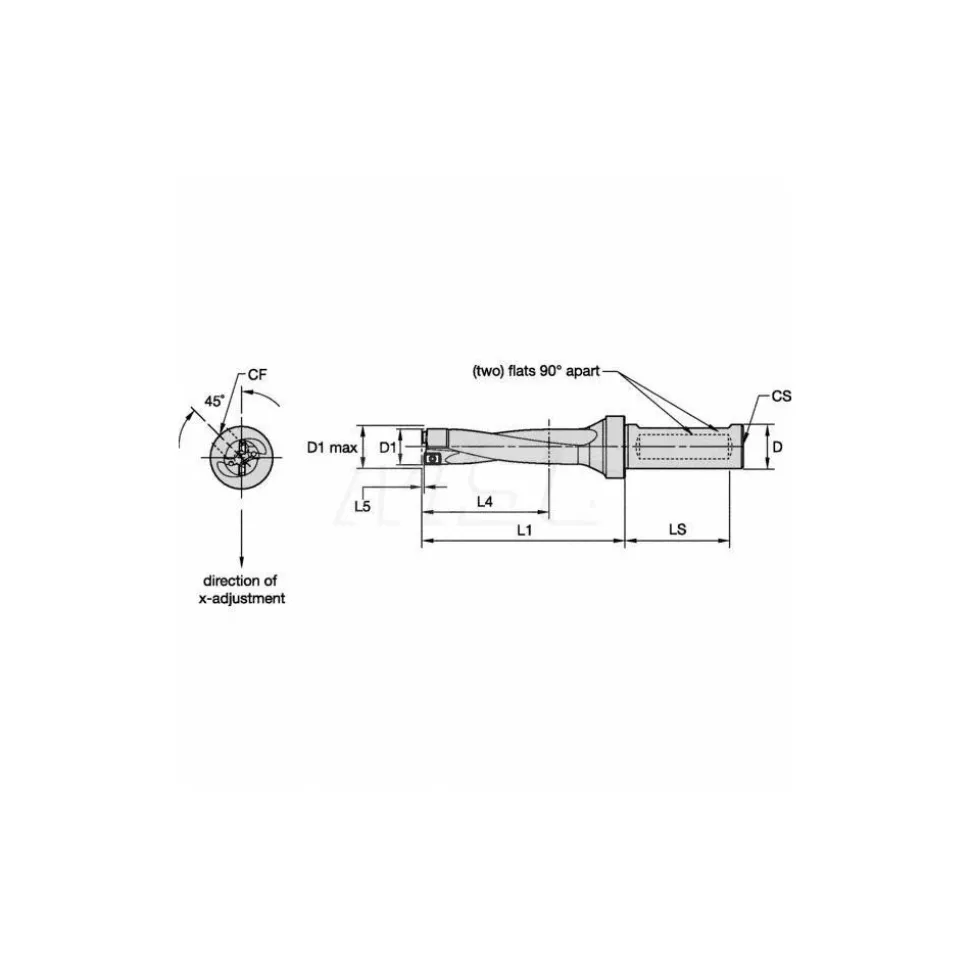

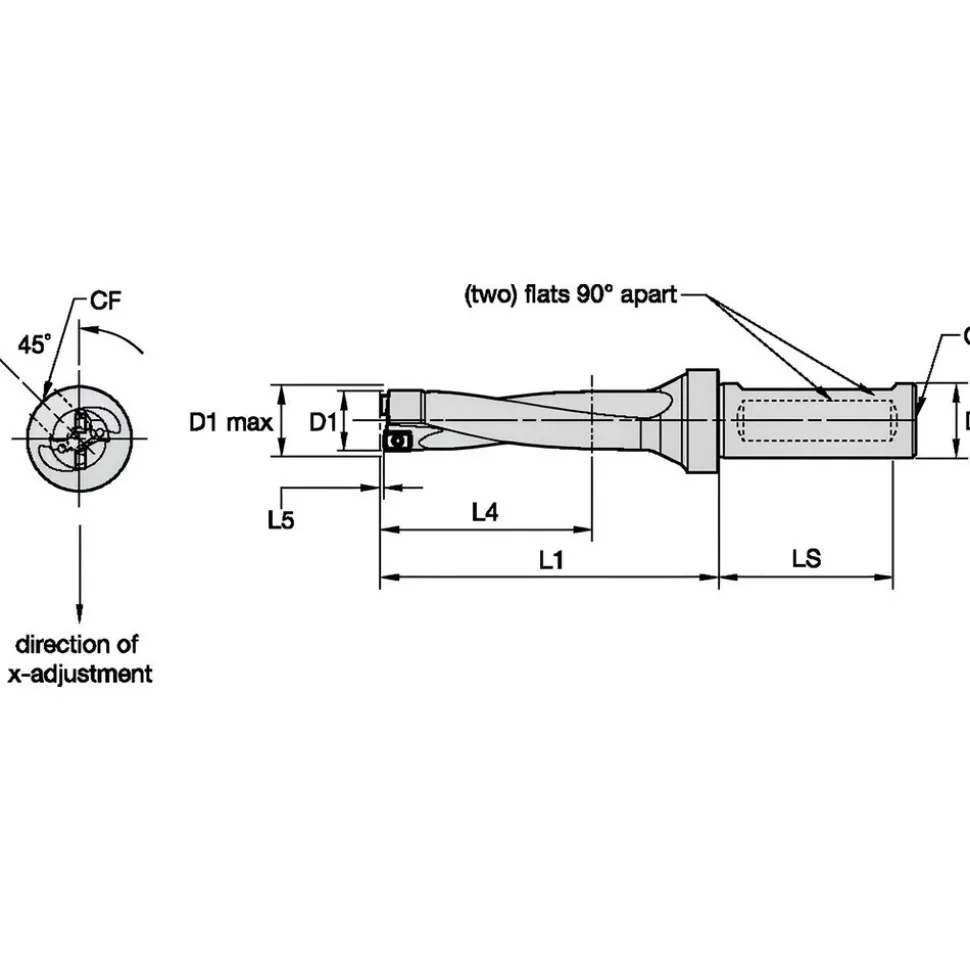

Specifications
| Compatible Drill Style: DFR | Maximum Drill Diameter (mm): 20.07 |
| Maximum Drill Diameter (Decimal Inch): 0.7894 | Maximum Drill Depth (Inch): 3 |
| Maximum Drill Depth (Decimal Inch): 3.0000 | Maximum Drill Depth (mm): 76.20 |
| Shank Type: Flange; Weldon Flat | Shank Diameter (Inch): 1 |
| Shank Diameter (Decimal Inch): 1.0000 | Number of Drill Inserts: 2 |
| Cutting Direction: Right Hand | Maximum Drill Depth Range (Decimal Inch): 3.0000 to 4.0000 |
| Maximum Drill Depth Range (mm): 75.00 to 100.00 | Tool Material: Steel |
| Compatible Insert Style: DFR | Compatible Insert Size Code: 0302.. |
| Drill Depth by Diameter Ratio: 4xD | Coolant Entry Style Code: 1-Axial Concentric Entry |
| Overall Length (Decimal Inch): 7.0170 | Series: DFR |
| Flute Length (Decimal Inch): 3.0000 | Body Length (mm): 101.60 |
| Body Length (Decimal Inch): 4.0170 | Shank Length (Decimal Inch): 3.0000 |
| Tool Application: Drilling | Tool Performance: General Purpose |
| Insert Size (Decimal Inch): 0.3429×0.2362×0.1134 | Insert Size (mm): 8.71×6.00×2.88 |
| UNSPSC Code: 23291503 | Insert Compatibility: DFR0302. |
| Body Side Coolant Hole Thread Size (Inch): 1/8-27 | Shank End Coolant Hole Thread Size (Inch): 1/4-18 |
| Insert Lock Screw: M2.2-0.45×5.2T7 | Coolant Through: Yes |
| Country of Origin: Bulgaria | |
| Compatible Drill Style: DFR | |
| Maximum Drill Diameter (mm): 20.07 | |
| Maximum Drill Diameter (Decimal Inch): 0.7894 | |
| Maximum Drill Depth (Inch): 3 | |
| Maximum Drill Depth (Decimal Inch): 3.0000 | |
| Maximum Drill Depth (mm): 76.20 | |
| Shank Type: Flange; Weldon Flat | |
| Shank Diameter (Inch): 1 | |
| Shank Diameter (Decimal Inch): 1.0000 | |
| Number of Drill Inserts: 2 | |
| Cutting Direction: Right Hand | |
| Maximum Drill Depth Range (Decimal Inch): 3.0000 to 4.0000 | |
| Maximum Drill Depth Range (mm): 75.00 to 100.00 | |
| Tool Material: Steel | |
| Compatible Insert Style: DFR | |
| Compatible Insert Size Code: 0302.. | |
| Drill Depth by Diameter Ratio: 4xD | |
| Coolant Entry Style Code: 1-Axial Concentric Entry | |
| Overall Length (Decimal Inch): 7.0170 | |
| Series: DFR | |
| Flute Length (Decimal Inch): 3.0000 | |
| Body Length (mm): 101.60 | |
| Body Length (Decimal Inch): 4.0170 | |
| Shank Length (Decimal Inch): 3.0000 | |
| Tool Application: Drilling | |
| Tool Performance: General Purpose | |
| Insert Size (Decimal Inch): 0.3429×0.2362×0.1134 | |
| Insert Size (mm): 8.71×6.00×2.88 | |
| UNSPSC Code: 23291503 | |
| Insert Compatibility: DFR0302. | |
| Body Side Coolant Hole Thread Size (Inch): 1/8-27 | |
| Shank End Coolant Hole Thread Size (Inch): 1/4-18 | |
| Insert Lock Screw: M2.2-0.45×5.2T7 | |
| Coolant Through: Yes | |
| Country of Origin: Bulgaria |
| MSC# | 64919046 |
| Mfr# | 3022347 |
