Sale!

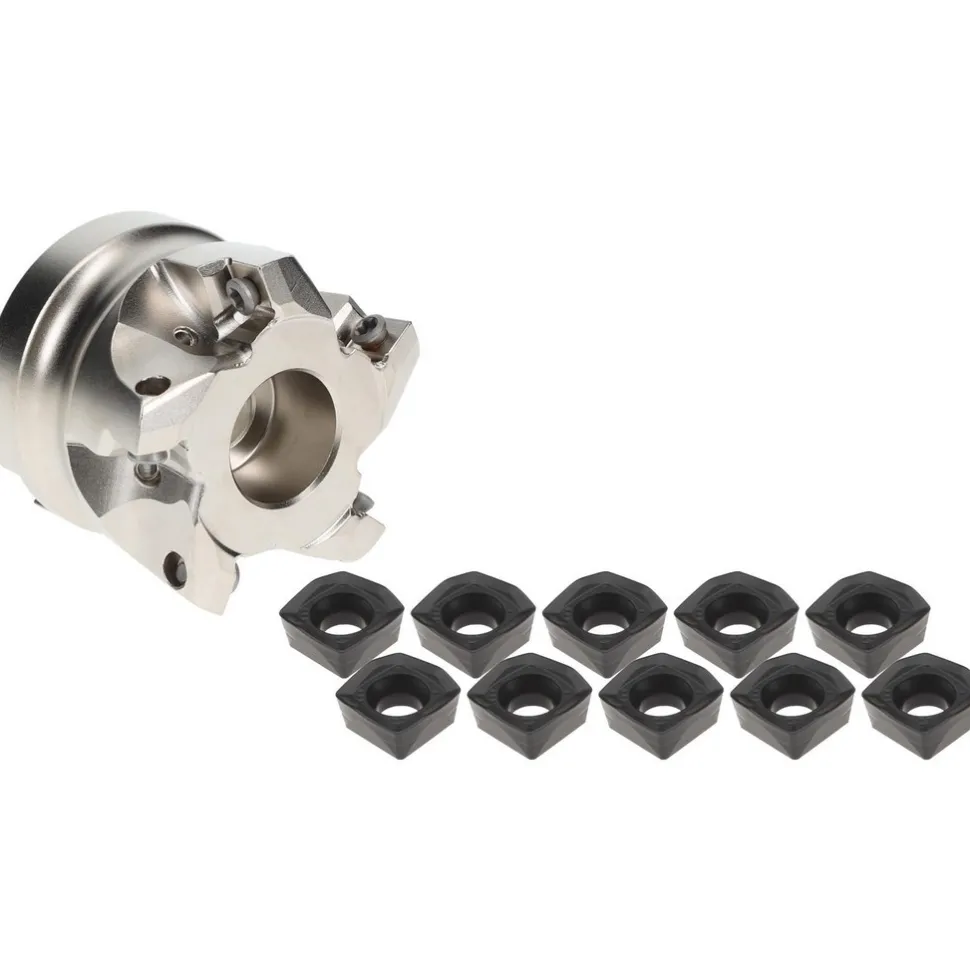

Indexable High-Feed Face Mills: Cutting Diameter (mm): 50.80; Cutting Diameter (Inch): 2

Original price was: 512,00 $.Current price is: 122,89 $.

SKU: SKUEgvtpEDoUQ Categories: Indexable Cutting Tools, Indexable Milling, Shop All Products Tag: Accupro Brand: Accupro

Description
Reviews (0)

Specifications

Cutting Diameter (mm): 50.80	Cutting Diameter (Inch): 2
Minimum Cutting Diameter (Decimal Inch): 2.0000	Maximum Cutting Diameter (Decimal Inch): 3.3460
Maximum Depth of Cut (Decimal Inch): 0.0394	Arbor Hole Diameter (Decimal Inch): 0.7500
Shank Diameter (mm): 19.05	Compatible Insert Size Code: 10
Maximum Ramping Angle: 0.8	Cutter Style: ASSM
Cutting Direction: Right Hand	Insert Compatibility: XDLX; XDLT
Insert Holding Method: Screw	Series: CI
Keyway Width (Decimal Inch): 0.3210	Keyway Width (mm): 8.15
Overall Height (Decimal Inch): 1.5000	Maximum RPM: 23500
Tool Application: Milling	Complete Insert Compatibility: XDLX; XDLT
Shank Diameter (Decimal Inch): 0.7500	Number Of Cutter Inserts: 5
Number Of Flutes: 5	Coolant Through: No
Hub Diameter (Decimal Inch): 1.7717	UNSPSC Code: 27112803
Country of Origin: Luxembourg
Cutting Diameter (mm): 50.80
Cutting Diameter (Inch): 2
Minimum Cutting Diameter (Decimal Inch): 2.0000
Maximum Cutting Diameter (Decimal Inch): 3.3460
Maximum Depth of Cut (Decimal Inch): 0.0394
Arbor Hole Diameter (Decimal Inch): 0.7500
Shank Diameter (mm): 19.05
Compatible Insert Size Code: 10
Maximum Ramping Angle: 0.8
Cutter Style: ASSM
Cutting Direction: Right Hand
Insert Compatibility: XDLX; XDLT
Insert Holding Method: Screw
Series: CI
Keyway Width (Decimal Inch): 0.3210
Keyway Width (mm): 8.15
Overall Height (Decimal Inch): 1.5000
Maximum RPM: 23500
Tool Application: Milling
Complete Insert Compatibility: XDLX; XDLT
Shank Diameter (Decimal Inch): 0.7500
Number Of Cutter Inserts: 5
Number Of Flutes: 5
Coolant Through: No
Hub Diameter (Decimal Inch): 1.7717
UNSPSC Code: 27112803
Country of Origin: Luxembourg
