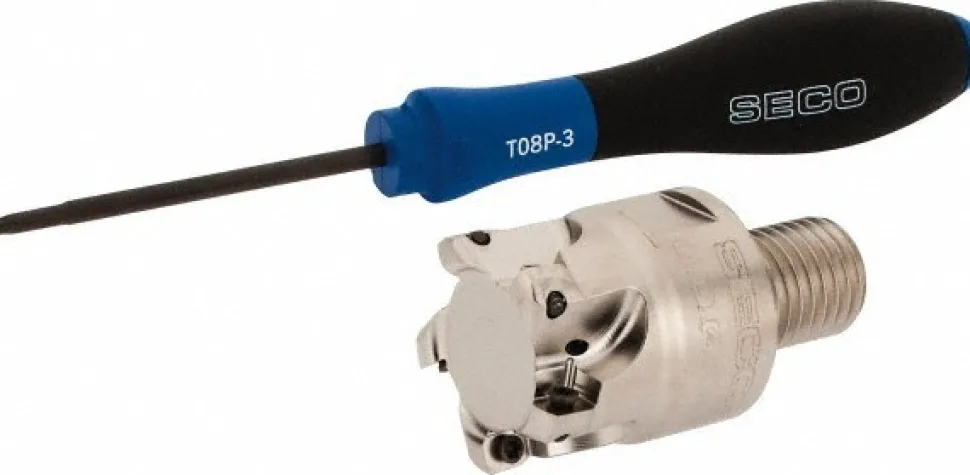

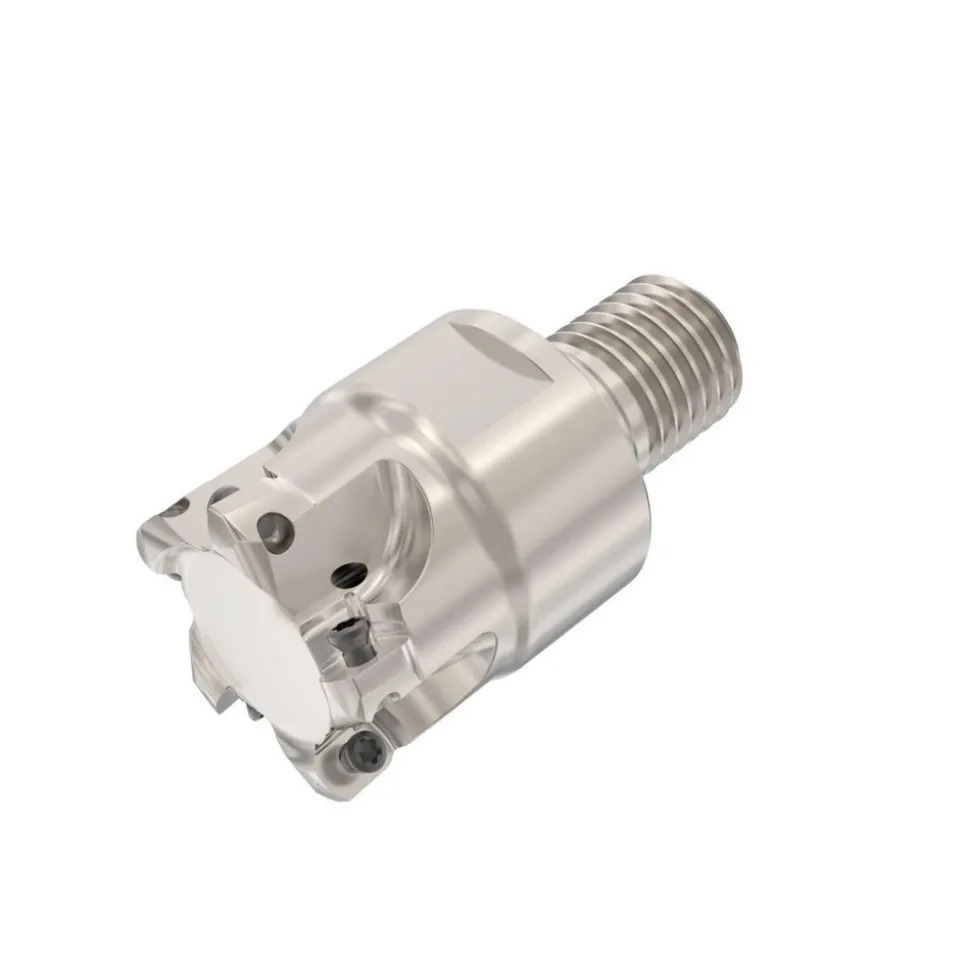

Indexable High-Feed End Mill: R2172101.2516RELP06.5a, 1" Cut Dia, Modular Connection Shank

Indexable High-Feed End Mill: R2172101.2516RELP06.5a, 1″ Cut Dia, Modular Connection Shank

128,99 $

SKU: SKUSfBpnLYUIb Categories: Indexable Cutting Tools, Indexable Milling, Shop All Products Tag: Seco Brand: Seco

Description
Reviews (0)

Specifications

Minimum Cutting Diameter (Decimal Inch): 0.9100	Maximum Cutting Diameter (Decimal Inch): 1.0000
Maximum Cutting Diameter (mm): 25.40	Maximum Cutting Diameter (Inch): 1
Maximum Depth of Cut (Decimal Inch): 0.0300	Toolholder Style: R217.21
Shank Type: Modular Connection	Maximum Ramping Angle: 2.00
Compatible Insert Style: LP06	Insert Holding Method: Screw
Number Of Cutter Inserts: 5	Maximum RPM: 27000
Modular Connection Size: M16	Functional Length (Decimal Inch): 1.1810
Tool Application: Milling	Coolant Through: Yes
UNSPSC Code: 27112803	Country of Origin: France
Minimum Cutting Diameter (Decimal Inch): 0.9100
Maximum Cutting Diameter (Decimal Inch): 1.0000
Maximum Cutting Diameter (mm): 25.40
Maximum Cutting Diameter (Inch): 1
Maximum Depth of Cut (Decimal Inch): 0.0300
Toolholder Style: R217.21
Shank Type: Modular Connection
Maximum Ramping Angle: 2.00
Compatible Insert Style: LP06
Insert Holding Method: Screw
Number Of Cutter Inserts: 5
Maximum RPM: 27000
Modular Connection Size: M16
Functional Length (Decimal Inch): 1.1810
Tool Application: Milling
Coolant Through: Yes
UNSPSC Code: 27112803
Country of Origin: France
