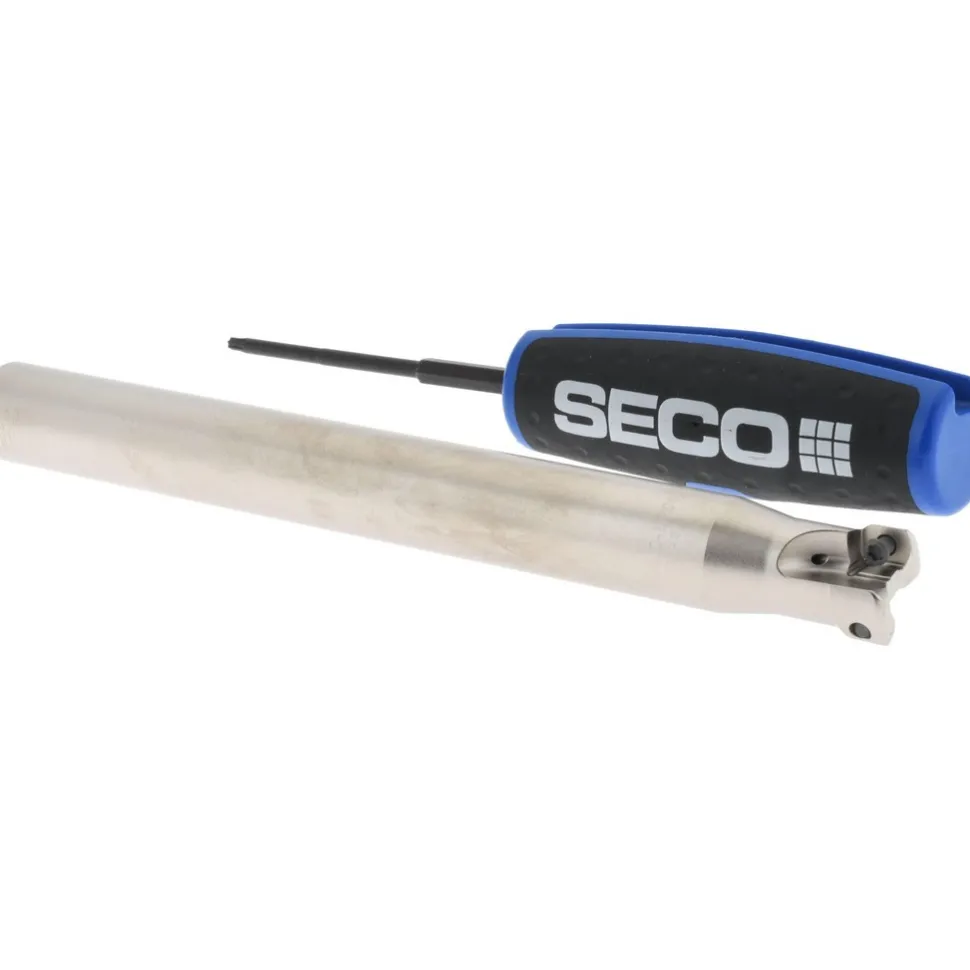

Indexable High-Feed End Mill: R217.21-00.625.0LP062A, Cylindrical Shank
Original price was: 518,00 $.126,89 $Current price is: 126,89 $.
Specifications
| Minimum Cutting Diameter (Decimal Inch): 0.2900 | Maximum Cutting Diameter (Decimal Inch): 1.5000 |
| Maximum Cutting Diameter (mm): 38.10 | Maximum Cutting Diameter (Inch): 1-1/2 |
| Maximum Depth of Cut (Decimal Inch): 0.0300 | Toolholder Style: R217.21 |
| Shank Type: Cylindrical | Shank Diameter (Decimal Inch): 0.6250 |
| Shank Diameter (Inch): 5/8 | Maximum Ramping Angle: 0.90 |
| Compatible Insert Style: LP06 | Insert Holding Method: Screw |
| Number Of Cutter Inserts: 2 | Overall Length (Decimal Inch): 6.0000 |
| Maximum RPM: 39000 | Functional Length (Decimal Inch): 1.5750 |
| Tool Application: Milling | Weldon Flat: No |
| Coolant Through: Yes | UNSPSC Code: 27112803 |
| Country of Origin: France | |
| Minimum Cutting Diameter (Decimal Inch): 0.2900 | |
| Maximum Cutting Diameter (Decimal Inch): 1.5000 | |
| Maximum Cutting Diameter (mm): 38.10 | |
| Maximum Cutting Diameter (Inch): 1-1/2 | |
| Maximum Depth of Cut (Decimal Inch): 0.0300 | |
| Toolholder Style: R217.21 | |
| Shank Type: Cylindrical | |
| Shank Diameter (Decimal Inch): 0.6250 | |
| Shank Diameter (Inch): 5/8 | |
| Maximum Ramping Angle: 0.90 | |
| Compatible Insert Style: LP06 | |
| Insert Holding Method: Screw | |
| Number Of Cutter Inserts: 2 | |
| Overall Length (Decimal Inch): 6.0000 | |
| Maximum RPM: 39000 | |
| Functional Length (Decimal Inch): 1.5750 | |
| Tool Application: Milling | |
| Weldon Flat: No | |
| Coolant Through: Yes | |
| UNSPSC Code: 27112803 | |
| Country of Origin: France |
| MSC# | 44181014 |
| Mfr# | 02789777 |
