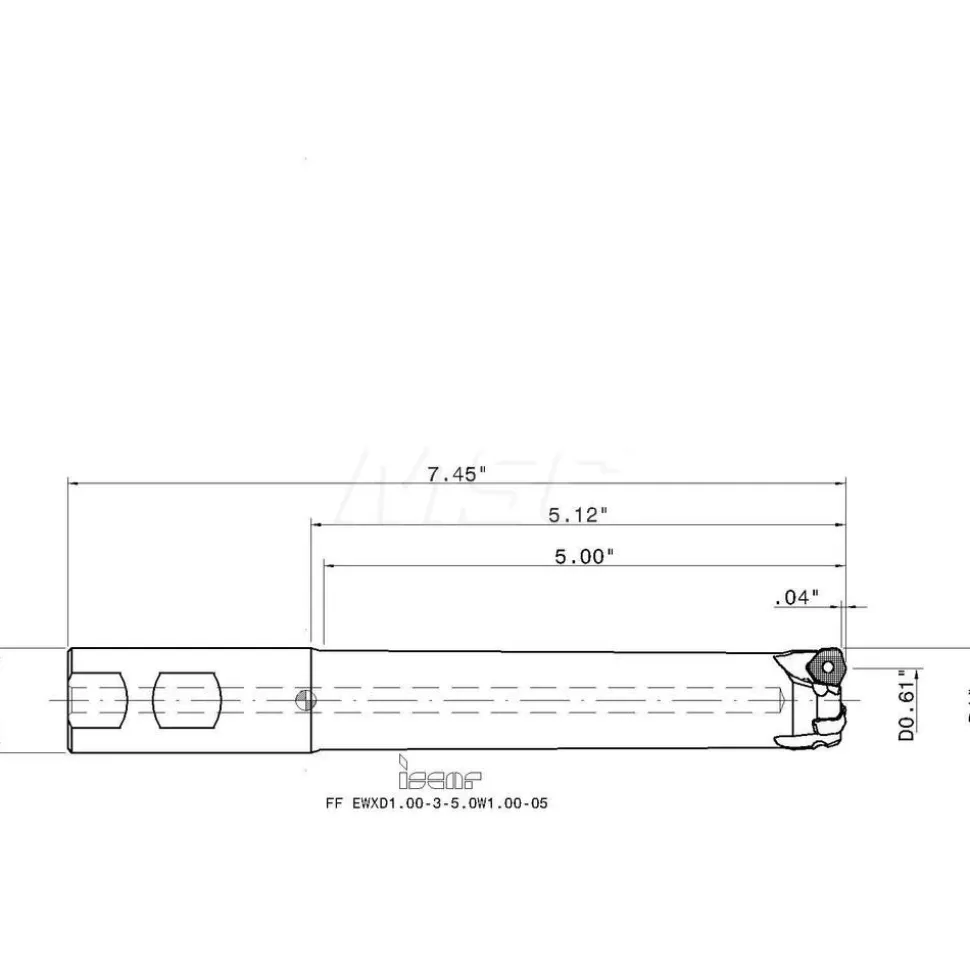

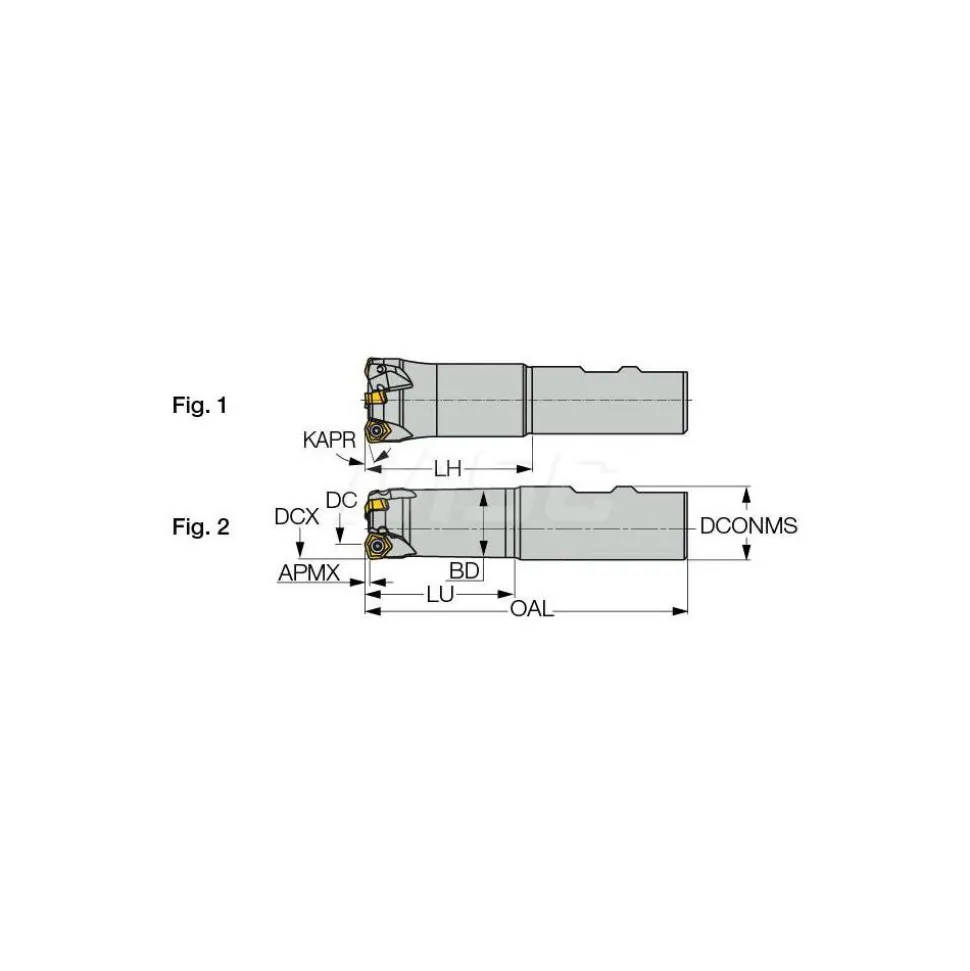

Indexable High-Feed End Mill: FFEWXD1.0035.0W1.0005, 1″ Cut Dia, 1″ Shank Dia, Weldon Flat Shank
122,89 $
Specifications
| Minimum Cutting Diameter (Decimal Inch): 0.6100 | Maximum Cutting Diameter (Decimal Inch): 1.0000 |
| Maximum Cutting Diameter (Inch): 1 | Maximum Depth of Cut (Decimal Inch): 0.0430 |
| Toolholder Style: FF EWX-05 | Shank Type: Weldon Flat |
| Shank Diameter (Decimal Inch): 1.0000 | Shank Diameter (Inch): 1 |
| Maximum Ramping Angle: 5.00 | Compatible Insert Style: H600WXCU05T312T |
| Insert Holding Method: Screw | Number Of Cutter Inserts: 3 |
| Overall Length (Decimal Inch): 7.4500 | Series: High Feed 6 |
| Head Length (Decimal Inch): 5.1200 | Tool Application: Milling |
| Standards: ISO 13399 | Weldon Flat: Yes |
| Number Of Flutes: 3 | Coolant Through: Yes |
| UNSPSC Code: 27112803 | Country of Origin: Israel |
| Minimum Cutting Diameter (Decimal Inch): 0.6100 | |
| Maximum Cutting Diameter (Decimal Inch): 1.0000 | |
| Maximum Cutting Diameter (Inch): 1 | |
| Maximum Depth of Cut (Decimal Inch): 0.0430 | |
| Toolholder Style: FF EWX-05 | |
| Shank Type: Weldon Flat | |
| Shank Diameter (Decimal Inch): 1.0000 | |
| Shank Diameter (Inch): 1 | |
| Maximum Ramping Angle: 5.00 | |
| Compatible Insert Style: H600WXCU05T312T | |
| Insert Holding Method: Screw | |
| Number Of Cutter Inserts: 3 | |
| Overall Length (Decimal Inch): 7.4500 | |
| Series: High Feed 6 | |
| Head Length (Decimal Inch): 5.1200 | |
| Tool Application: Milling | |
| Standards: ISO 13399 | |
| Weldon Flat: Yes | |
| Number Of Flutes: 3 | |
| Coolant Through: Yes | |
| UNSPSC Code: 27112803 | |
| Country of Origin: Israel |
| MSC# | 91146191 |
| Mfr# | 3105546 |
