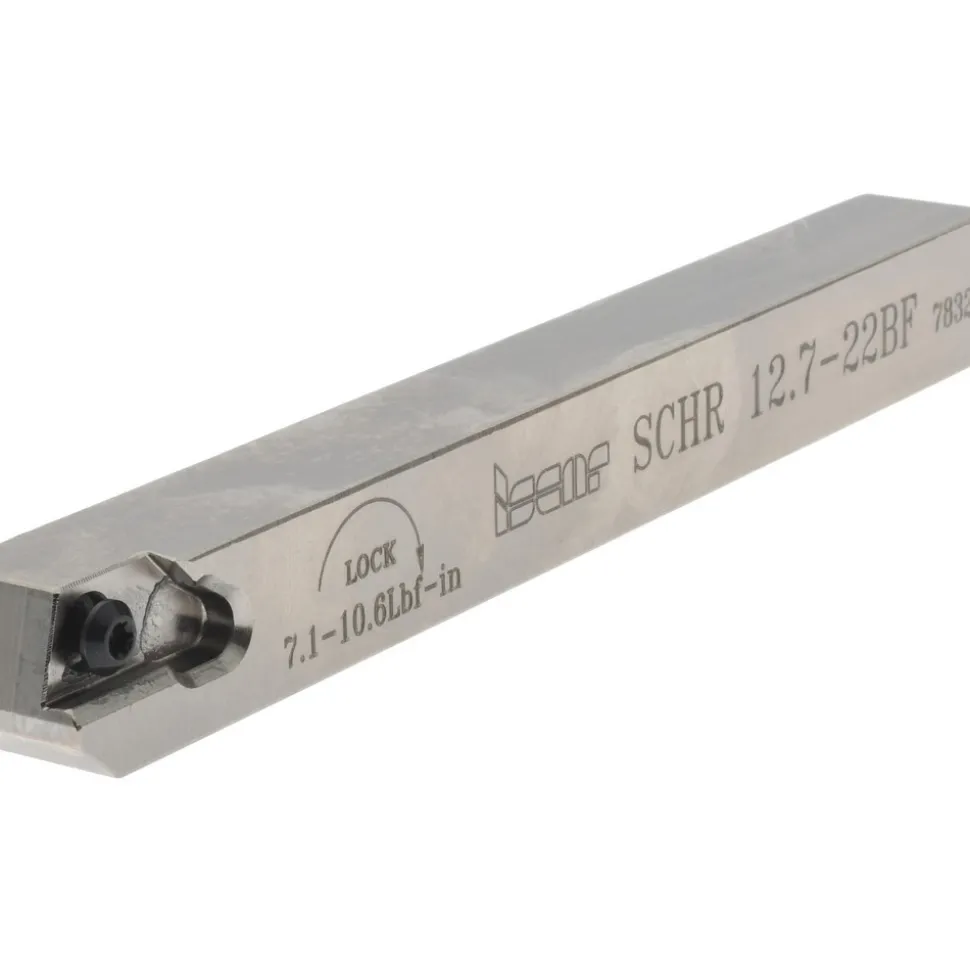

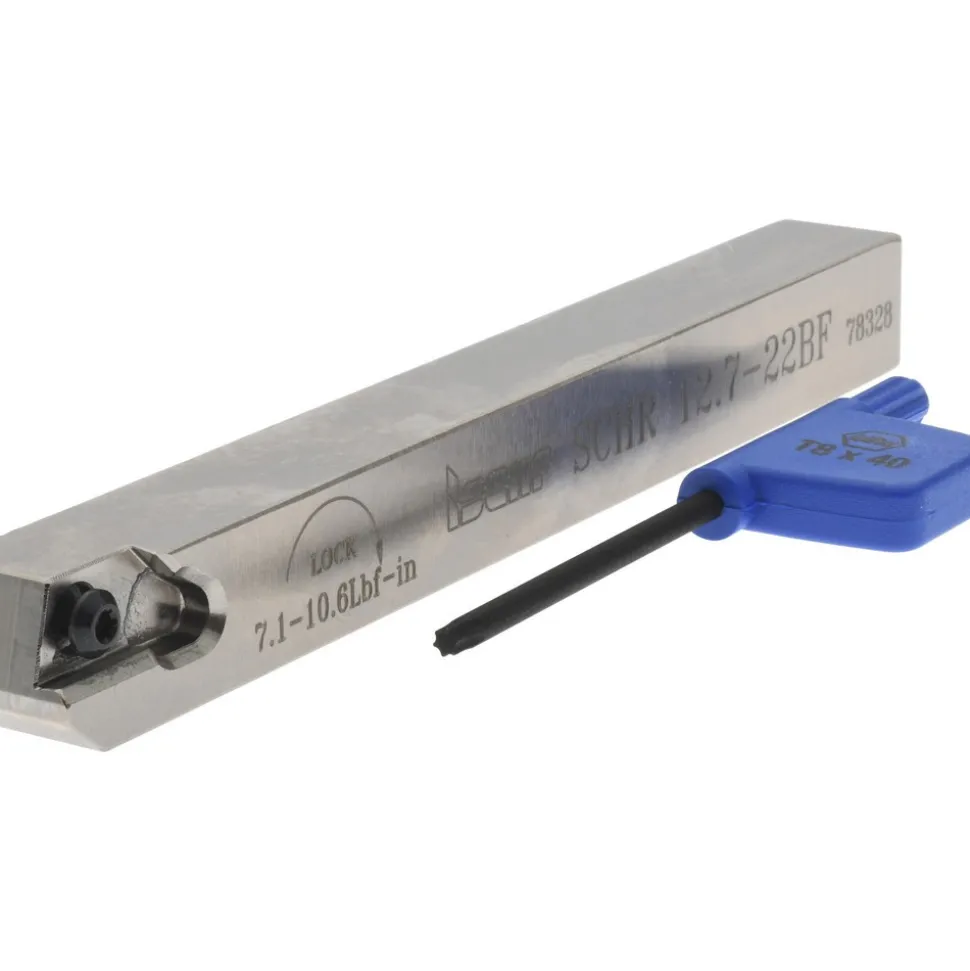

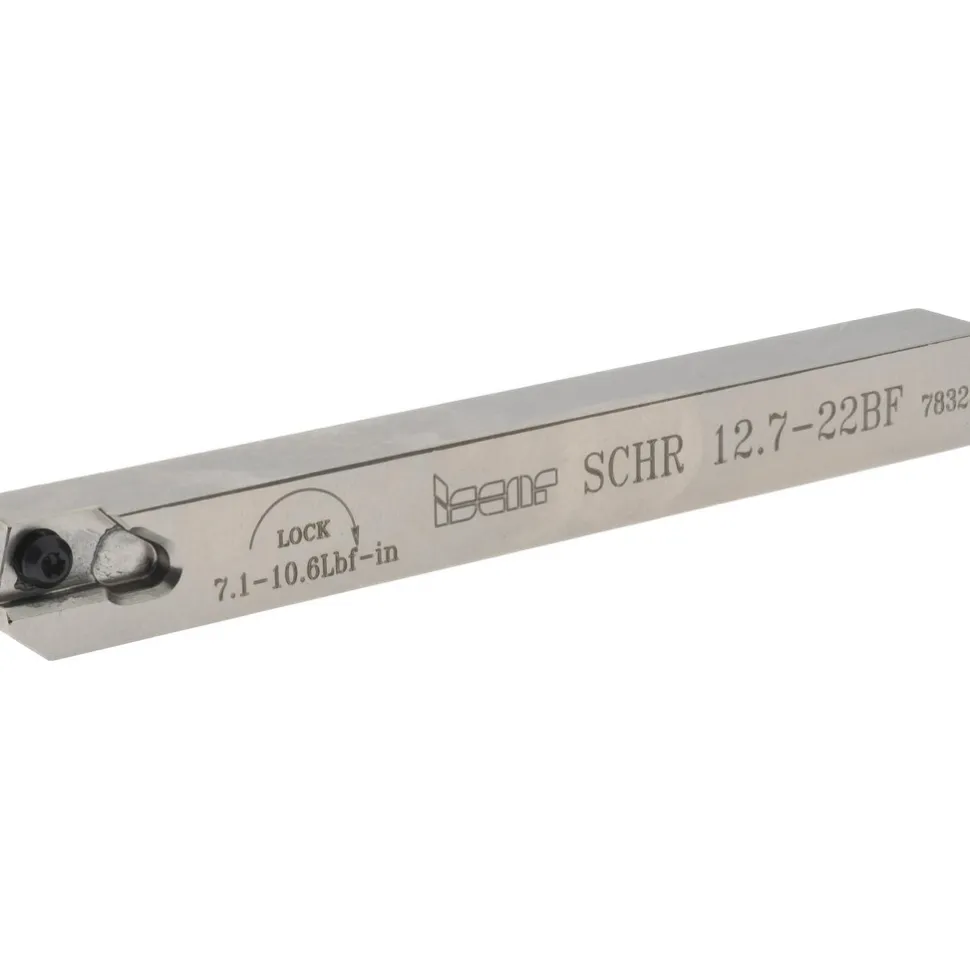

Indexable Grooving Toolholder: SCHR12.7-22BF, External, Right Hand
96,99 $
Specifications
| Toolholder Type: External Grooving | Hand of Holder: Right Hand |
| Maximum Depth of Cut (Decimal Inch): 0.3150 | Minimum Groove Width (Decimal Inch): 0.0200 |
| Toolholder Style: SCH | Maximum Groove Width (Decimal Inch): 0.0980 |
| Insert Holding Method: Clamp | Insert Compatibility: SCIR 22 |
| Compatible Insert Size Code: SCIR/L-22-NX; SCIR/L 22 ER/EL/ERA/ELA; SCIR/L-22-AR/AL; SCIR/L-22-AD; SCIR-22-MTR-ISO; SCIR/L-22-N/R/L; SCIR/L-22-NP; SCIR/L-22-MTR/MTL; SCIR/L 22 BR/BL/BRA/BLA | Shank Height (Decimal Inch): 0.5000 |
| Series: Swisscut | Overall Length (Decimal Inch): 4.9210 |
| Multi-use Tool: Yes | Primary Workpiece Material: Universal |
| UNSPSC Code: 23153308 | Primary Workpiece Material Code: P; S; H; K; M; N |
| Complete Insert Compatibility: SCIR 22-BR00-05K7; SCIR 22-050R12-00; SCIR 22-AR00-25K16; SCIR 22-AR10-25K8; SCIR 22-250NP05; SCIR 22-200NP05; SCIR 22-150NP05; SCIR 22-200N-10; SCIR 22-150N-00; SCIR 22-BR10-05K7; SCIR 22-050N-00; SCIR 22-100N-00; SCIR 22-EL00-07K0; SCIR 22-ER00-07K0 | Coolant Through: No |
| Country of Origin: Israel | |
| Toolholder Type: External Grooving | |
| Hand of Holder: Right Hand | |
| Maximum Depth of Cut (Decimal Inch): 0.3150 | |
| Minimum Groove Width (Decimal Inch): 0.0200 | |
| Toolholder Style: SCH | |
| Maximum Groove Width (Decimal Inch): 0.0980 | |
| Insert Holding Method: Clamp | |
| Insert Compatibility: SCIR 22 | |
| Compatible Insert Size Code: SCIR/L-22-NX; SCIR/L 22 ER/EL/ERA/ELA; SCIR/L-22-AR/AL; SCIR/L-22-AD; SCIR-22-MTR-ISO; SCIR/L-22-N/R/L; SCIR/L-22-NP; SCIR/L-22-MTR/MTL; SCIR/L 22 BR/BL/BRA/BLA | |
| Shank Height (Decimal Inch): 0.5000 | |
| Series: Swisscut | |
| Overall Length (Decimal Inch): 4.9210 | |
| Multi-use Tool: Yes | |
| Primary Workpiece Material: Universal | |
| UNSPSC Code: 23153308 | |
| Primary Workpiece Material Code: P; S; H; K; M; N | |
| Complete Insert Compatibility: SCIR 22-BR00-05K7; SCIR 22-050R12-00; SCIR 22-AR00-25K16; SCIR 22-AR10-25K8; SCIR 22-250NP05; SCIR 22-200NP05; SCIR 22-150NP05; SCIR 22-200N-10; SCIR 22-150N-00; SCIR 22-BR10-05K7; SCIR 22-050N-00; SCIR 22-100N-00; SCIR 22-EL00-07K0; SCIR 22-ER00-07K0 | |
| Coolant Through: No | |
| Country of Origin: Israel |
| MSC# | 53538450 |
| Mfr# | 2802079 |
