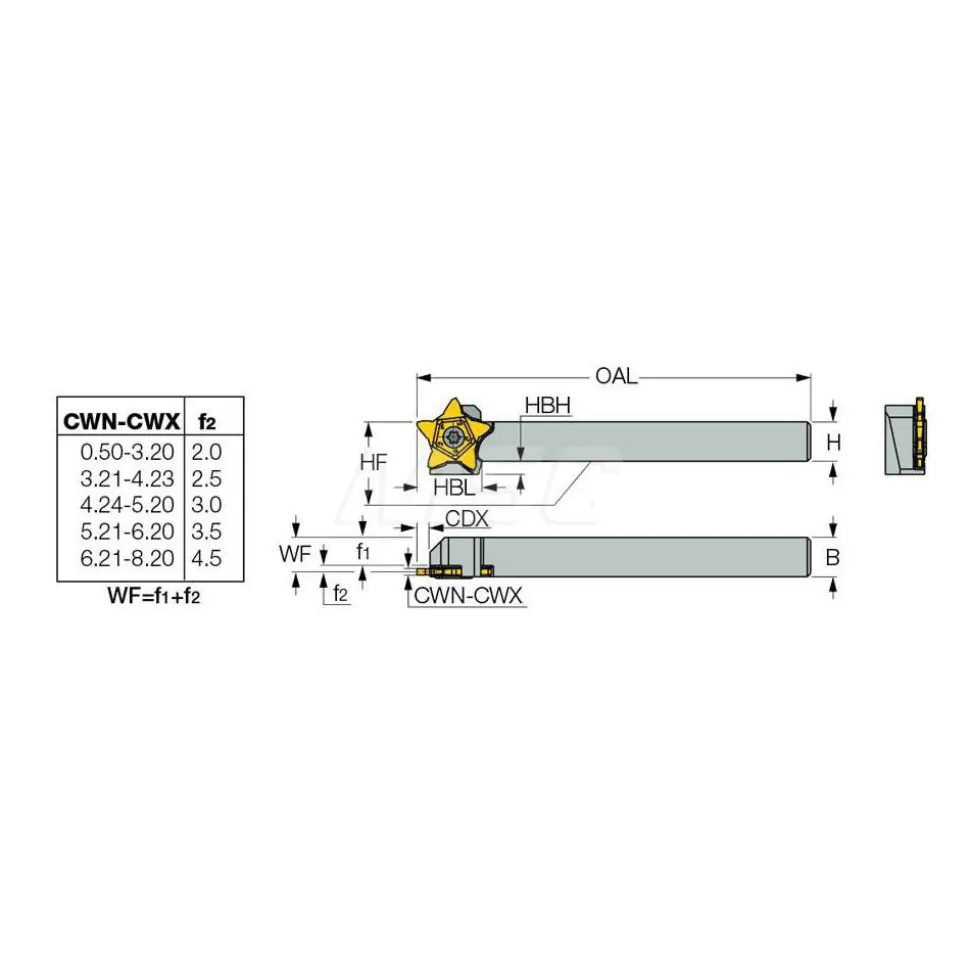

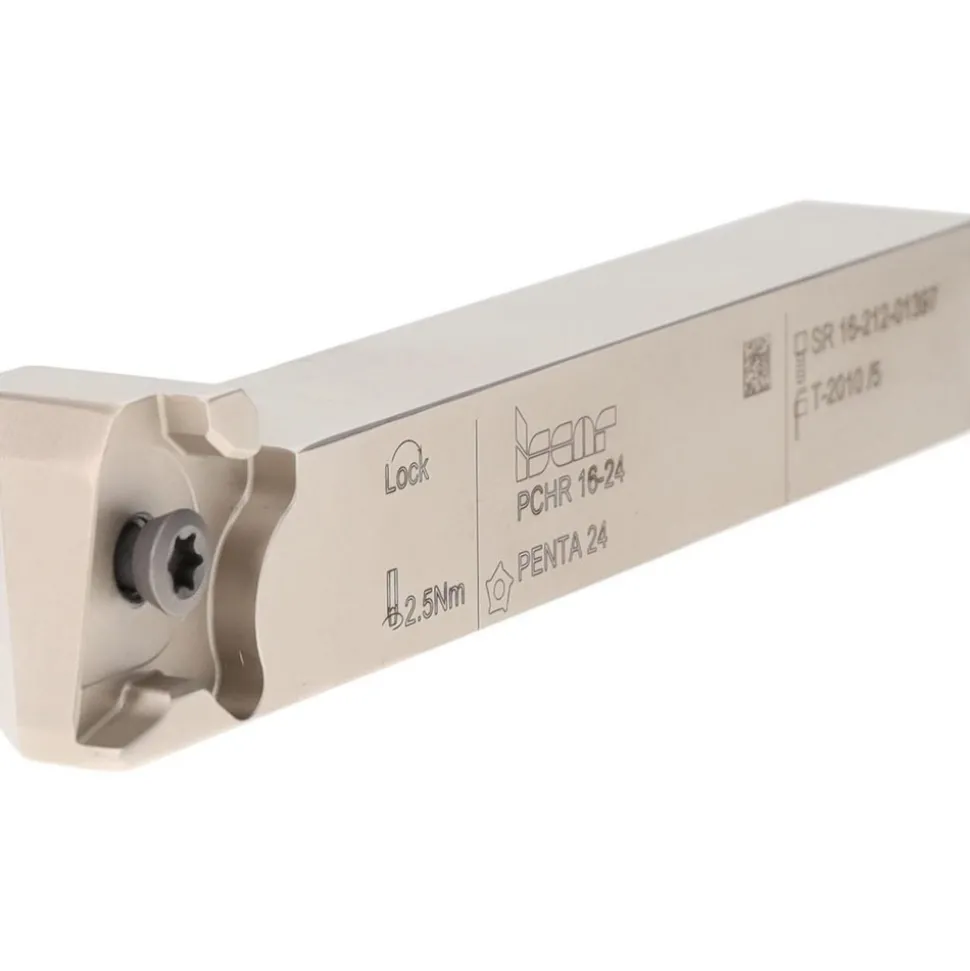

Indexable Grooving-Cutoff Toolholder: PCHR 16-24, 0.5 to 3.2 mm Groove Width, 6.5 mm Max Depth of Cut, Right Hand
116,89 $
Specifications
| Hand of Holder: Right Hand | Maximum Depth of Cut (Decimal Inch): 0.2560 |
| Maximum Depth of Cut (mm): 6.50 | Maximum Groove Width (Decimal Inch): 0.1250 |
| Maximum Groove Width (mm): 3.20 | Minimum Groove Width (Decimal Inch): 0.0197 |
| Minimum Groove Width (mm): 0.50 | Toolholder Style: PCH |
| Insert Holding Method: Screw | Compatible Insert Size Code: PENTA 24-ISO; PENTA 24N-C; PENTA 24-UN; PENTA 24N-PF/P; PENTA 24R-C; PENTA 24-WT; PENTA 24N-J; PENTA 24-BSPT; PENTA 24R/L-Z; PENTA 24-MT; PENTA 24R-P; PENTA 24N-PF; PENTA 24-NPT; PENTA 24N-Z; PENTA 24-W; PENTA 24R/L-J |
| Insert Compatibility: PENTA 24… | Shank Height (mm): 16.00 |
| Shank Height (Decimal Inch): 0.6299 | Shank Length (mm): 100.50 |
| Shank Length (Decimal Inch): 3.9567 | Shank Width/Diameter (Decimal Inch): 0.6299 |
| Shank Width/Diameter (mm): 16.00 | Series: PentaCut |
| Overall Length (mm): 120.00 | Overall Length (Decimal Inch): 4.7244 |
| Cutting Tool Application: Grooving; Cut-Off | Full Radius Insert: No |
| Head Length (Decimal Inch): 0.7677 | Head Length (mm): 19.50 |
| Standards: ISO 13399 | MSC/Manufacturer Number: PCHR/L 16-24 |
| Coolant Through: No | UNSPSC Code: 23153308 |
| Country of Origin: Israel | |
| Hand of Holder: Right Hand | |
| Maximum Depth of Cut (Decimal Inch): 0.2560 | |
| Maximum Depth of Cut (mm): 6.50 | |
| Maximum Groove Width (Decimal Inch): 0.1250 | |
| Maximum Groove Width (mm): 3.20 | |
| Minimum Groove Width (Decimal Inch): 0.0197 | |
| Minimum Groove Width (mm): 0.50 | |
| Toolholder Style: PCH | |
| Insert Holding Method: Screw | |
| Compatible Insert Size Code: PENTA 24-ISO; PENTA 24N-C; PENTA 24-UN; PENTA 24N-PF/P; PENTA 24R-C; PENTA 24-WT; PENTA 24N-J; PENTA 24-BSPT; PENTA 24R/L-Z; PENTA 24-MT; PENTA 24R-P; PENTA 24N-PF; PENTA 24-NPT; PENTA 24N-Z; PENTA 24-W; PENTA 24R/L-J | |
| Insert Compatibility: PENTA 24… | |
| Shank Height (mm): 16.00 | |
| Shank Height (Decimal Inch): 0.6299 | |
| Shank Length (mm): 100.50 | |
| Shank Length (Decimal Inch): 3.9567 | |
| Shank Width/Diameter (Decimal Inch): 0.6299 | |
| Shank Width/Diameter (mm): 16.00 | |
| Series: PentaCut | |
| Overall Length (mm): 120.00 | |
| Overall Length (Decimal Inch): 4.7244 | |
| Cutting Tool Application: Grooving; Cut-Off | |
| Full Radius Insert: No | |
| Head Length (Decimal Inch): 0.7677 | |
| Head Length (mm): 19.50 | |
| Standards: ISO 13399 | |
| MSC/Manufacturer Number: PCHR/L 16-24 | |
| Coolant Through: No | |
| UNSPSC Code: 23153308 | |
| Country of Origin: Israel |
| MSC# | 07705759 |
| Mfr# | 2301623 |
| Big Book# | 892 |
