Sale!

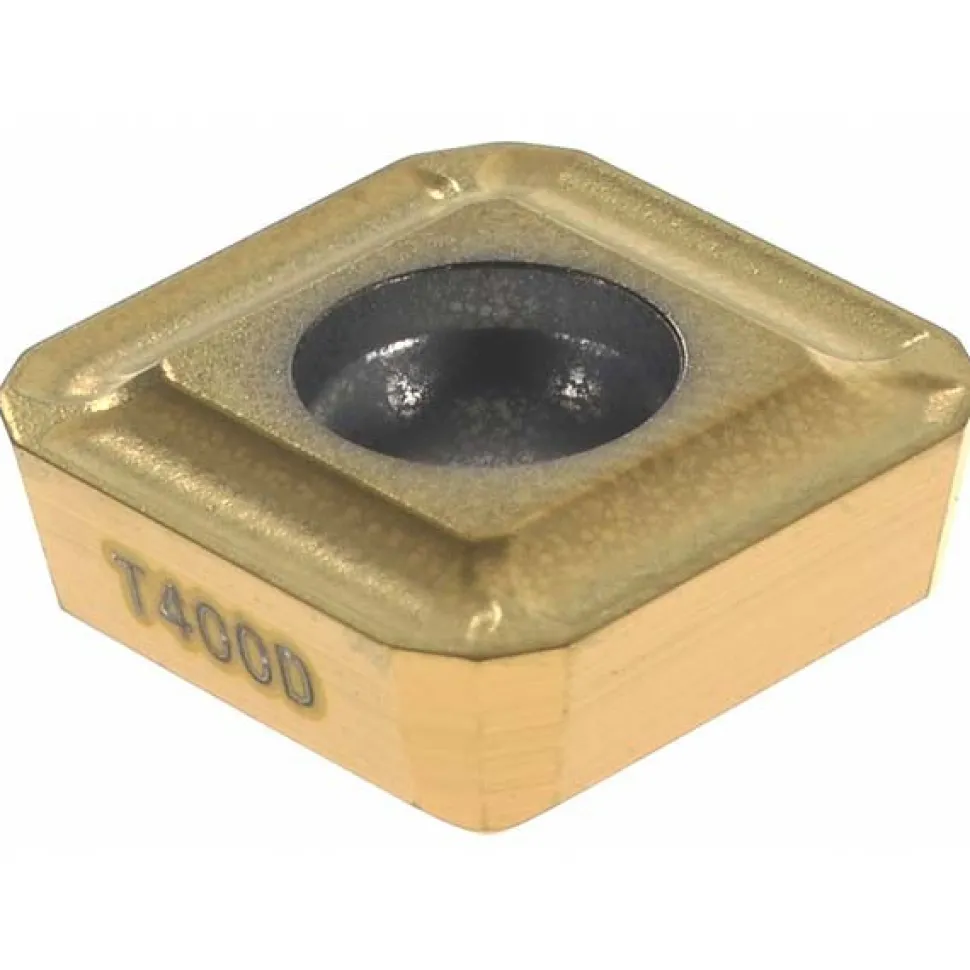

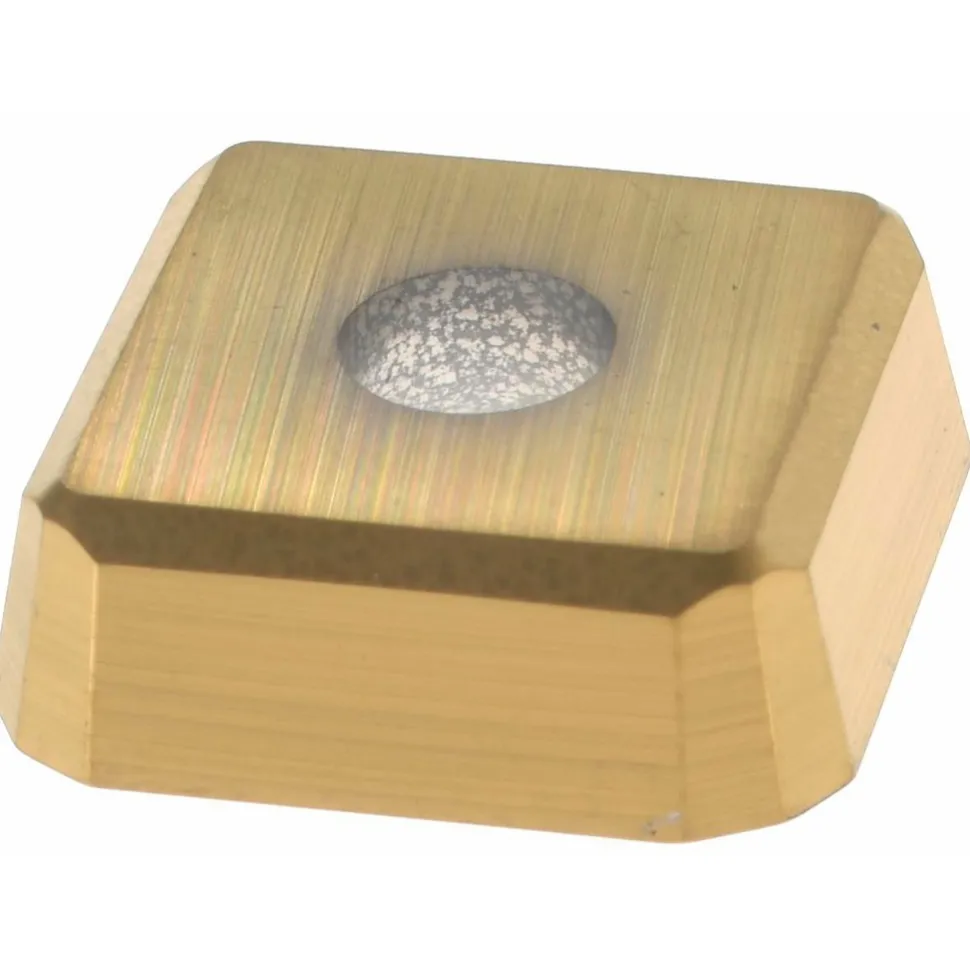

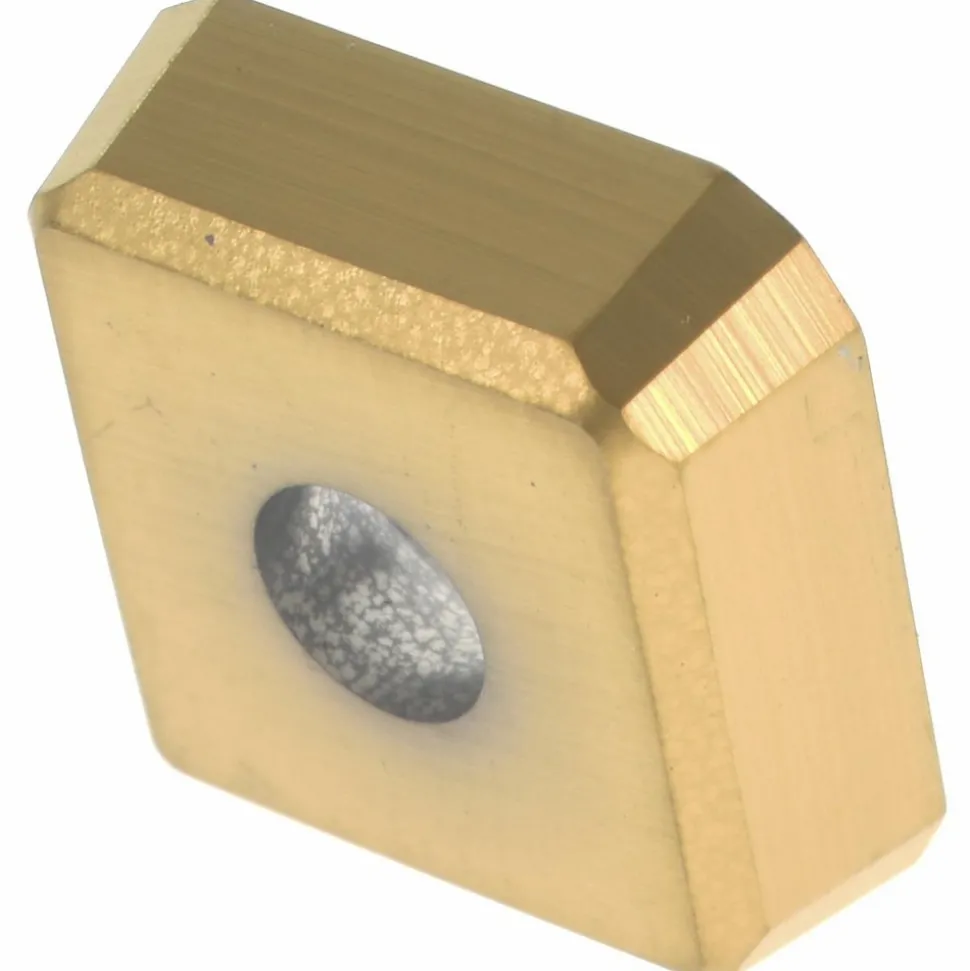

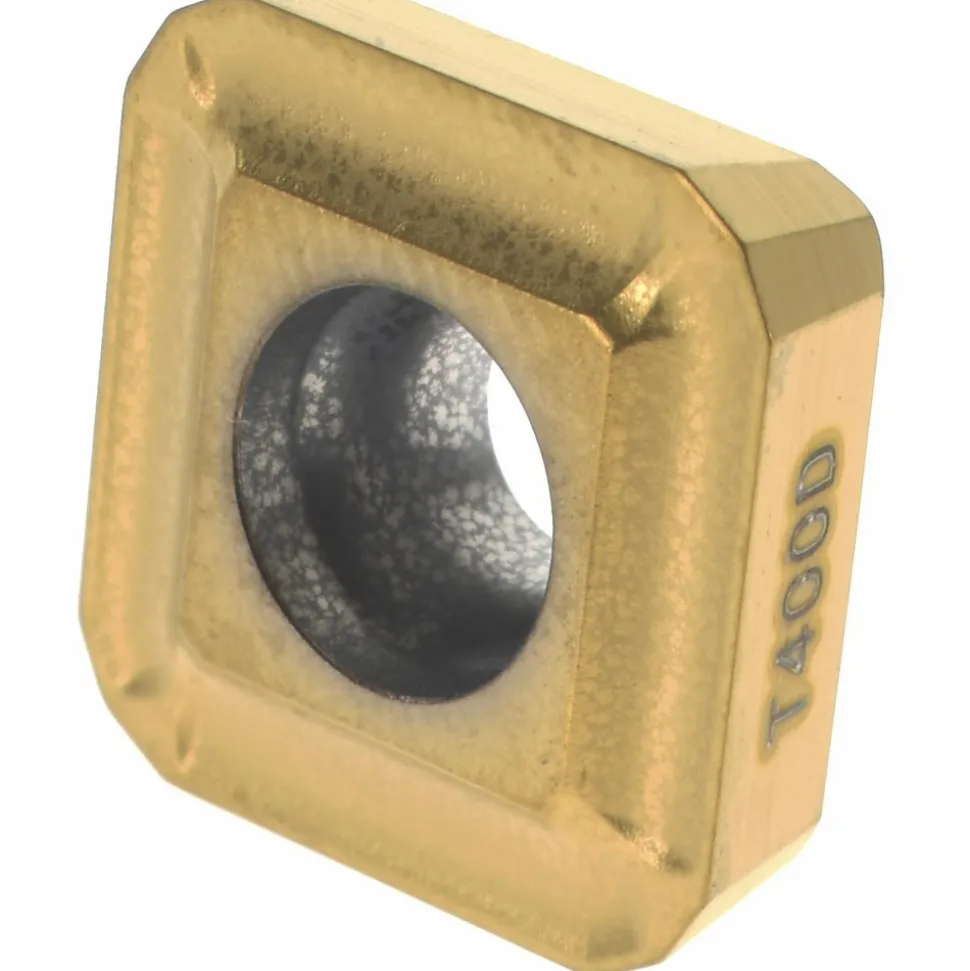

Indexable Drill Insert: SPGX12T3-C1 T400D, Carbide

Original price was: 36,00 $.Current price is: 26,99 $.

Specifications

Insert Style: SPGX	Insert Material: Carbide
Manufacturer Grade: T400D	Inscribed Circle (Decimal Inch): 0.5000
Inscribed Circle (mm): 12.70	Chipbreaker: C1
Series: Perfomax	Material Grade: C1
Coating Process: PVD	Shape: Square
Relief Angle: 11.000	Primary Workpiece Material: Universal
Primary Workpiece Material Code: P; S; H; K; M; N	Insert Size: 12T3
Width (mm – 2 Decimals): 12.70	Length (Mm): 12.70
Width (Decimal Inch – 4 Decimals): 0.5000	Length (Decimal Inch – 4 Decimals): 0.5000
Included Angle Degree: 90	Thickness (Decimal Inch – 4 Decimals): 0.1560
Coating/Finish: TiN; TiAlN	Insert Size Code: 12
Hole Diameter (Decimal Inch): 0.1530 in	UNSPSC Code: 23242105
Country of Origin: India
Insert Style: SPGX
Insert Material: Carbide
Manufacturer Grade: T400D
Inscribed Circle (Decimal Inch): 0.5000
Inscribed Circle (mm): 12.70
Chipbreaker: C1
Series: Perfomax
Material Grade: C1
Coating Process: PVD
Shape: Square
Relief Angle: 11.000
Primary Workpiece Material: Universal
Primary Workpiece Material Code: P; S; H; K; M; N
Insert Size: 12T3
Width (mm – 2 Decimals): 12.70
Length (Mm): 12.70
Width (Decimal Inch – 4 Decimals): 0.5000
Length (Decimal Inch – 4 Decimals): 0.5000
Included Angle Degree: 90
Thickness (Decimal Inch – 4 Decimals): 0.1560
Coating/Finish: TiN; TiAlN
Insert Size Code: 12
Hole Diameter (Decimal Inch): 0.1530 in
UNSPSC Code: 23242105
Country of Origin: India
