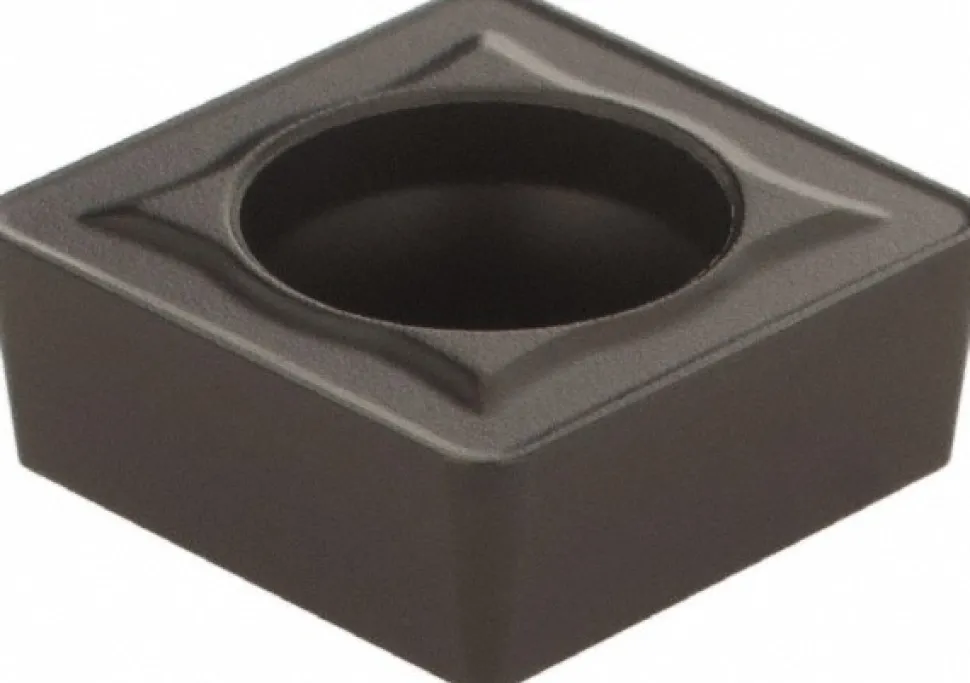

Indexable Drill Insert: SCGX09T308-P2 DP2000, Carbide
Original price was: 30,00 $.22,99 $Current price is: 22,99 $.
Specifications
| Insert Style: SCGX | Insert Material: Carbide |
| Manufacturer Grade: DP2000 | Inscribed Circle (Decimal Inch): 0.3752 |
| Inscribed Circle (mm): 9.53 | Corner Radius (Decimal Inch): 0.0315 |
| Corner Radius (mm): 0.80 | Chipbreaker: P2 |
| Series: Perfomax | Material Grade: C6 |
| Coating Process: Duratomic | Shape: Square |
| Relief Angle: 7.000 | Primary Workpiece Material: Cast Iron; Steel |
| Primary Workpiece Material Code: P; K | Insert Size: 09T308 |
| Width (mm – 2 Decimals): 9.53 | Length (Mm): 9.53 |
| Width (Decimal Inch – 4 Decimals): 0.3750 | Length (Decimal Inch – 4 Decimals): 0.3750 |
| Included Angle Degree: 90 | Thickness (Decimal Inch – 4 Decimals): 0.1563 |
| Coating/Finish: TiCN; Al2O3 | Insert Size Code: 09 |
| UNSPSC Code: 23242105 | Country of Origin: Sweden |
| Insert Style: SCGX | |
| Insert Material: Carbide | |
| Manufacturer Grade: DP2000 | |
| Inscribed Circle (Decimal Inch): 0.3752 | |
| Inscribed Circle (mm): 9.53 | |
| Corner Radius (Decimal Inch): 0.0315 | |
| Corner Radius (mm): 0.80 | |
| Chipbreaker: P2 | |
| Series: Perfomax | |
| Material Grade: C6 | |
| Coating Process: Duratomic | |
| Shape: Square | |
| Relief Angle: 7.000 | |
| Primary Workpiece Material: Cast Iron; Steel | |
| Primary Workpiece Material Code: P; K | |
| Insert Size: 09T308 | |
| Width (mm – 2 Decimals): 9.53 | |
| Length (Mm): 9.53 | |
| Width (Decimal Inch – 4 Decimals): 0.3750 | |
| Length (Decimal Inch – 4 Decimals): 0.3750 | |
| Included Angle Degree: 90 | |
| Thickness (Decimal Inch – 4 Decimals): 0.1563 | |
| Coating/Finish: TiCN; Al2O3 | |
| Insert Size Code: 09 | |
| UNSPSC Code: 23242105 | |
| Country of Origin: Sweden |
| MSC# | 93395937 |
| Mfr# | 02590857 |
| Big Book# | 176 |
