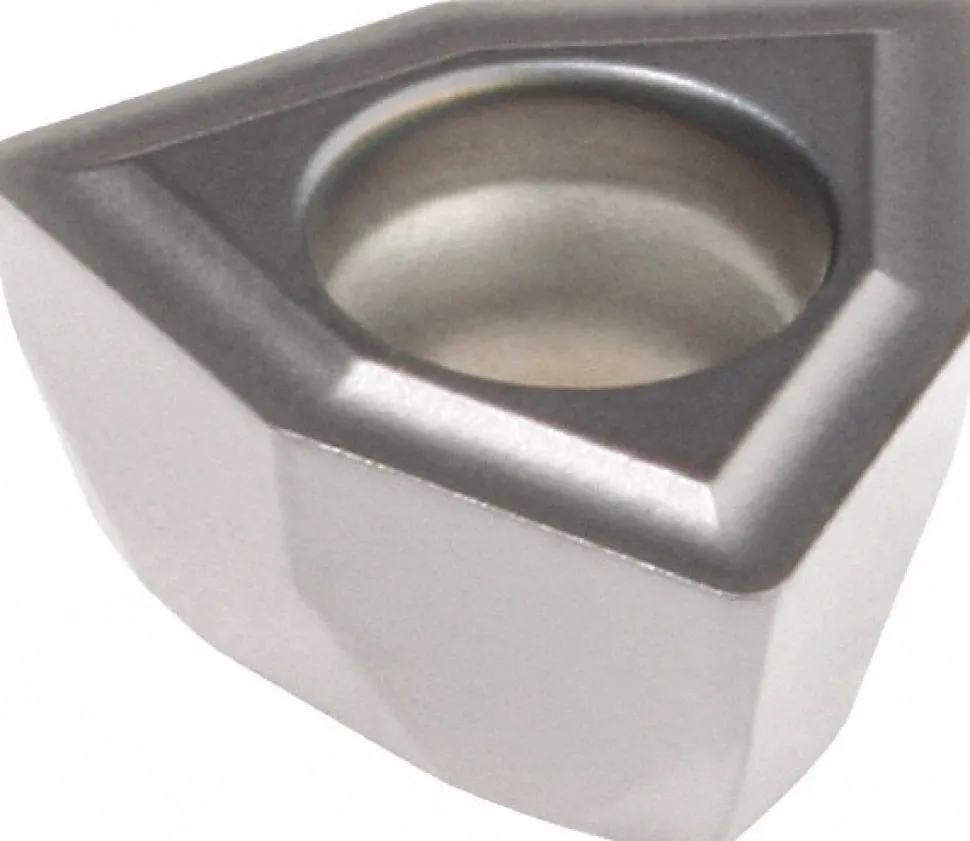

Indexable Drill Insert: DFT06T308GD KCU40, Carbide

Original price was: 34,00 $.Current price is: 25,99 $.

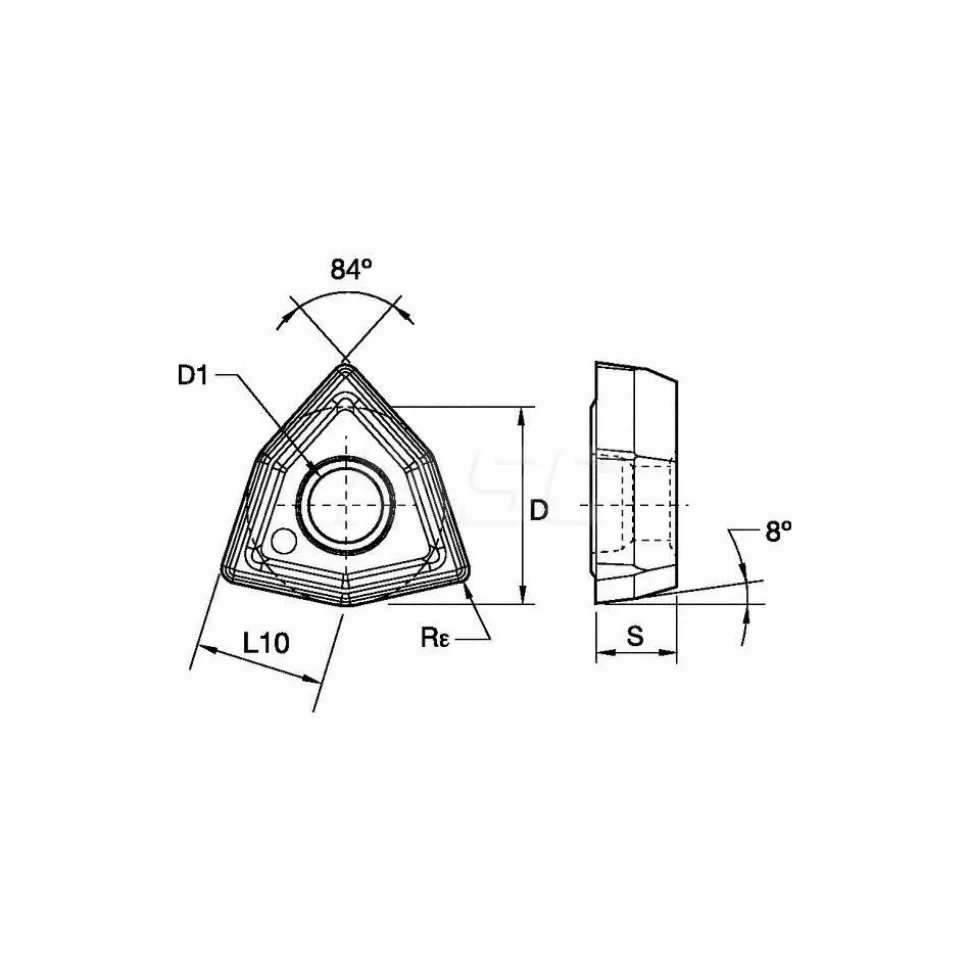

Specifications

Insert Style: DFT	Insert Material: Carbide
Manufacturer Grade: KCU40	Inscribed Circle (Decimal Inch): 0.3937
Inscribed Circle (mm): 10.00	Corner Radius (Inch): 1/32
Corner Radius (Decimal Inch): 0.0313	Corner Radius (mm): 0.79
Chipbreaker: GD	Coating Process: PVD
Shape: Trigon	Hole Diameter (mm): 4.40
Relief Angle: 8.000	Insert Size: 06T308
Length (Mm): 6.62	Length (Decimal Inch – 4 Decimals): 0.2606
Included Angle Degree: 84	Thickness (Decimal Inch – 4 Decimals): 0.1476
Coating/Finish: TiN; TiAlN	Hole Diameter (Decimal Inch): 0.1732 in
Insert Hand: Neutral	UNSPSC Code: 23242105
Country of Origin: Germany
Insert Style: DFT
Insert Material: Carbide
Manufacturer Grade: KCU40
Inscribed Circle (Decimal Inch): 0.3937
Inscribed Circle (mm): 10.00
Corner Radius (Inch): 1/32
Corner Radius (Decimal Inch): 0.0313
Corner Radius (mm): 0.79
Chipbreaker: GD
Coating Process: PVD
Shape: Trigon
Hole Diameter (mm): 4.40
Relief Angle: 8.000
Insert Size: 06T308
Length (Mm): 6.62
Length (Decimal Inch – 4 Decimals): 0.2606
Included Angle Degree: 84
Thickness (Decimal Inch – 4 Decimals): 0.1476
Coating/Finish: TiN; TiAlN
Hole Diameter (Decimal Inch): 0.1732 in
Insert Hand: Neutral
UNSPSC Code: 23242105
Country of Origin: Germany
