Sale!

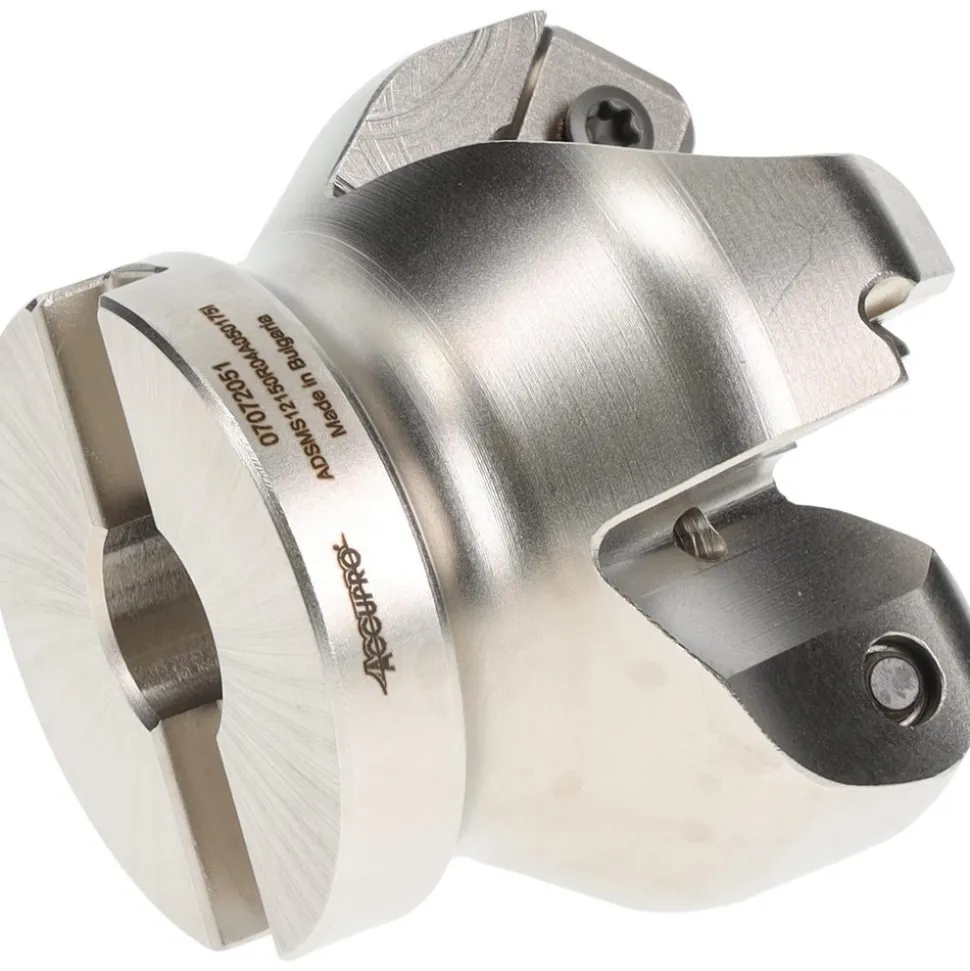

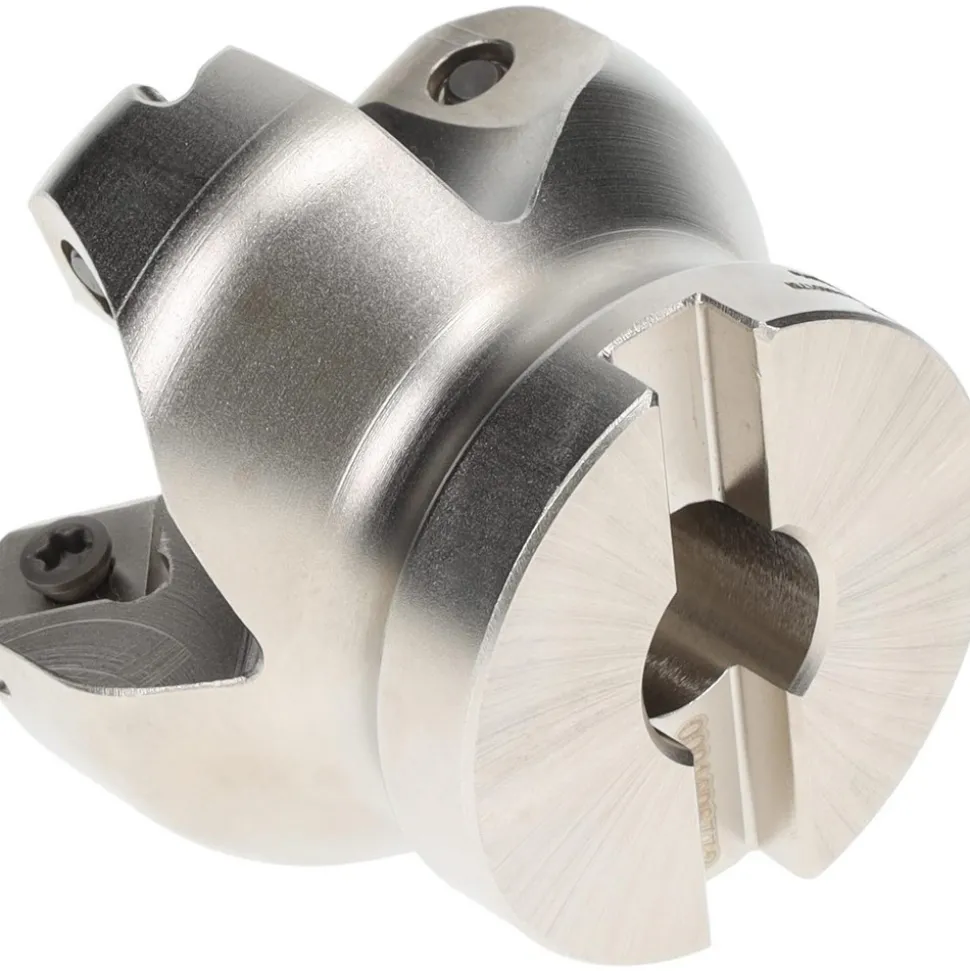

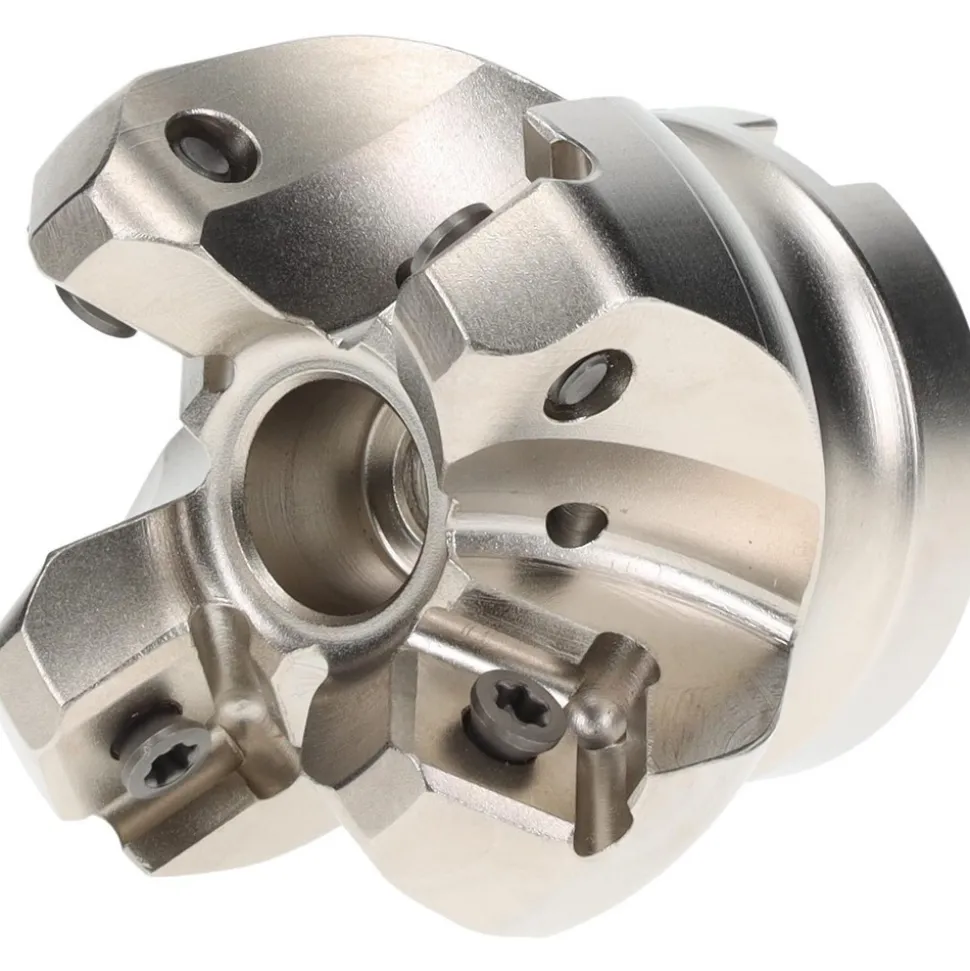

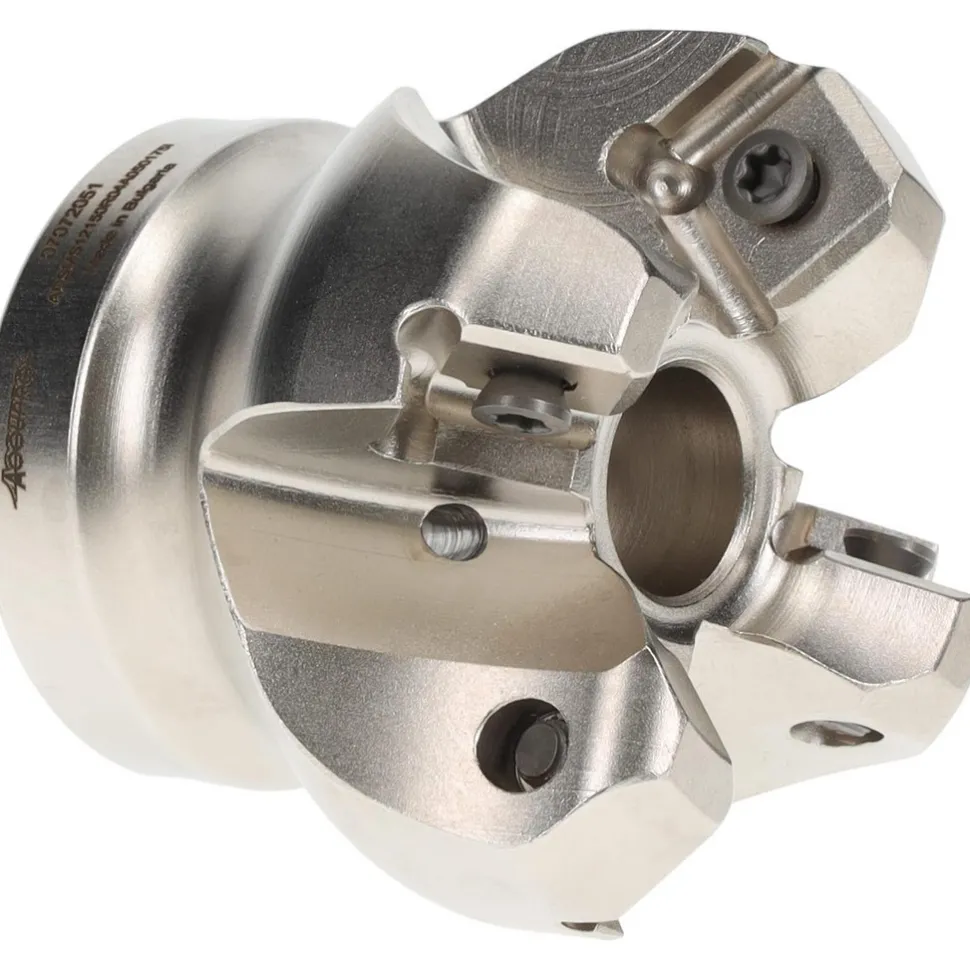

Indexable Chamfer & Angle Face Mills: Minimum Cutting Diameter (Decimal Inch): 2.0000; Minimum Cutting Diameter (Inch): 2
Original price was: 494,00 $.120,99 $Current price is: 120,99 $.
Specifications
| Minimum Cutting Diameter (Decimal Inch): 2.0000 | Minimum Cutting Diameter (Inch): 2 |
| Maximum Cutting Diameter (Decimal Inch): 2.5906 | Maximum Depth of Cut (Decimal Inch): 0.2500 |
| Arbor Hole Diameter (Decimal Inch): 0.7500 | Arbor Hole Diameter (Inch): 3/4 |
| Lead Angle: 45.000 | Compatible Insert Size Code: 15 |
| Cutter Style: ADSM | Cutting Direction: Right Hand |
| Insert Holding Method: Screw | Rake: Positive |
| Rake Angle: 20 | Series: CI |
| Hub Diameter (Decimal Inch): 1.7717 | Keyway Width (Decimal Inch): 0.3210 |
| Overall Height (Inch): 1-3/4 | Overall Height (Decimal Inch): 1.7500 |
| Number Of Cutter Inserts: 4 | Coolant Through: Yes |
| UNSPSC Code: 23291600 | |
| Minimum Cutting Diameter (Decimal Inch): 2.0000 | |
| Minimum Cutting Diameter (Inch): 2 | |
| Maximum Cutting Diameter (Decimal Inch): 2.5906 | |
| Maximum Depth of Cut (Decimal Inch): 0.2500 | |
| Arbor Hole Diameter (Decimal Inch): 0.7500 | |
| Arbor Hole Diameter (Inch): 3/4 | |
| Lead Angle: 45.000 | |
| Compatible Insert Size Code: 15 | |
| Cutter Style: ADSM | |
| Cutting Direction: Right Hand | |
| Insert Holding Method: Screw | |
| Rake: Positive | |
| Rake Angle: 20 | |
| Series: CI | |
| Hub Diameter (Decimal Inch): 1.7717 | |
| Keyway Width (Decimal Inch): 0.3210 | |
| Overall Height (Inch): 1-3/4 | |
| Overall Height (Decimal Inch): 1.7500 | |
| Number Of Cutter Inserts: 4 | |
| Coolant Through: Yes | |
| UNSPSC Code: 23291600 |
| MSC# | 07074099 |
| Mfr# | 07074099 |
