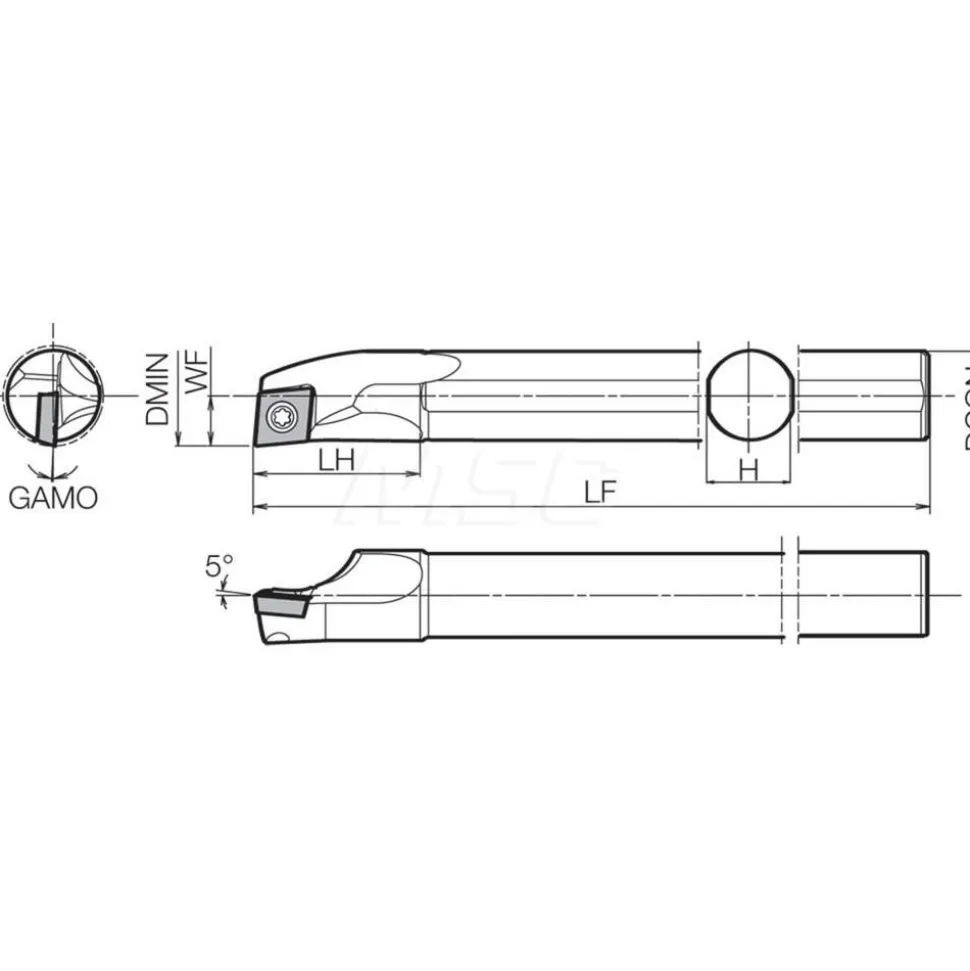

Indexable Boring Bar: S05KSCLCR2, 0.3940″ Min Bore, Right Hand, 5.000 deg Lead Angle, Steel
104,99 $
Specifications
| Minimum Bore Diameter (Decimal Inch): 0.3940 | Maximum Bore Depth (Decimal Inch): 0.6250 |
| Toolholder Style: S…SCLP(C) | Tool Material: Steel |
| Insert Compatibility: CCGT 215..; CCGW 215..; CCMT 215..; CCMW 215.. | Hand of Holder: Right Hand |
| Overall Length (Decimal Inch): 5.0000 | Compatible Insert Size Code: 215 |
| Insert Holding Method: Screw | Compatible Insert Shape: Diamond |
| Rake: Negative | Rake Angle: -12.000 |
| Lead Angle: 5.000 | Series: GPBB |
| Insert Inscribed Circle (Inch): 1/4 | Insert Inscribed Circle (Decimal Inch): 0.2500 |
| Compatible Insert Thickness (Decimal Inch): 0.0938 | Multi-use Tool: Yes |
| Cutting Tool Application: Facing; Boring | Center to Cutting Edge (Decimal Inch): 0.1970 |
| Number of Inserts Used on Toolholder: 1 | UNSPSC Code: 23241601 |
| Insert Thickness (Decimal Inch): 0.0938 | Insert Thickness (Inch): 3/32 |
| Coolant Through: No | Country of Origin: UNITED STATES |
| Minimum Bore Diameter (Decimal Inch): 0.3940 | |
| Maximum Bore Depth (Decimal Inch): 0.6250 | |
| Toolholder Style: S…SCLP(C) | |
| Tool Material: Steel | |
| Insert Compatibility: CCGT 215..; CCGW 215..; CCMT 215..; CCMW 215.. | |
| Hand of Holder: Right Hand | |
| Overall Length (Decimal Inch): 5.0000 | |
| Compatible Insert Size Code: 215 | |
| Insert Holding Method: Screw | |
| Compatible Insert Shape: Diamond | |
| Rake: Negative | |
| Rake Angle: -12.000 | |
| Lead Angle: 5.000 | |
| Series: GPBB | |
| Insert Inscribed Circle (Inch): 1/4 | |
| Insert Inscribed Circle (Decimal Inch): 0.2500 | |
| Compatible Insert Thickness (Decimal Inch): 0.0938 | |
| Multi-use Tool: Yes | |
| Cutting Tool Application: Facing; Boring | |
| Center to Cutting Edge (Decimal Inch): 0.1970 | |
| Number of Inserts Used on Toolholder: 1 | |
| UNSPSC Code: 23241601 | |
| Insert Thickness (Decimal Inch): 0.0938 | |
| Insert Thickness (Inch): 3/32 | |
| Coolant Through: No | |
| Country of Origin: UNITED STATES |
| MSC# | 50479278 |
| Mfr# | THC89270 |
