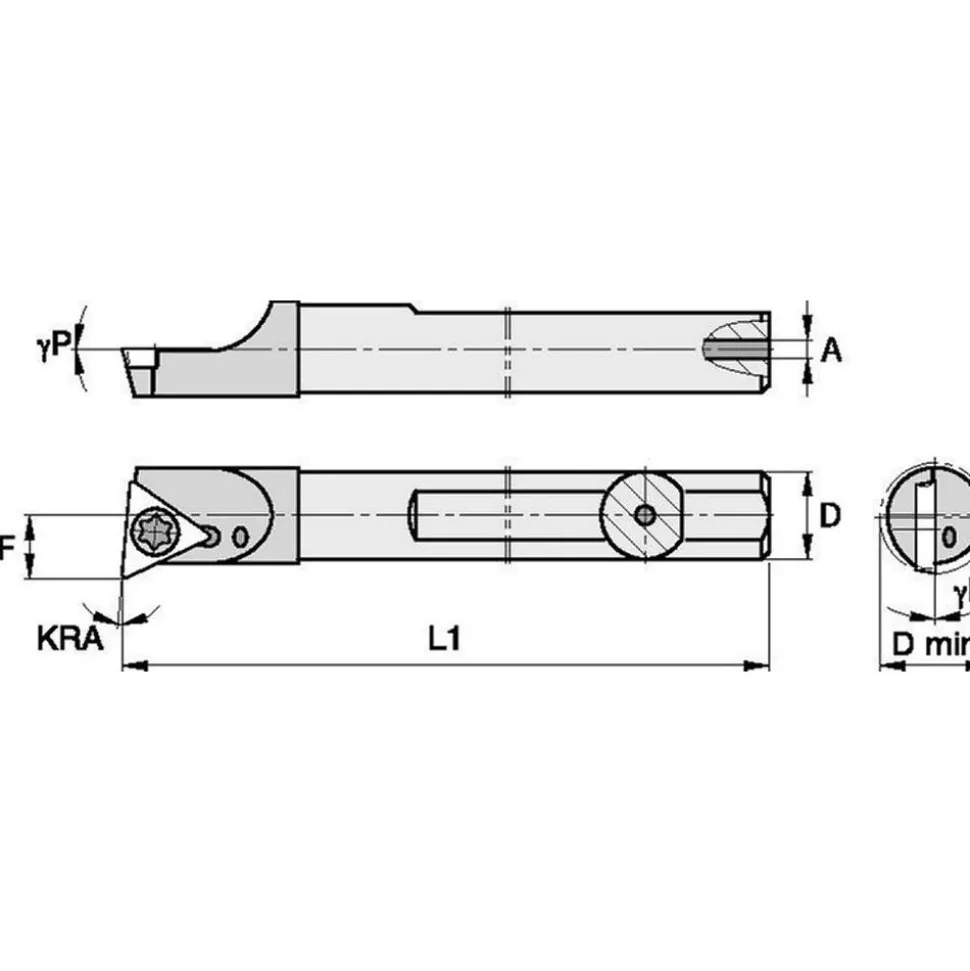

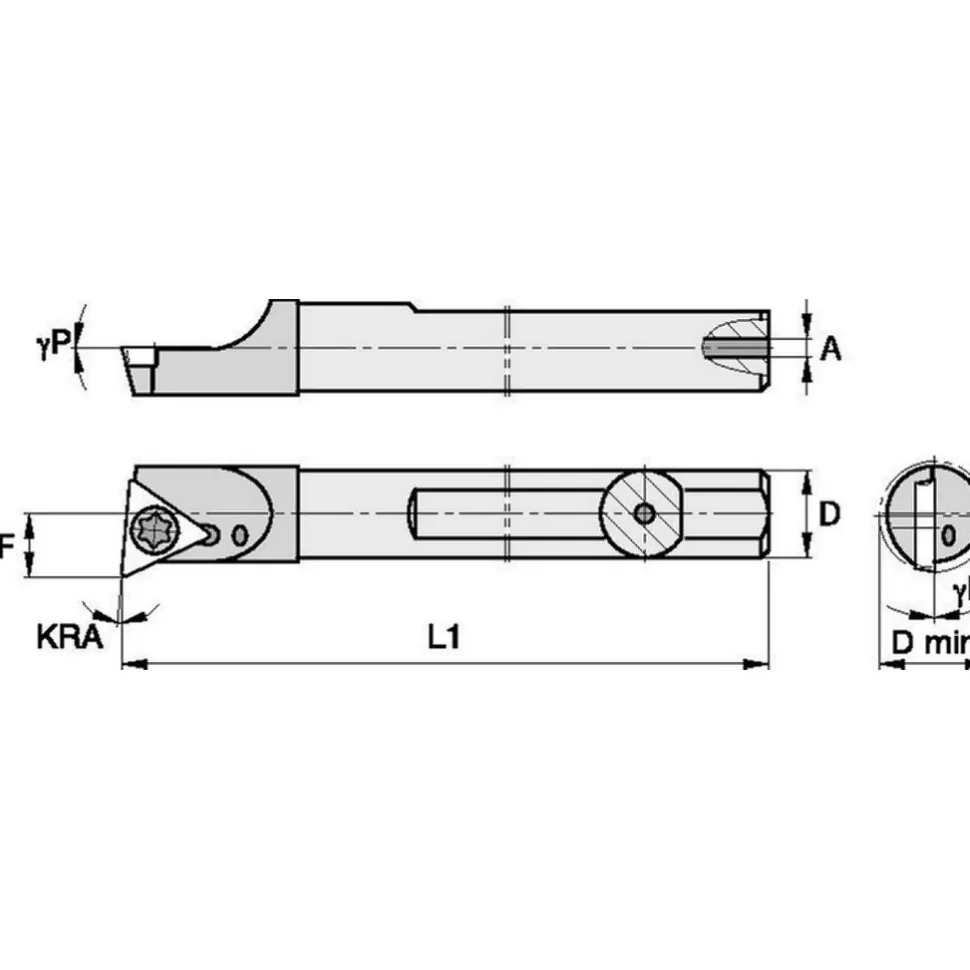

Indexable Boring Bar: QCBI37565R, 0.4380″ Min Bore, Right Hand, 95.000 deg Lead Angle, Solid Carbide
Original price was: 416,00 $.138,89 $Current price is: 138,89 $.
Specifications
| Minimum Bore Diameter (Decimal Inch): 0.4380 | Maximum Bore Depth (Decimal Inch): 3.7500 |
| Toolholder Style: QCBI | Tool Material: Solid Carbide |
| Insert Compatibility: TP.. | Hand of Holder: Right Hand |
| Overall Length (Decimal Inch): 6.0000 | Compatible Insert Size Code: 21505 |
| Insert Holding Method: Screw | Compatible Insert Shape: Triangle |
| Insert Included: No | Rake: Neutral (Radial); Positive (Axial) |
| Rake Angle: 5.000 | Lead Angle: 95.000 |
| Series: QCBI | Insert Inscribed Circle (Decimal Inch): 0.2500 |
| Compatible Insert Thickness (Decimal Inch): 0.0940 | Multi-use Tool: Yes |
| Cutting Tool Application: Turning; Boring | Back of Bar to Cutting Edge (Decimal Inch): 6.0000 |
| Center to Cutting Edge (Decimal Inch): 0.2280 | Primary Workpiece Material: Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code: P; K; M; N | Number of Inserts Used on Toolholder: 1 |
| UNSPSC Code: 23241601 | Insert Thickness (Decimal Inch): 0.0940 |
| Coolant Hole Diameter (Decimal Inch): 0.1250 | Coolant Hole Diameter (mm): 3.18 |
| Manufacturers Catalog Number: QCBI-375-6-5R | Insert Size: 21505 |
| Body Diameter: 0.3750 | Coolant Through: Yes |
| Country of Origin: UNITED STATES | |
| Minimum Bore Diameter (Decimal Inch): 0.4380 | |
| Maximum Bore Depth (Decimal Inch): 3.7500 | |
| Toolholder Style: QCBI | |
| Tool Material: Solid Carbide | |
| Insert Compatibility: TP.. | |
| Hand of Holder: Right Hand | |
| Overall Length (Decimal Inch): 6.0000 | |
| Compatible Insert Size Code: 21505 | |
| Insert Holding Method: Screw | |
| Compatible Insert Shape: Triangle | |
| Insert Included: No | |
| Rake: Neutral (Radial); Positive (Axial) | |
| Rake Angle: 5.000 | |
| Lead Angle: 95.000 | |
| Series: QCBI | |
| Insert Inscribed Circle (Decimal Inch): 0.2500 | |
| Compatible Insert Thickness (Decimal Inch): 0.0940 | |
| Multi-use Tool: Yes | |
| Cutting Tool Application: Turning; Boring | |
| Back of Bar to Cutting Edge (Decimal Inch): 6.0000 | |
| Center to Cutting Edge (Decimal Inch): 0.2280 | |
| Primary Workpiece Material: Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel | |
| Primary Workpiece Material Code: P; K; M; N | |
| Number of Inserts Used on Toolholder: 1 | |
| UNSPSC Code: 23241601 | |
| Insert Thickness (Decimal Inch): 0.0940 | |
| Coolant Hole Diameter (Decimal Inch): 0.1250 | |
| Coolant Hole Diameter (mm): 3.18 | |
| Manufacturers Catalog Number: QCBI-375-6-5R | |
| Insert Size: 21505 | |
| Body Diameter: 0.3750 | |
| Coolant Through: Yes | |
| Country of Origin: UNITED STATES |
| MSC# | 70731583 |
| Mfr# | 2825290 |
