Sale!

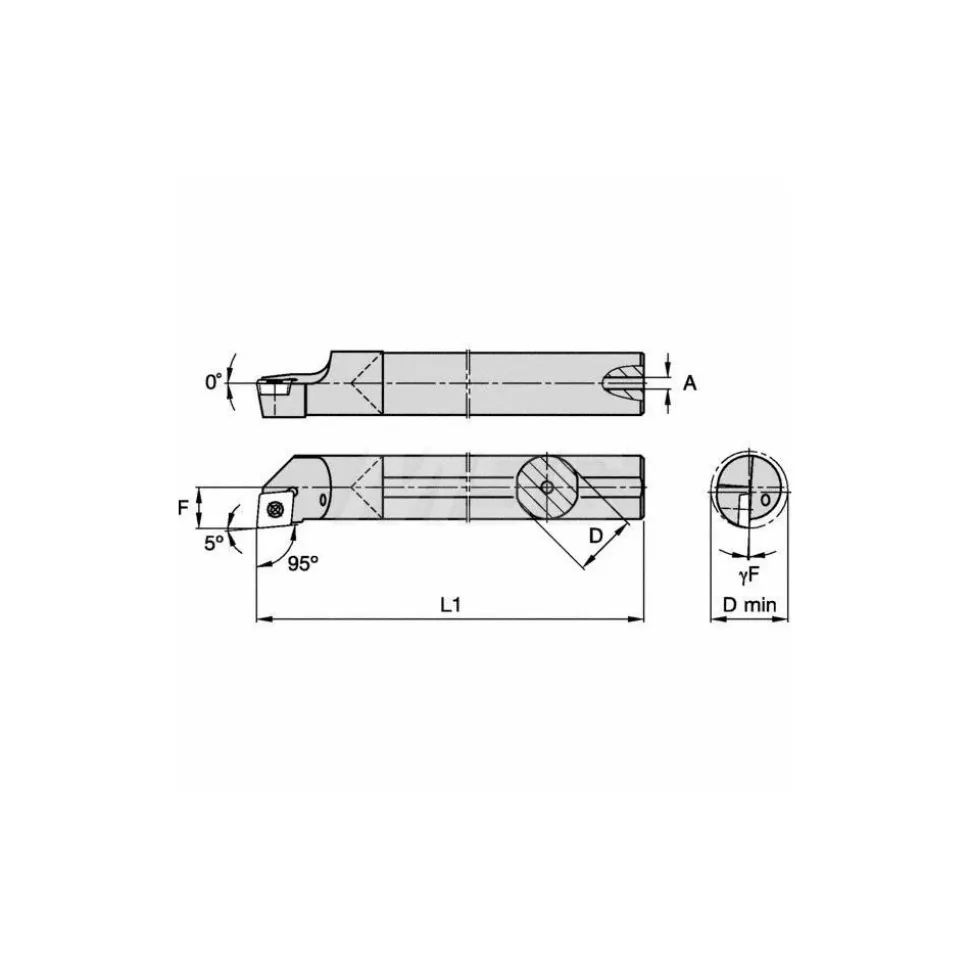

Indexable Boring Bar: E12SCLPR3 KWH, 23.62 mm Min Bore, Right Hand, 19.05 mm Shank Dia, -5.000 deg Lead Angle, Solid Carbide
Original price was: 1 181,00 $.140,89 $Current price is: 140,89 $.
Specifications
| Minimum Bore Diameter (mm): 23.62 | Minimum Bore Diameter (Decimal Inch): 0.9300 |
| Toolholder Style: E-SCLP | Tool Material: Solid Carbide |
| Insert Compatibility: CP.. | Shank Diameter (mm): 19.05 |
| Shank Diameter (Inch): 3/4 | Hand of Holder: Right Hand |
| Overall Length (Decimal Inch): 10.0000 | Overall Length (mm): 254.00 |
| Insert Holding Method: Screw | Rake: Neutral |
| Rake Angle: 0.000 | Lead Angle: -5.000 |
| Insert Inscribed Circle (Inch): 3/8 | Multi-use Tool: No |
| Center to Cutting Edge (Decimal Inch): 0.5000 | UNSPSC Code: 23241601 |
| Insert Thickness (Inch): 5/32 | Coolant Hole Diameter (Decimal Inch): 0.2810 |
| Coolant Through: Yes | Country of Origin: UNITED STATES |
| Minimum Bore Diameter (mm): 23.62 | |
| Minimum Bore Diameter (Decimal Inch): 0.9300 | |
| Toolholder Style: E-SCLP | |
| Tool Material: Solid Carbide | |
| Insert Compatibility: CP.. | |
| Shank Diameter (mm): 19.05 | |
| Shank Diameter (Inch): 3/4 | |
| Hand of Holder: Right Hand | |
| Overall Length (Decimal Inch): 10.0000 | |
| Overall Length (mm): 254.00 | |
| Insert Holding Method: Screw | |
| Rake: Neutral | |
| Rake Angle: 0.000 | |
| Lead Angle: -5.000 | |
| Insert Inscribed Circle (Inch): 3/8 | |
| Multi-use Tool: No | |
| Center to Cutting Edge (Decimal Inch): 0.5000 | |
| UNSPSC Code: 23241601 | |
| Insert Thickness (Inch): 5/32 | |
| Coolant Hole Diameter (Decimal Inch): 0.2810 | |
| Coolant Through: Yes | |
| Country of Origin: UNITED STATES |
| MSC# | 86461159 |
| Mfr# | 1152734 |
| Big Book# | 852 |
