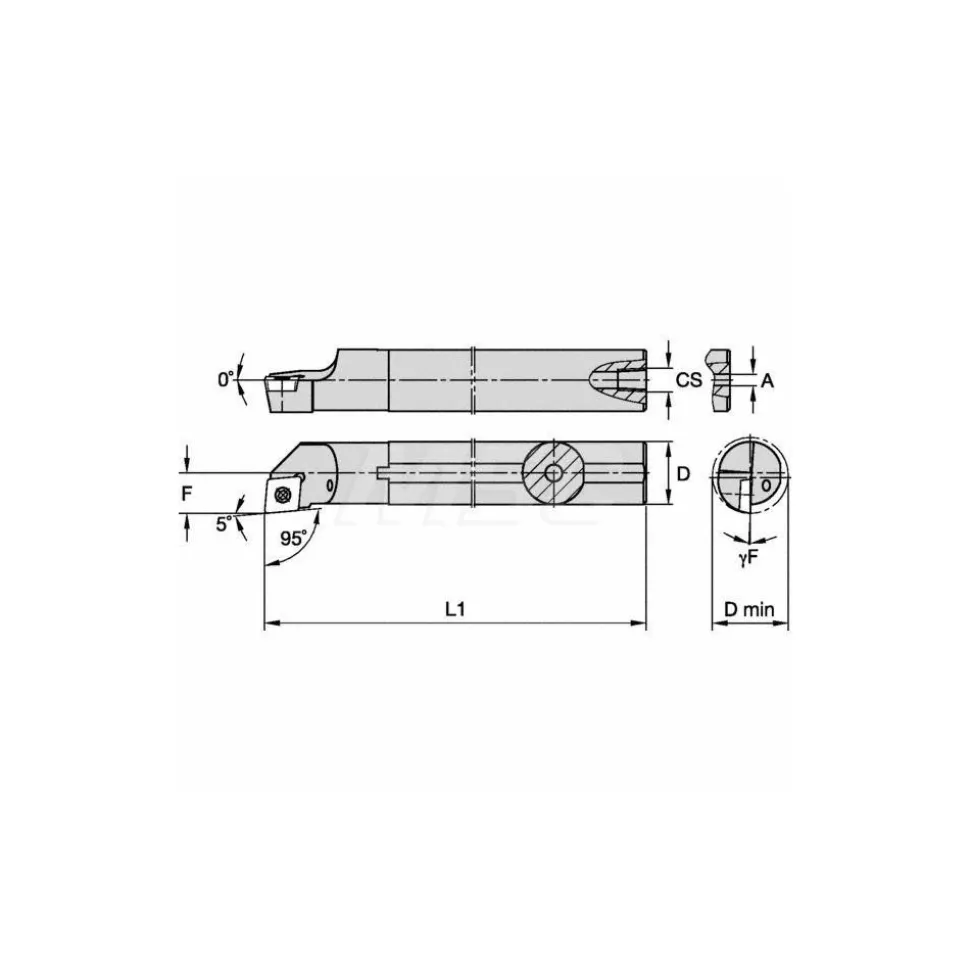

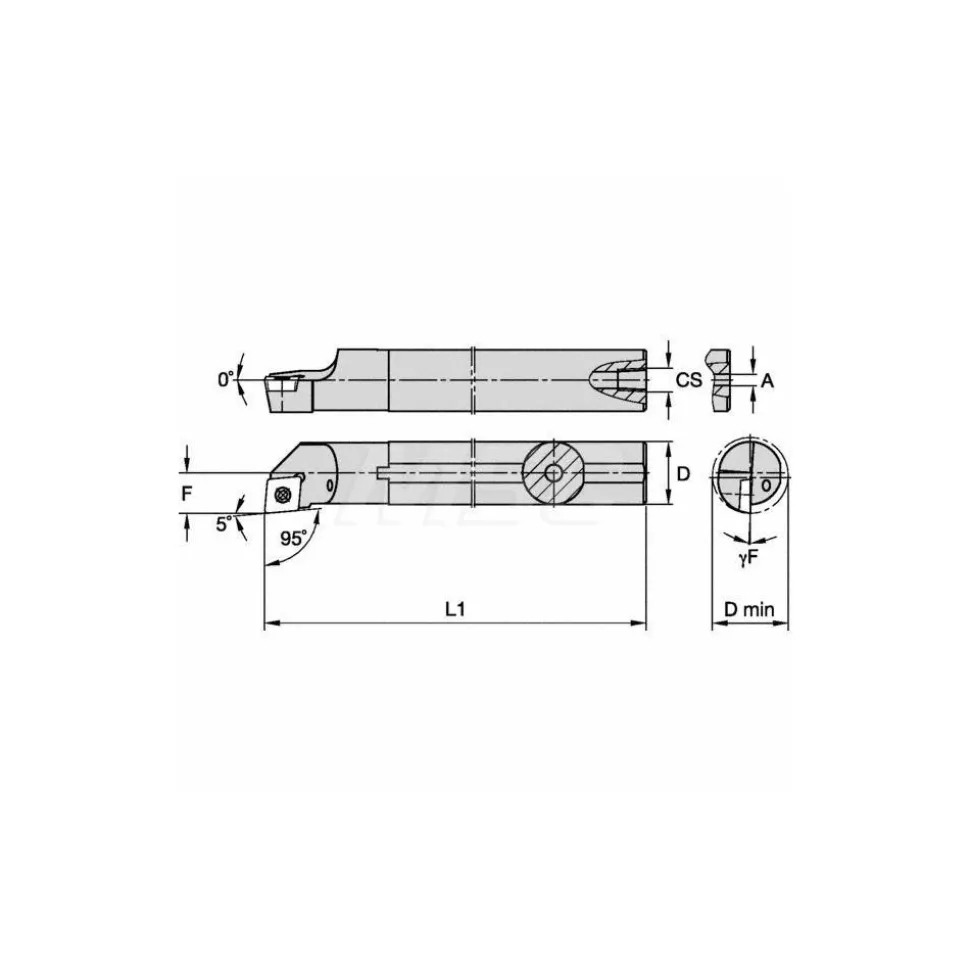

Indexable Boring Bar: A08SCLPL2, 15.24 mm Min Bore, Left Hand, 12.70 mm Shank Dia, -5.000 deg Lead Angle, Steel
122,99 $
Specifications
| Minimum Bore Diameter (mm): 15.24 | Minimum Bore Diameter (Decimal Inch): 0.6000 |
| Toolholder Style: A-SCLP | Tool Material: Steel |
| Insert Compatibility: CP.. | Shank Diameter (mm): 12.70 |
| Shank Diameter (Inch): 1/2 | Hand of Holder: Left Hand |
| Overall Length (Decimal Inch): 8.0000 | Overall Length (mm): 203.20 |
| Insert Holding Method: Screw | Rake: Neutral |
| Rake Angle: 0.000 | Lead Angle: -5.000 |
| Insert Inscribed Circle (Inch): 1/4 | Multi-use Tool: No |
| Back of Bar to Cutting Edge (mm): 7.93 | Center to Cutting Edge (Decimal Inch): 0.3120 |
| Coolant Hole Thread Size (Inch): 1/16-27 NPT | UNSPSC Code: 23241601 |
| Insert Thickness (Inch): 3/32 | Coolant Through: Yes |
| Country of Origin: UNITED STATES | |
| Minimum Bore Diameter (mm): 15.24 | |
| Minimum Bore Diameter (Decimal Inch): 0.6000 | |
| Toolholder Style: A-SCLP | |
| Tool Material: Steel | |
| Insert Compatibility: CP.. | |
| Shank Diameter (mm): 12.70 | |
| Shank Diameter (Inch): 1/2 | |
| Hand of Holder: Left Hand | |
| Overall Length (Decimal Inch): 8.0000 | |
| Overall Length (mm): 203.20 | |
| Insert Holding Method: Screw | |
| Rake: Neutral | |
| Rake Angle: 0.000 | |
| Lead Angle: -5.000 | |
| Insert Inscribed Circle (Inch): 1/4 | |
| Multi-use Tool: No | |
| Back of Bar to Cutting Edge (mm): 7.93 | |
| Center to Cutting Edge (Decimal Inch): 0.3120 | |
| Coolant Hole Thread Size (Inch): 1/16-27 NPT | |
| UNSPSC Code: 23241601 | |
| Insert Thickness (Inch): 3/32 | |
| Coolant Through: Yes | |
| Country of Origin: UNITED STATES |
| MSC# | 64925662 |
| Mfr# | 1094672 |
| Big Book# | 852 |
