Sale!

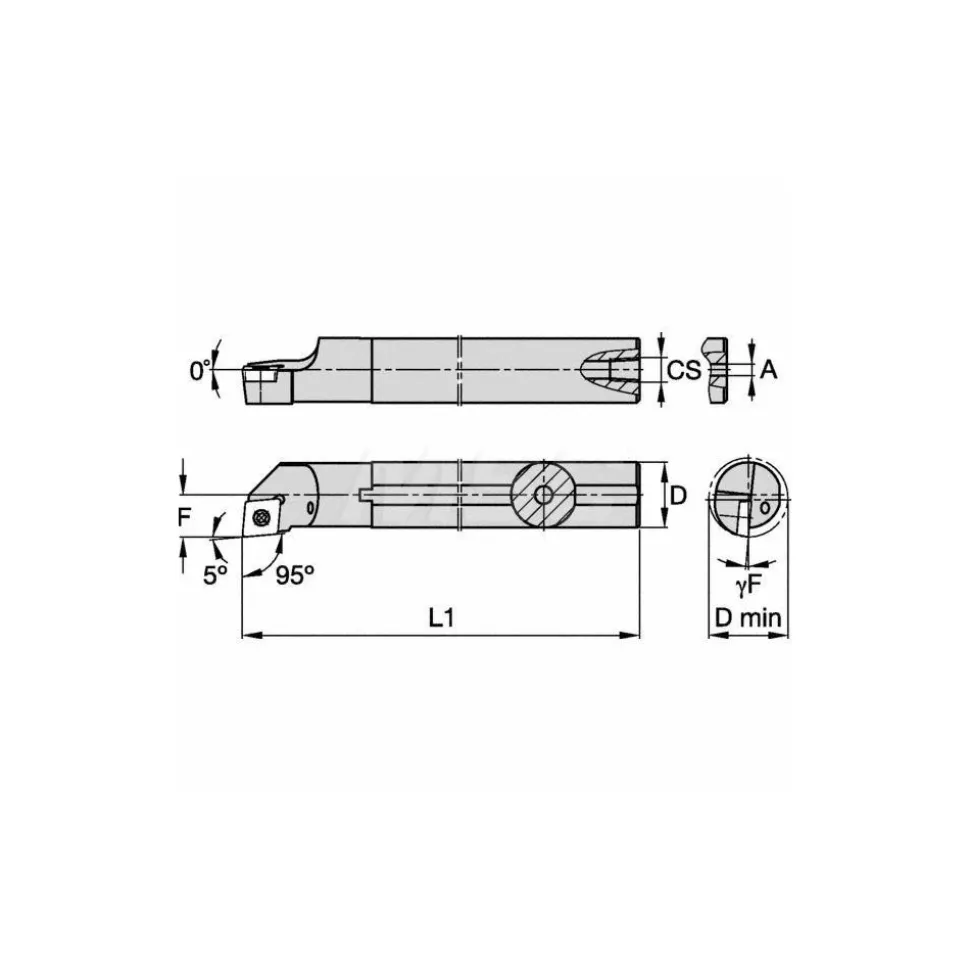

Indexable Boring Bar: A06MSCLCL2, 12.19 mm Min Bore, Left Hand, 9.53 mm Shank Dia, -5.000 deg Lead Angle, Steel
Original price was: 185,00 $.125,89 $Current price is: 125,89 $.
Specifications
| Minimum Bore Diameter (mm): 12.19 | Minimum Bore Diameter (Decimal Inch): 0.4800 |
| Toolholder Style: A-SCLC | Tool Material: Steel |
| Insert Compatibility: CC.. | Shank Diameter (mm): 9.53 |
| Shank Diameter (Inch): 3/8 | Hand of Holder: Left Hand |
| Overall Length (Decimal Inch): 6.0000 | Overall Length (mm): 152.40 |
| Overall Length (Inch): 6 | Insert Holding Method: Screw |
| Rake: Neutral | Rake Angle: 0.000 |
| Lead Angle: -5.000 | Insert Inscribed Circle (Inch): 1/4 |
| Multi-use Tool: No | Center to Cutting Edge (Decimal Inch): 0.2500 |
| UNSPSC Code: 23241601 | Insert Thickness (Inch): 3/32 |
| Coolant Hole Diameter (Decimal Inch): 0.1300 | Coolant Through: Yes |
| Country of Origin: UNITED STATES | |
| Minimum Bore Diameter (mm): 12.19 | |
| Minimum Bore Diameter (Decimal Inch): 0.4800 | |
| Toolholder Style: A-SCLC | |
| Tool Material: Steel | |
| Insert Compatibility: CC.. | |
| Shank Diameter (mm): 9.53 | |
| Shank Diameter (Inch): 3/8 | |
| Hand of Holder: Left Hand | |
| Overall Length (Decimal Inch): 6.0000 | |
| Overall Length (mm): 152.40 | |
| Overall Length (Inch): 6 | |
| Insert Holding Method: Screw | |
| Rake: Neutral | |
| Rake Angle: 0.000 | |
| Lead Angle: -5.000 | |
| Insert Inscribed Circle (Inch): 1/4 | |
| Multi-use Tool: No | |
| Center to Cutting Edge (Decimal Inch): 0.2500 | |
| UNSPSC Code: 23241601 | |
| Insert Thickness (Inch): 3/32 | |
| Coolant Hole Diameter (Decimal Inch): 0.1300 | |
| Coolant Through: Yes | |
| Country of Origin: UNITED STATES |
| MSC# | 62181599 |
| Mfr# | 1328583 |
| Big Book# | 852 |
