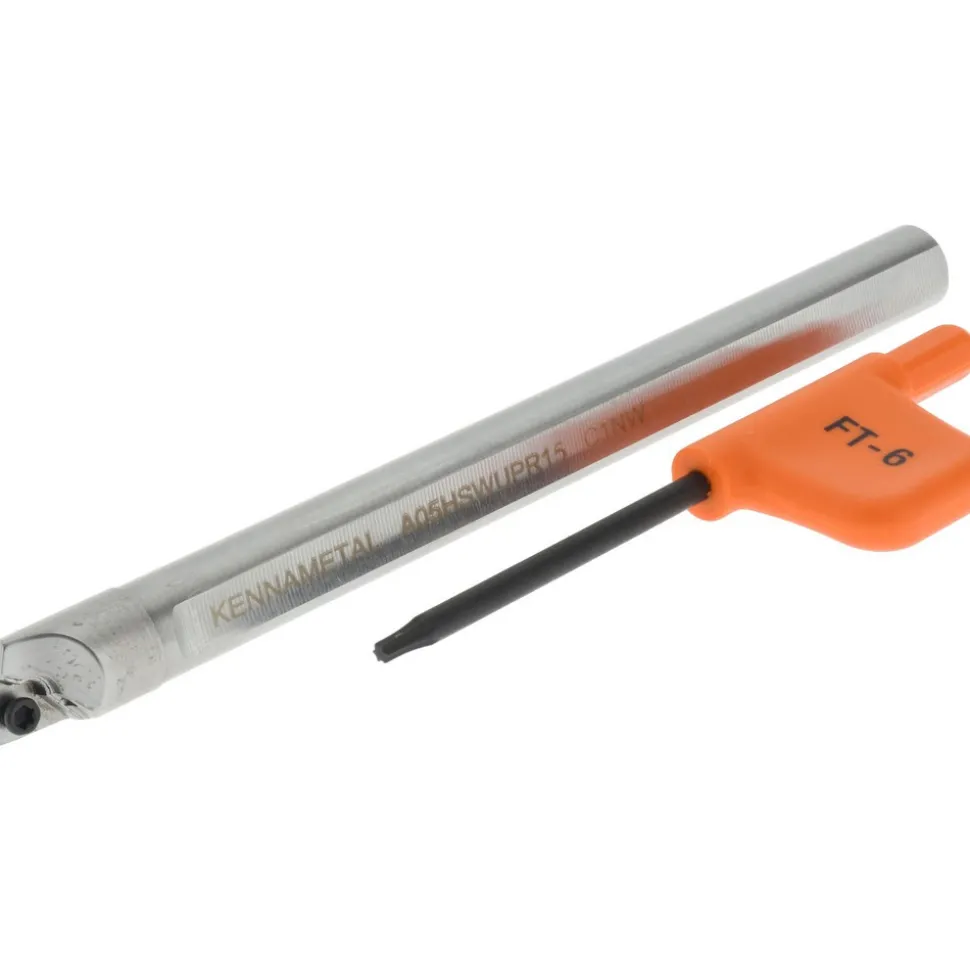

Indexable Boring Bar: A05HSWUPR15, 0.3470″ Min Bore, Right Hand, 3.000 deg Lead Angle, Steel
Original price was: 151,00 $.99,89 $Current price is: 99,89 $.
Specifications
| Minimum Bore Diameter (Decimal Inch): 0.3470 | Maximum Bore Depth (Decimal Inch): 1.2480 |
| Toolholder Style: GSBIW | Tool Material: Steel |
| Insert Compatibility: WP.. | Shank Diameter (Inch): 5/16 |
| Hand of Holder: Right Hand | Overall Length (Decimal Inch): 4.0000 |
| Overall Length (Inch): 4 | Insert Holding Method: Screw |
| Rake: Neutral | Rake Angle: 0.000 |
| Lead Angle: 3.000 | Series: G |
| Insert Inscribed Circle (Decimal Inch): 0.1870 | Multi-use Tool: No |
| Center to Cutting Edge (Decimal Inch): 0.1740 | UNSPSC Code: 23241601 |
| Insert Thickness (Decimal Inch): 0.0620 | Coolant Hole Diameter (Decimal Inch): 0.0400 |
| Coolant Through: Yes | Country of Origin: UNITED STATES |
| Minimum Bore Diameter (Decimal Inch): 0.3470 | |
| Maximum Bore Depth (Decimal Inch): 1.2480 | |
| Toolholder Style: GSBIW | |
| Tool Material: Steel | |
| Insert Compatibility: WP.. | |
| Shank Diameter (Inch): 5/16 | |
| Hand of Holder: Right Hand | |
| Overall Length (Decimal Inch): 4.0000 | |
| Overall Length (Inch): 4 | |
| Insert Holding Method: Screw | |
| Rake: Neutral | |
| Rake Angle: 0.000 | |
| Lead Angle: 3.000 | |
| Series: G | |
| Insert Inscribed Circle (Decimal Inch): 0.1870 | |
| Multi-use Tool: No | |
| Center to Cutting Edge (Decimal Inch): 0.1740 | |
| UNSPSC Code: 23241601 | |
| Insert Thickness (Decimal Inch): 0.0620 | |
| Coolant Hole Diameter (Decimal Inch): 0.0400 | |
| Coolant Through: Yes | |
| Country of Origin: UNITED STATES |
| MSC# | 08614786 |
| Mfr# | 1950376 |
| Big Book# | 858 |
