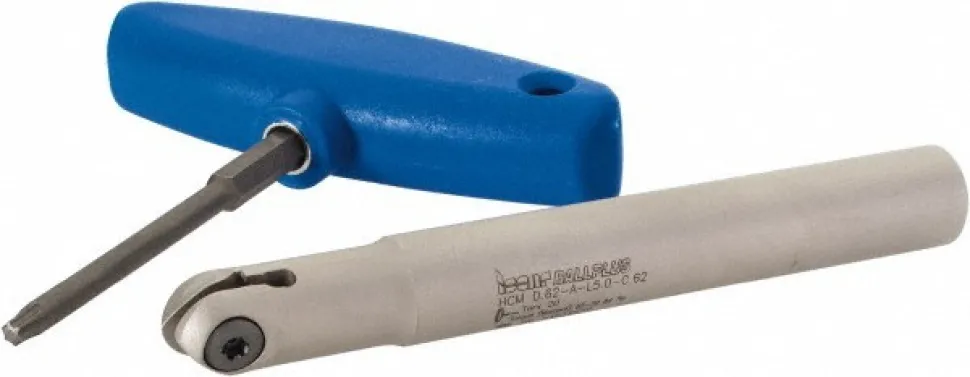

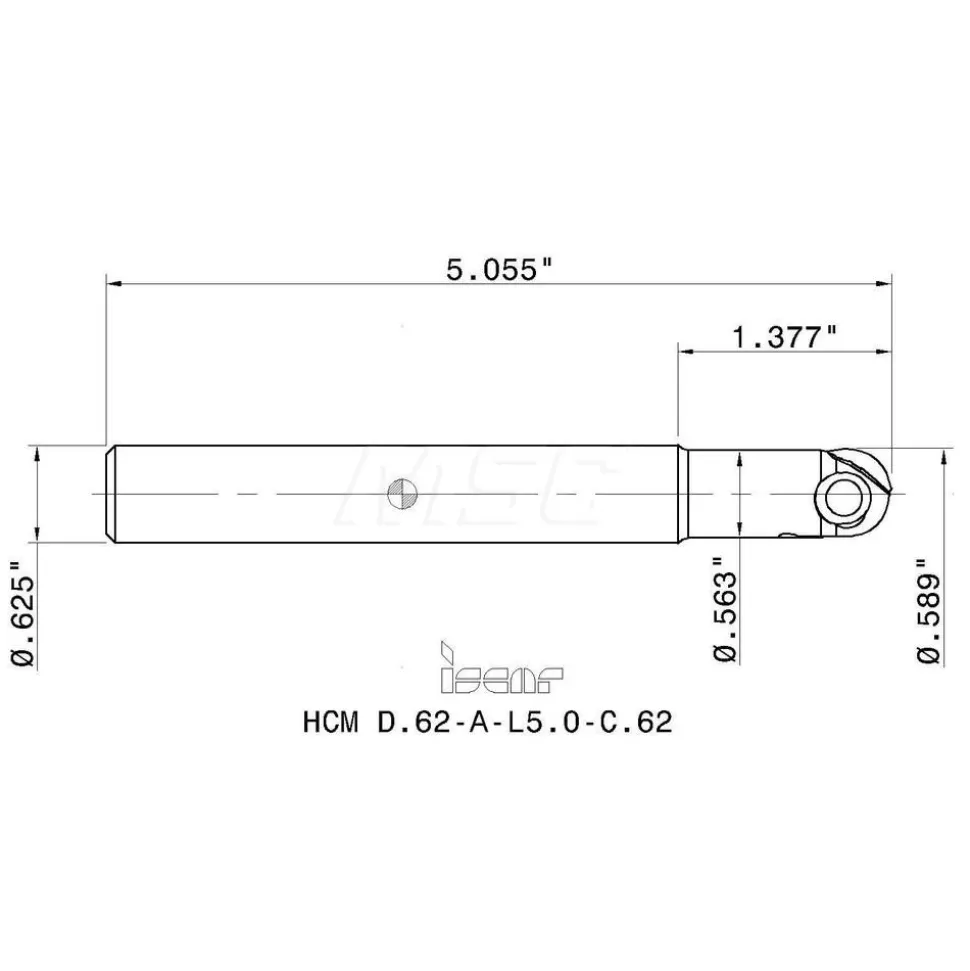

Indexable Ball Nose End Mill: 5/8″ Cut Dia, Solid Carbide, 5.1″ OAL
130,99 $
Specifications
| Cutting Diameter (Decimal Inch): 0.6250 | Tool Material: Solid Carbide |
| Shank Type: Cylindrical | Shank Diameter (Inch): 5/8 |
| Shank Diameter (Inch – 0 Decimals): 0.6250 | Shank Diameter (Decimal Inch): 0.6250 |
| Insert Holding Method: Screw | Compatible Insert Style: HBR D.62; HCR D.62; HBF D.62 |
| Toolholder Style: HCM D.62 | Tapered Neck: No |
| Overall Length (Decimal Inch): 5.1000 | Series: BallPlus |
| Head Length (Decimal Inch): 1.4000 | Tool Application: Milling |
| Standards: ISO 13399 | Weldon Flat: No |
| Neck Diameter (Decimal Inch): 0.5630 | Manufacturers Catalog Number: HCM D.62-A-L5.0-C.62 |
| Cutting Diameter (Inch): 5/8 | Number Of Flutes: 1 |
| Coolant Through: No | Number of Ball Nose Inserts: 1 |
| UNSPSC Code: 27112803 | Country of Origin: Israel |
| Cutting Diameter (Decimal Inch): 0.6250 | |
| Tool Material: Solid Carbide | |
| Shank Type: Cylindrical | |
| Shank Diameter (Inch): 5/8 | |
| Shank Diameter (Inch – 0 Decimals): 0.6250 | |
| Shank Diameter (Decimal Inch): 0.6250 | |
| Insert Holding Method: Screw | |
| Compatible Insert Style: HBR D.62; HCR D.62; HBF D.62 | |
| Toolholder Style: HCM D.62 | |
| Tapered Neck: No | |
| Overall Length (Decimal Inch): 5.1000 | |
| Series: BallPlus | |
| Head Length (Decimal Inch): 1.4000 | |
| Tool Application: Milling | |
| Standards: ISO 13399 | |
| Weldon Flat: No | |
| Neck Diameter (Decimal Inch): 0.5630 | |
| Manufacturers Catalog Number: HCM D.62-A-L5.0-C.62 | |
| Cutting Diameter (Inch): 5/8 | |
| Number Of Flutes: 1 | |
| Coolant Through: No | |
| Number of Ball Nose Inserts: 1 | |
| UNSPSC Code: 27112803 | |
| Country of Origin: Israel |
| MSC# | 07923873 |
| Mfr# | 3103602 |
| Big Book# | 698 |
Be the first to review “Indexable Ball Nose End Mill: 5/8″ Cut Dia, Solid Carbide, 5.1″ OAL”
