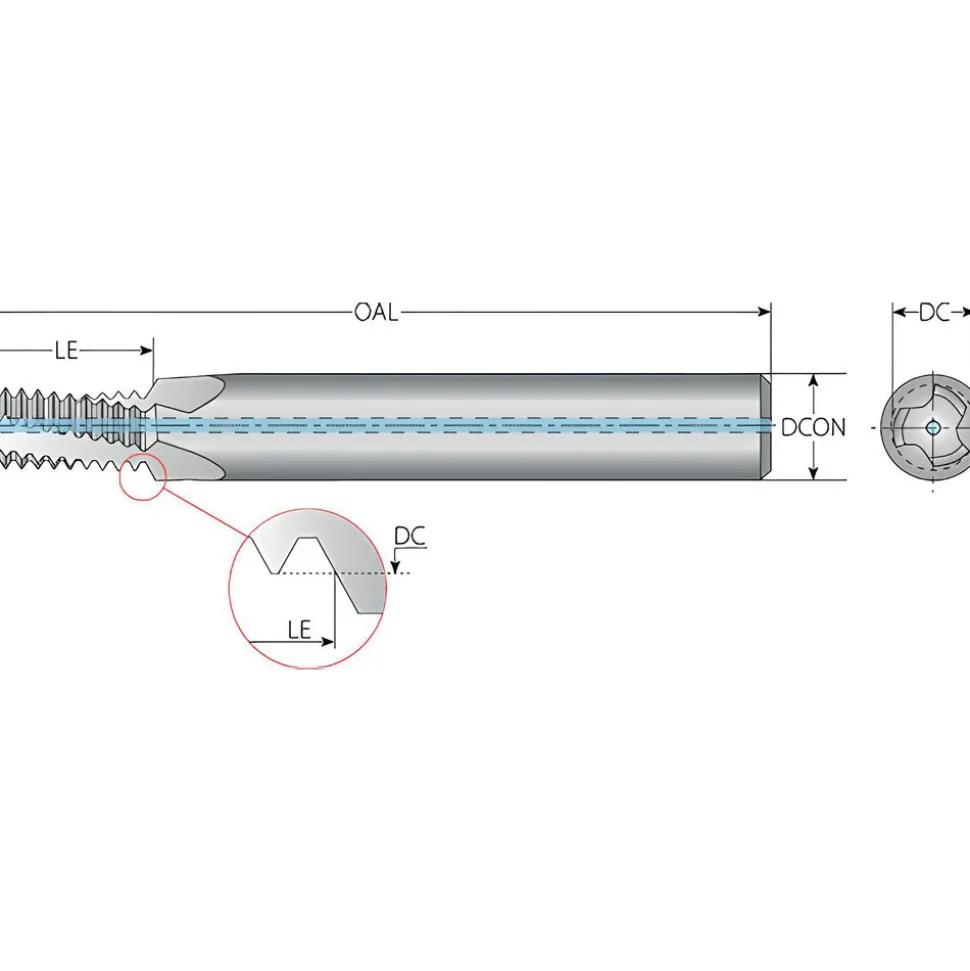

Helical Flute Thread Mill: 3/8-16, Internal, 3 Flute, 0.3125" Shank Dia, Solid Carbide

Helical Flute Thread Mill: 3/8-16, Internal, 3 Flute, 0.3125″ Shank Dia, Solid Carbide

134,89 $

SKU: SKUCYHem0yvZ7 Categories: Shop All Products, Thread Mills, Threading Tag: Vargus Brand: Vargus

Description
Reviews (0)

Specifications

Thread Type: Internal	Thread Size (Inch): 3/8-16
Number Of Flutes: 3	Material: Solid Carbide
Coating/Finish: TiCN	Length Of Cut (Decimal Inch – 4 Decimals): 0.7810
Overall Length (Decimal Inch): 2.4020	Shank Diameter (Decimal Inch): 0.3125
Cutting Diameter (Decimal Inch): 0.3010	Minimum Nominal Diameter (Inch): 3/8
Thread Standard: UNC	Flute Direction: Right Hand
Material Grade: Micrograin	Coolant Through: Yes
Teeth Per Inch: 16	UNSPSC Code: 23242117
Country of Origin: Israel
Thread Type: Internal
Thread Size (Inch): 3/8-16
Number Of Flutes: 3
Material: Solid Carbide
Coating/Finish: TiCN
Length Of Cut (Decimal Inch – 4 Decimals): 0.7810
Overall Length (Decimal Inch): 2.4020
Shank Diameter (Decimal Inch): 0.3125
Cutting Diameter (Decimal Inch): 0.3010
Minimum Nominal Diameter (Inch): 3/8
Thread Standard: UNC
Flute Direction: Right Hand
Material Grade: Micrograin
Coolant Through: Yes
Teeth Per Inch: 16
UNSPSC Code: 23242117
Country of Origin: Israel
