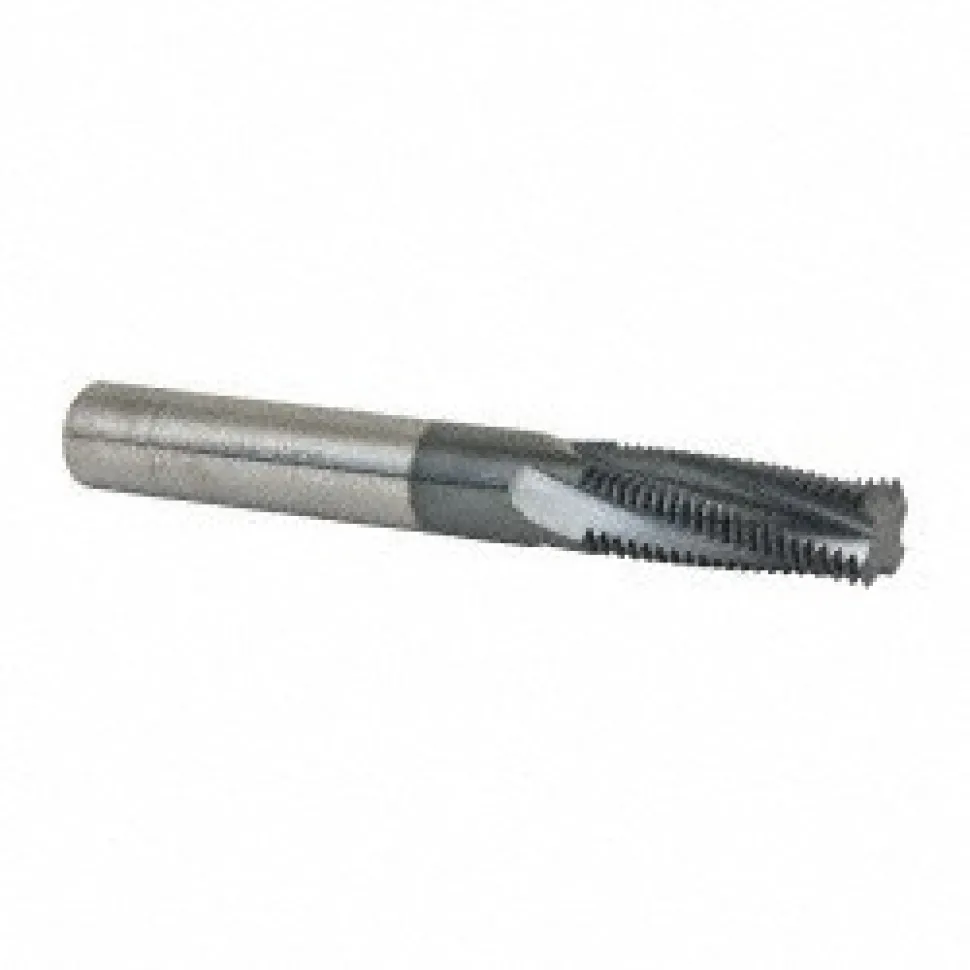

Helical Flute Thread Mill: 3/4-16, Internal, 4 Flute, 0.5000" Shank Dia, Solid Carbide

Helical Flute Thread Mill: 3/4-16, Internal, 4 Flute, 0.5000″ Shank Dia, Solid Carbide

136,89 $

SKU: SKUZOx2n6oFG4 Categories: Shop All Products, Thread Mills, Threading Tag: Scientific Cutting Tools Brand: Scientific Cutting Tools

Description
Reviews (0)

Specifications

Thread Type: Internal	Thread Size (Inch): 3/4-16
Number Of Flutes: 4	Material: Solid Carbide
Coating/Finish: AlTiN+	Length Of Cut (Decimal Inch – 4 Decimals): 1.3380
Overall Length (Decimal Inch): 4.0000	Shank Diameter (Decimal Inch): 0.5000
Cutting Diameter (Decimal Inch): 0.4950	Minimum Nominal Diameter (Inch): 0.7500
Thread Standard: UNF	Thread Mill Type: Long Reach
Flute Direction: Right Hand	Material Grade: Submicron
Coolant Through: No	Teeth Per Inch: 16
UNSPSC Code: 23242117	Country of Origin: UNITED STATES
Thread Type: Internal
Thread Size (Inch): 3/4-16
Number Of Flutes: 4
Material: Solid Carbide
Coating/Finish: AlTiN+
Length Of Cut (Decimal Inch – 4 Decimals): 1.3380
Overall Length (Decimal Inch): 4.0000
Shank Diameter (Decimal Inch): 0.5000
Cutting Diameter (Decimal Inch): 0.4950
Minimum Nominal Diameter (Inch): 0.7500
Thread Standard: UNF
Thread Mill Type: Long Reach
Flute Direction: Right Hand
Material Grade: Submicron
Coolant Through: No
Teeth Per Inch: 16
UNSPSC Code: 23242117
Country of Origin: UNITED STATES
